Therma-Tru COMP 3 Classic-Craft Door Panel Dimensions - Book Size - Manual (Page 11)

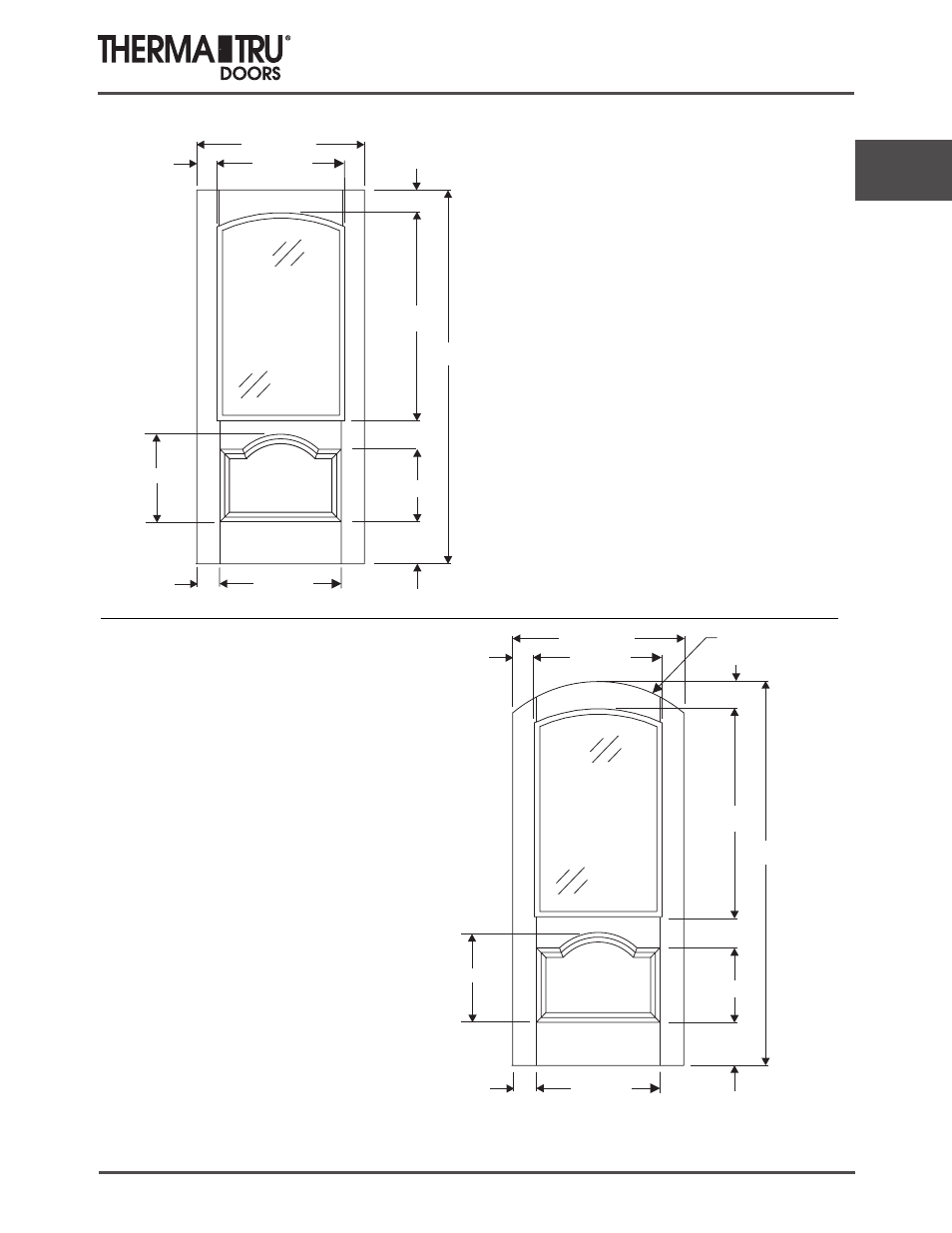

Classic-Craft
Door Panel
Dimensions
Comp 3 2014 (BOOK SIZE) 3.11
6/8 Classic-Craft Canvas Doors
NOTE: 3/0 only.
NOTE: 3/0 only.
4-39/64”
35-15/16”
27-1/16”
44-1/16”
79-1/4”
6-7/16”
4-7/16”
TYP.
15-27/64”
8-23/32”
4-39/64”
35-15/16”
27-1/16”
44-1/16”
79-1/4”
6-7/16”
4-7/16”
TYP.
15-27/64”
R 28-57/64”
8-23/32”
18-19/32”
18-19/32”
26-7/32” 4-55/64”
TYP.
26-7/32” 4-55/64”
TYP.
Wrought Iron Only
Wrought Iron Only
2/3 Arch Lite 1 Panel Scroll Top
(2542A-1W)
(Slab-CCV455NR)
Arched 2/3 Arch Lite
1 Panel Scroll Top
(2542A-1W)
(Slab-CCV455A)
Daylight Opening: 24" x 41"
(965 sq.in.)
Daylight Opening: 24" x 41"
(965 sq.in.)
