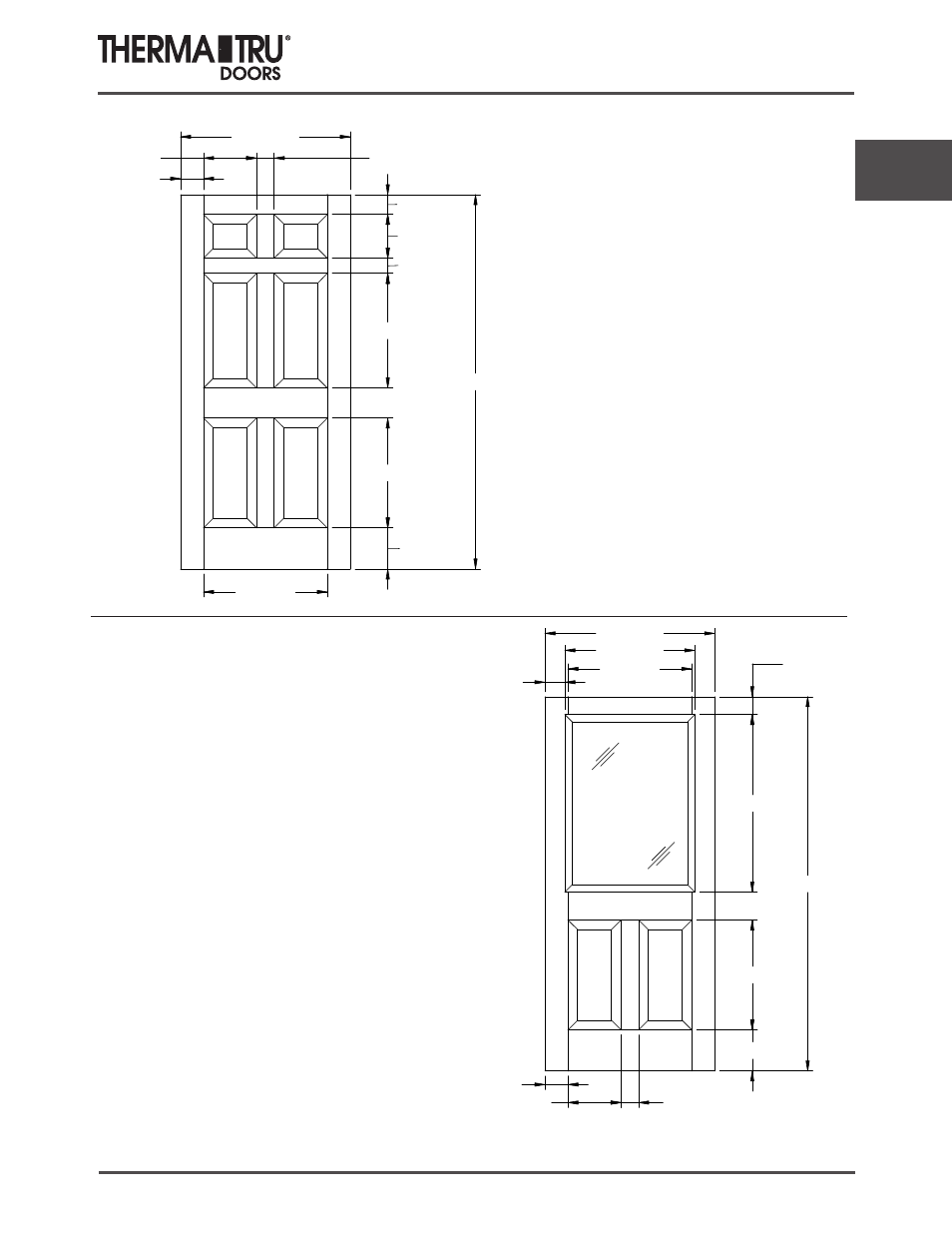

Classic-Craft
Door Panel
Dimensions

Comp 3

2014 (BOOK SIZE)

3.5

6/8 Classic-Craft Canvas Doors

4-7/8"

11-1/4"

3-23/32"

26-7/32"

27-17/32"

35-15/16"

3-23/32"

37-19/32"

23-1/4"

8-23/32"

79-1/4"

Half Lite 2 Panel

(2535)

(Slab-CCV060)

NOTE: 3/0 only.

4-7/32"

Daylight Opening: 24-17/32" x 34-19/32"

(849 sq.in.)

26-7/32"

35-15/16"

4-7/8"

11-1/4"

3-23/32"

79-1/4"

8-23/32"

23-1/4"

24-9/32"

3-7/32"

9-9/32"

4-5/32"

6 Panel

(Slab-CCV060)

(Impact-CCV060H)

NOTE: 3/0 only.
