Classic-Craft
Door Panel
Dimensions

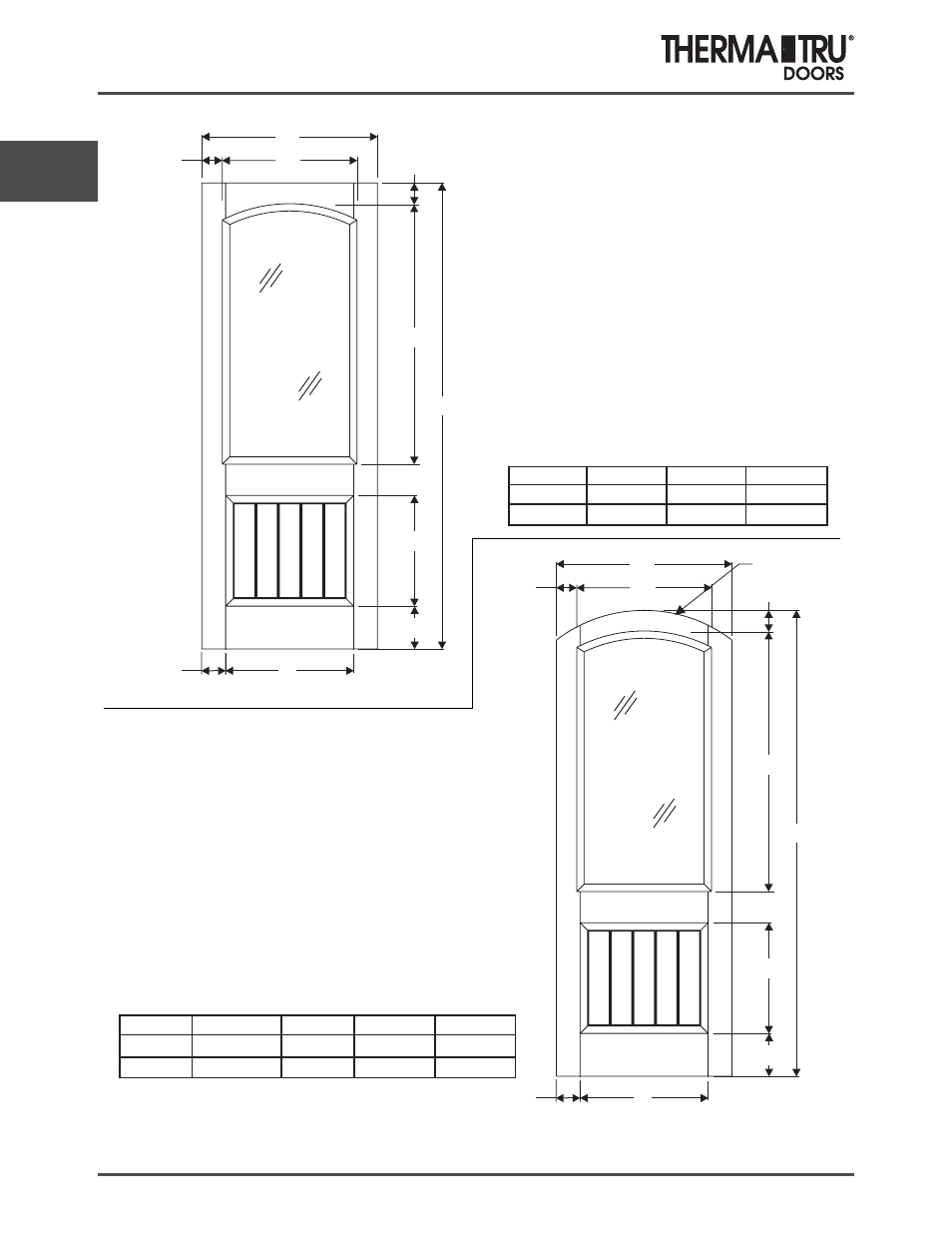

3.66 2014 (BOOK SIZE) Comp 3
8/0 Classic-Craft Rustic Doors
4-1/2”
95-1/4”
8-3/4”
A
4-9/32”
53-1/8”
22-5/8”
6-1/4”
B
4-7/8” C
4-1/2”
95-1/4”
8-3/4”
A
4-9/32”
53-1/8”
22-5/8”
6-1/4”
B
4-7/8” C
D
Size A B C
3/0 35-15/16” 27-3/8” 27-3/16”
3/6 41-15/16” 33-3/8” 32-3/16”
Size A B C D
3/0 35-15/16” 27-3/8” 27-3/16” 28-57/64”
3/6 41-15/16” 33-3/8” 32-3/16” 40-5/32”
8’ 2/3 Arch Lite 1 Panel Plank
(2551A-1W, 3151A-1W)
(Slab-CCR8205NR, CCR8225NR)
(Trim-able-CCR8205, CCR8225)
8’ Arched 2/3 Arch Lite 1 Panel Plank
(2551A-1W, 3151A-1W)
(Trim-able-CCR8205, CCR8225)
(Factory Machined-CCR8205A, CCR8225A)
Daylight Opening:
(2551A-1W)
24-7/16" x 50-5/32"
(1226 sq.in.)
Daylight Opening: 30-3/8" x 50-1/8"
(3151A-1W) (1495 sq.in.)
Daylight Opening:
(2551A-1W)
24-7/16" x 50-5/32"
(1226 sq.in.)
Daylight Opening: 30-3/8" x 50-1/8"
(3151A-1W) (1495 sq.in.)
