Therma-Tru COMP 3 Classic-Craft Door Panel Dimensions - Book Size - Manual (Page 10)

Classic-Craft
Door Panel
Dimensions

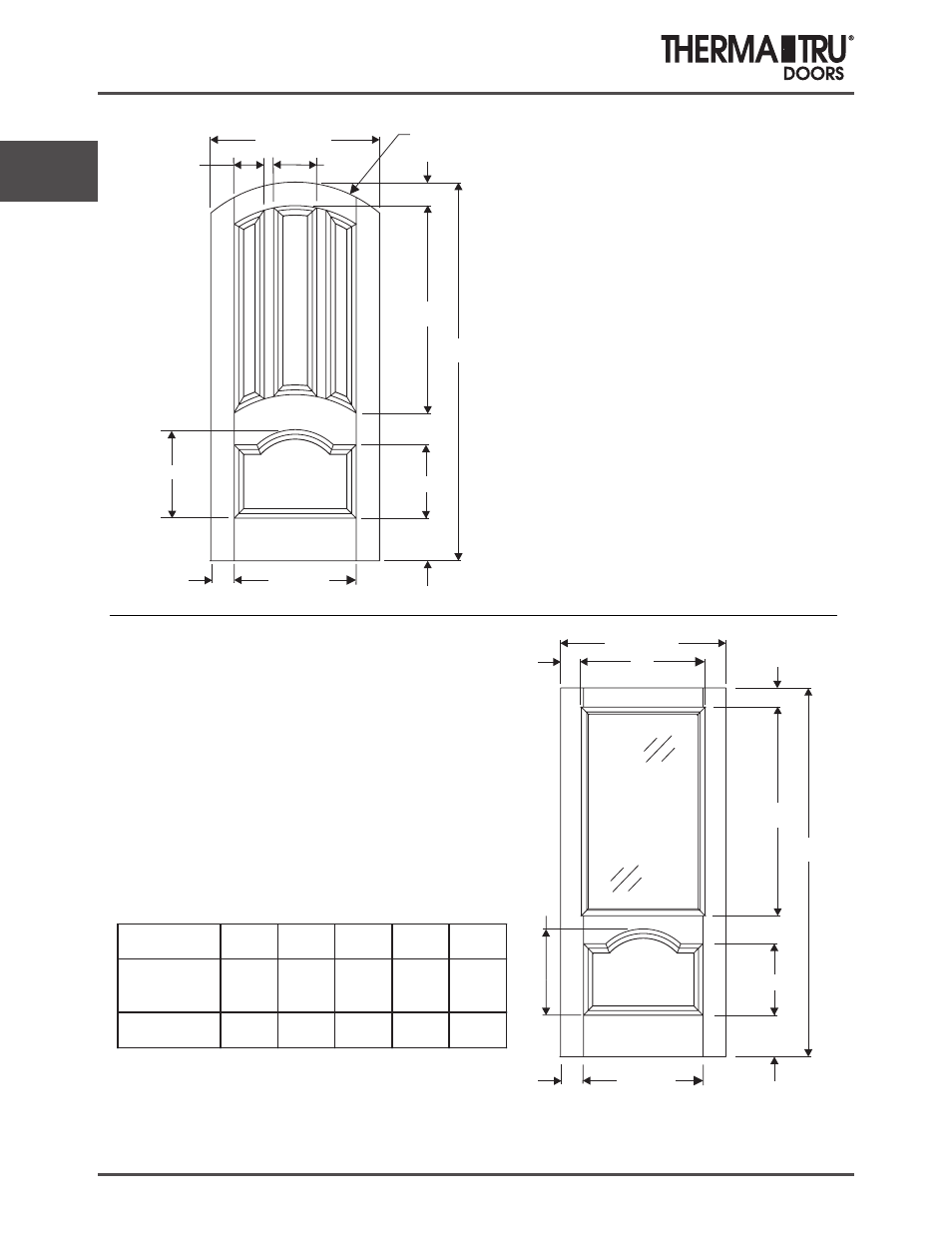

3.10 2014 (BOOK SIZE) Comp 3
6/8 Classic-Craft Canvas Doors
C
35-15/16”
A
D
79-1/4”
E
B
15-27/64”
8-23/32”
NOTE: 3/0 only.
NOTE: 3/0 only.
R 28-57/64”
4-57/64”
35-15/16”
43-9/16”
79-1/4”
6-21/32”
15-27/64”
8-23/32”
LITE
DESCRIPTION A B C D E
NON
WROUGHT-
IRON
27-3/32” 4-27/64” 4-37/64” 44-3/32” 6-14/32”
WROUGHT-
IRON
27-1/16” 4-7/16” 4-41/64” 44-1/16” 6-13/32”
26-7/32” 4-55/64”
TYP.
18-19/32”
18-19/32”
26-7/32” 4-55/64”
TYP.
6-29/64”
TYP.
9-9/32”
T
2/3 Lite 1 Panel Scroll Top
(2542, 2542-1W)
(Slab-CCV455NR)
Arched 4 Panel
Soft Arch
(Slab-CCV455A)
(Impact-CCV455HA)
Daylight Opening:
(Wrought Iron)
24-1/16" x 41-1/16"
(988 sq.in.)
Daylight Opening:
(Non Wrought Iron)
24-3/32" x 41-3/32"
(991 sq.in.)
