Page 4
Classic-Craft
Door Panel
Dimensions
3.4
2014 (BOOK SIZE)
Comp 3
8/0 Classic-Craft American
Style Embossed Doors
NOTE: 3/0 only.
95-1/4”
8-15/32”
59-3/16”
18-3/4”
4-5/32”
4-5/8”
35-15/16”
25”
17-1/2”
3-1/4”
11-1/2”
4-27/32”
P

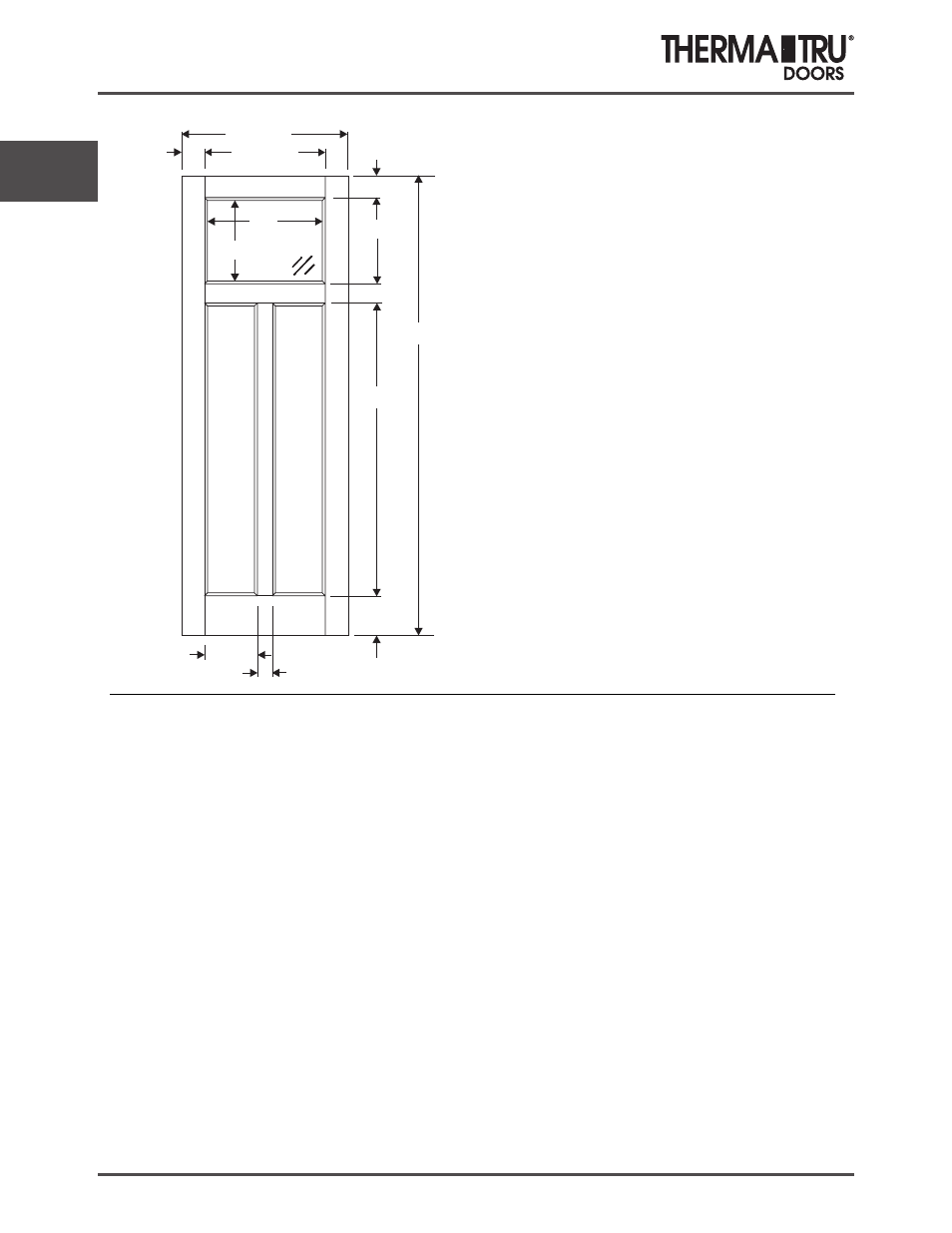

8’ Craftsman Lite 2 Panel
Flush-Glazed
(Slab - CCA8200)
26-1/4”
This space intentionally left blank.
Daylight Opening: 17-1/2" x 25"
(438 sq.in.)
