Therma-Tru COMP 3 Classic-Craft Door Panel Dimensions - Book Size - Manual (Page 36)

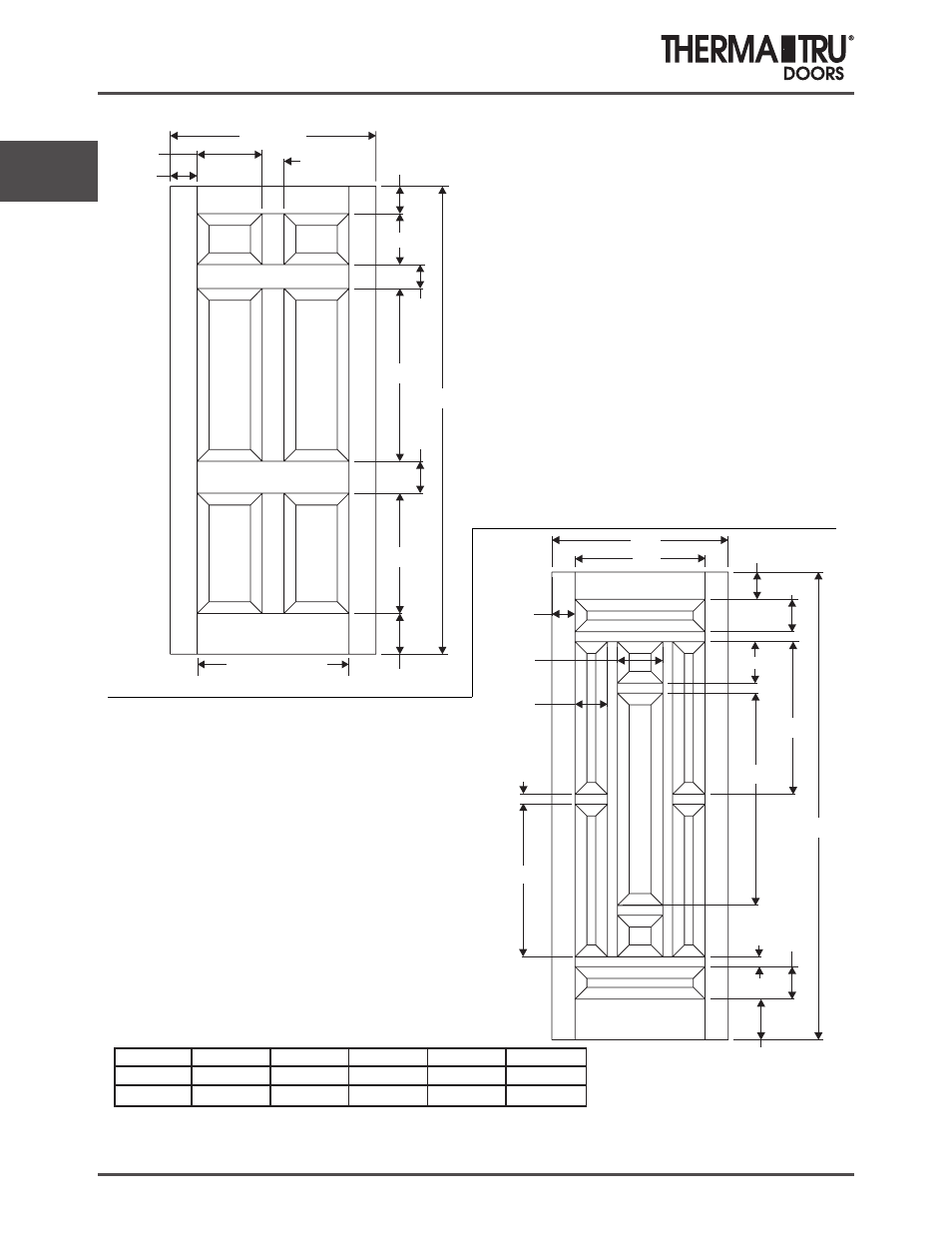

Classic-Craft
Door Panel
Dimensions
3.36 2014 (BOOK SIZE) Comp 3
8/0 Classic-Craft Oak Doors
NOTE: 3/6 only.
41-15/16”
A
5-1/2”
13-1/4”
4-7/16”
C
B
D
E
5-5/32”
10-3/8”
4-7/8”
35-3/16”
6-1/2”
24-1/2”
8-21/32”
95-1/4”
5-17/32”
6-5/8”
8-15/32”
31-3/32”
43-1/4”
2” 6-5/8”
8-9/32”
95-1/4”
2”
31-3/32”
Size A B C D E
3/0 35-15/16” 26-1/2” 4-23/32” 9-1/4” 6-5/8”
3/6 41-15/16” 30-15/16” 5-1/2” 11-1/4” 7-3/4”
8’ 6 Panel
(Slab-CC8060)
(Impact-CC8060H)
8’ 9 Panel
(Slab-CC8090)
(Impact-CC8090H)
30-15/16”
