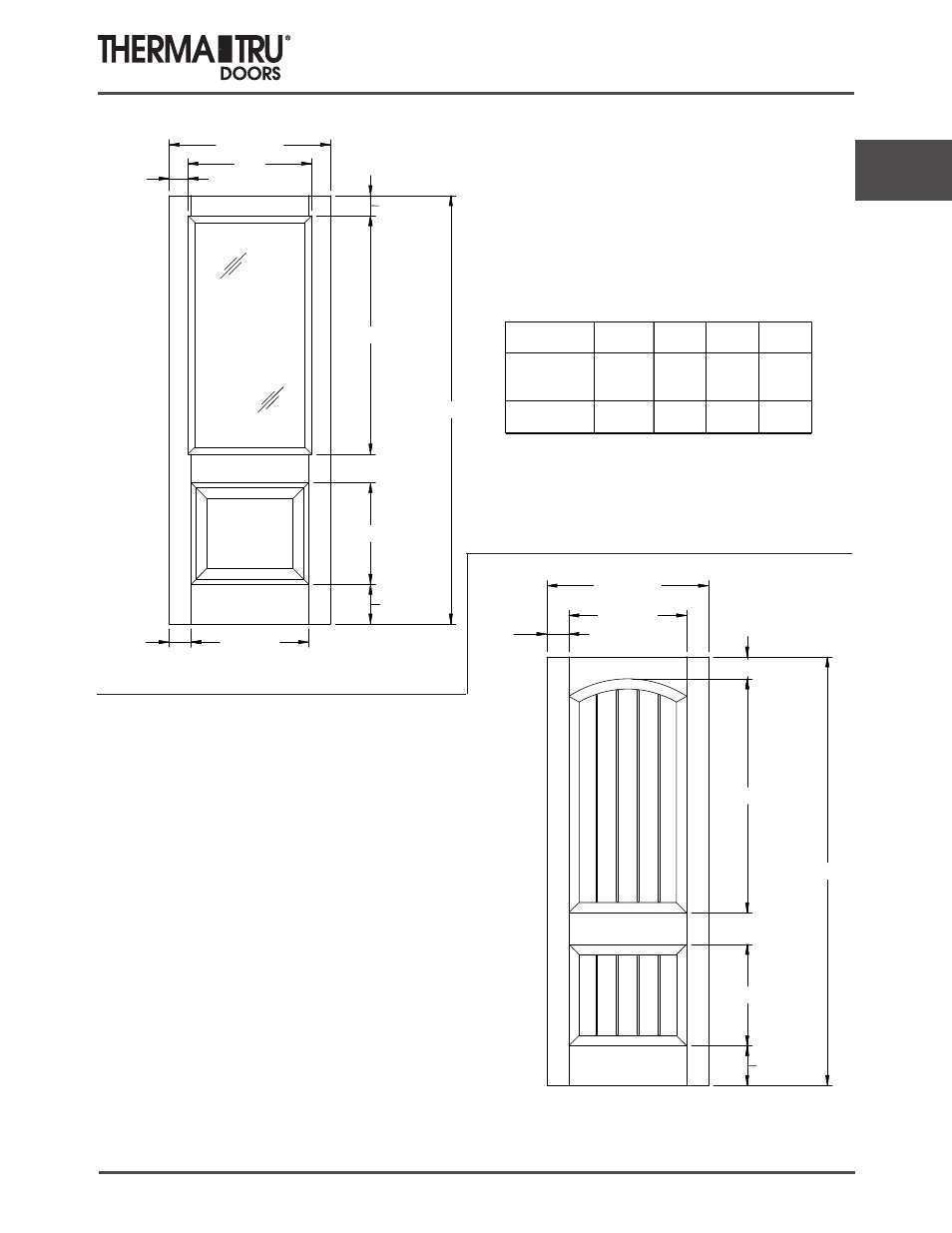

Classic-Craft
Door Panel
Dimensions
Comp 3 2014 (BOOK SIZE) 3.19
8/0 Classic-Craft Canvas Doors
4-7/8" 26-7/32"
35-15/16"
22-19/32"
8-13/16"
95-1/4"
B
A
C
D
8' 2/3 Lite 1 Panel
(2551, 2551-1W)
(Slab-CCV8220)
NOTE: 3/0 only.
LITE
DESCRIPTION A B C D
NON
WROUGHT-
IRON 27-17/32" 4-3/16" 4-7/16" 53-1/32"
WROUGHT-
IRON 27-1/2" 4-7/32" 4-15/32" 53"
Daylight Opening:
(Wrought Iron)
24-1/2" x 50"
(1225 sq.in.)
Daylight Opening:
(Non Wrought Iron)
24-17/32" x 50-1/32"
(1228 sq.in.)
4-7/8"
26-7/32"
35-15/16"
8-13/16"
22-9/16"
52"
4-7/8"
95-1/4" 8' 2 Panel Plank Soft Arch
(Slab-CCV8205NR)
(Trim-able-CCV8205)
(Impact-CCV8205H)
NOTE: 3/0 only.
