Classic-Craft
Door Panel
Dimensions
Comp 3 2014 (BOOK SIZE) 3.21
8/0 Classic-Craft Canvas Doors
26-7/32"
35-15/16"
4-7/8"
8-13/16"
22-9/16"
52"
4-7/8"
R 28-29/32"

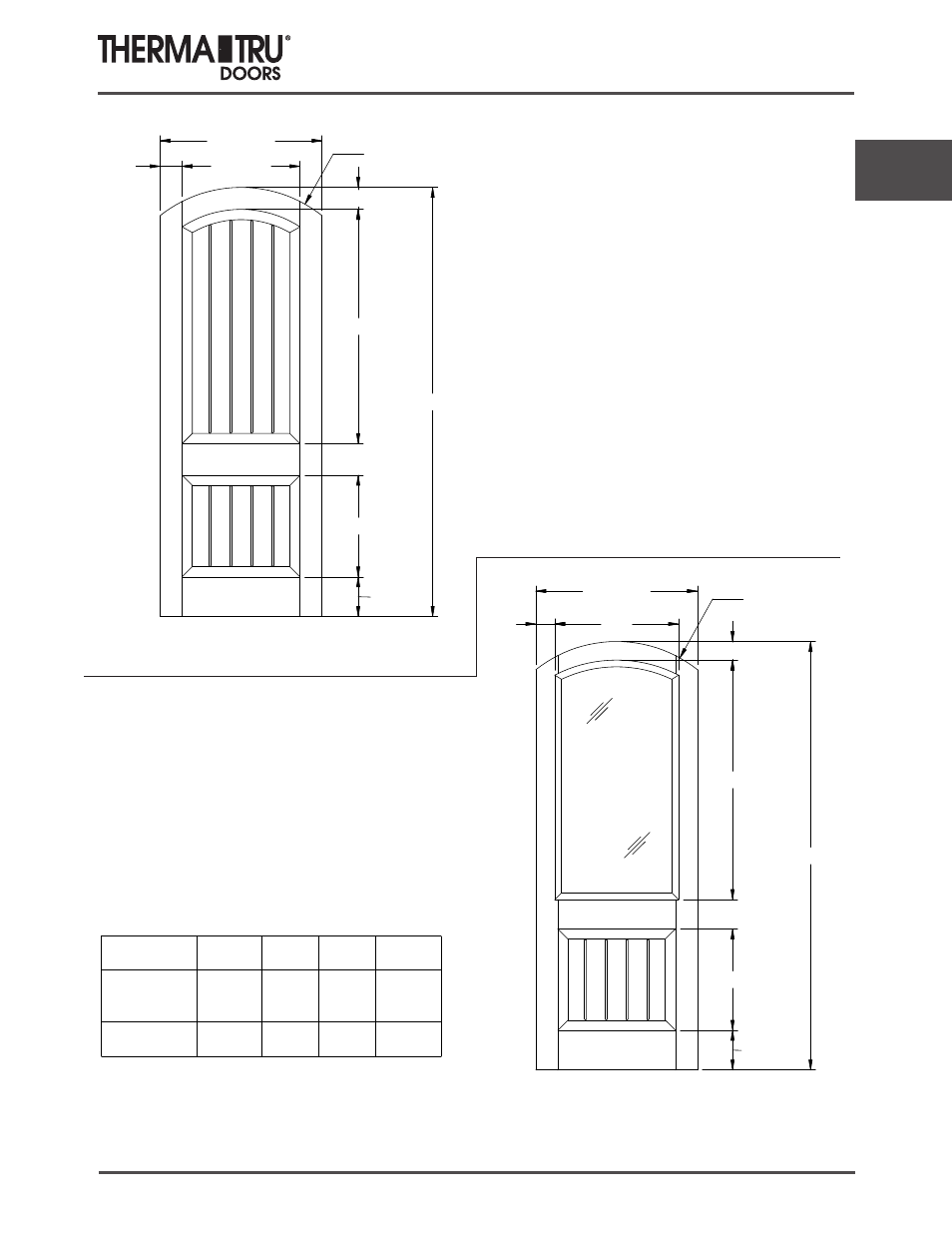

8' Arched 2 Panel Plank Soft Arch
(Trim-able-CCV8205)
(Factory machined-CCV8205A)
(Impact-CCV8205HA)
NOTE: 3/0 only.
95-1/4"
35-15/16"
8-13/16"
22-9/16"
D
95-1/4"
C
8' Arched 2/3 Arch Lite 1 Panel Plank
(2551A, 2551A-1W)
(Trim-able-CCV8205)
(Factory Machined-CCV8205A)
NOTE: 3/0 only.
LITE
DESCRIPTION A B C D
NON
WROUGHT-
IRON 27-17/32" 4-3/16" 4-1/4" 53-1/4"
WROUGHT-
IRON 27-7/16" 4-1/4" 4-5/16" 53-5/32"
B A
R 28-29/32"
Daylight Opening:
(Wrought Iron)
24-7/16" x 50-5/32"
(1226 sq.in.)
Daylight Opening:
(Non Wrought Iron)
24-17/32" x 50-1/4"
(1211 sq.in.)
