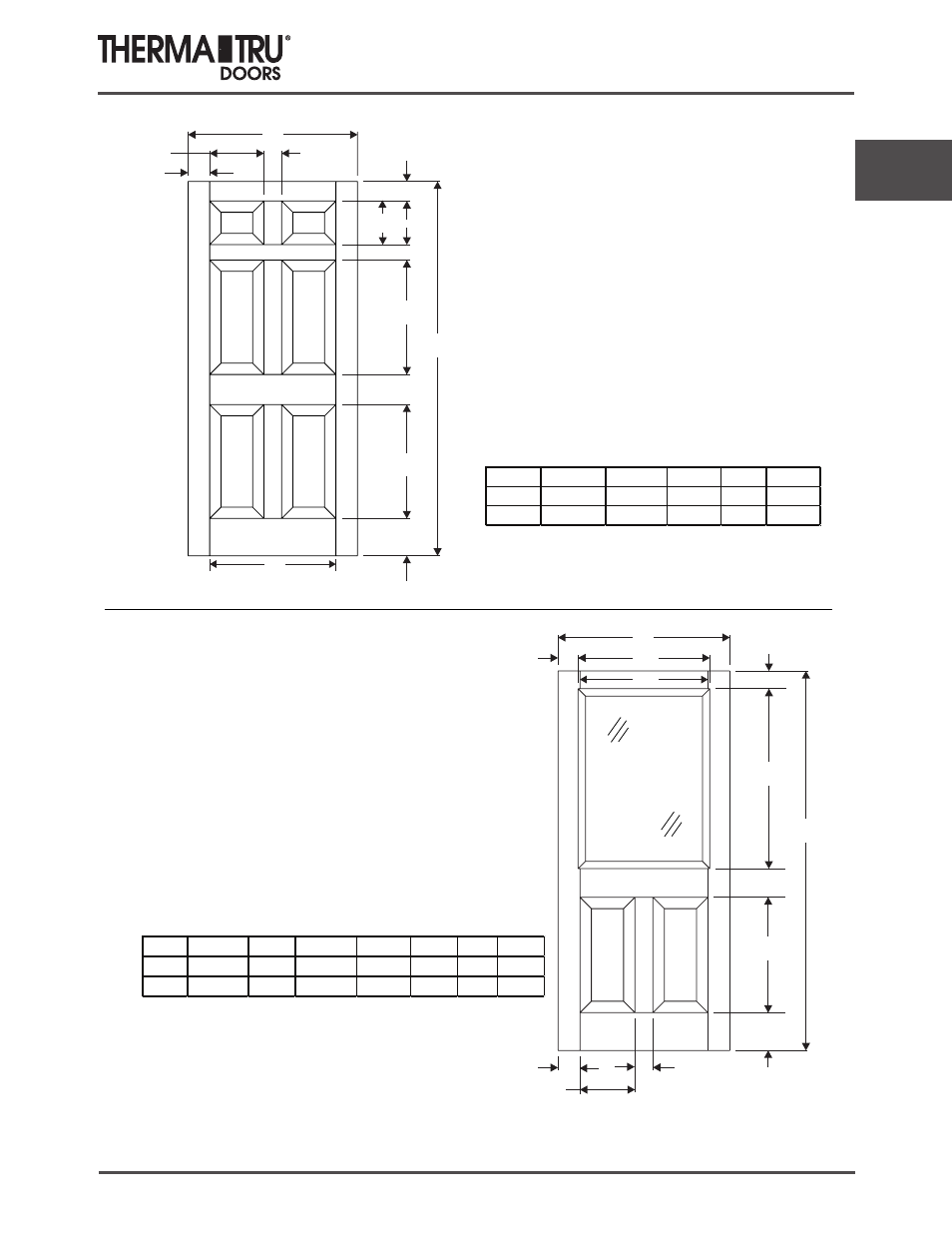

Classic-Craft
Door Panel
Dimensions
Comp 3 2014 (BOOK SIZE) 3.29
6/8 Classic-Craft Oak Doors
3-1/4”
4-1/8”
A
D
9-1/4”
24-1/4”
79-1/4”
6-3/8”
C
B
24-1/8”
7-27/32”
B
A
C
3-23/32”
37-19/32”
79-1/4”
5-31/32”
24-1/8”
7-27/32”
F D
E
6 Panel
(Slab-CC060)
(Impact-CC060H)
Half Lite 2 Panel
(745, 2535 & 745N, 2135)
(Slab-CC060)
E
G
24-17/32" x 34-19/32"
(849 sq.in.)
Daylight Opening:
(745, 2535)
20-9/32" x 34-19/32"
(702 sq.in.)
Daylight Opening:
(745N, 2135)
Size A B C D E F G
2/8 31-15/16" 4-5/16" 23-9/32" 4-23/32" 9-5/8" 3-1/4" 22-1/2"
3/0 35-15/16" 4-3/16" 27-17/32" 4-19/32" 11-1/2" 3-3/4" 26-3/4"
Size A B C D E
2/8 31-15/16" 4-23/32" 9-5/8" 3-1/4" 22-1/2"
3/0 35-15/16" 4-19/32" 11-1/2" 3-3/4" 26-3/4"
