Classic-Craft
Door Panel
Dimensions
Comp 3 2014 (BOOK SIZE) 3.63

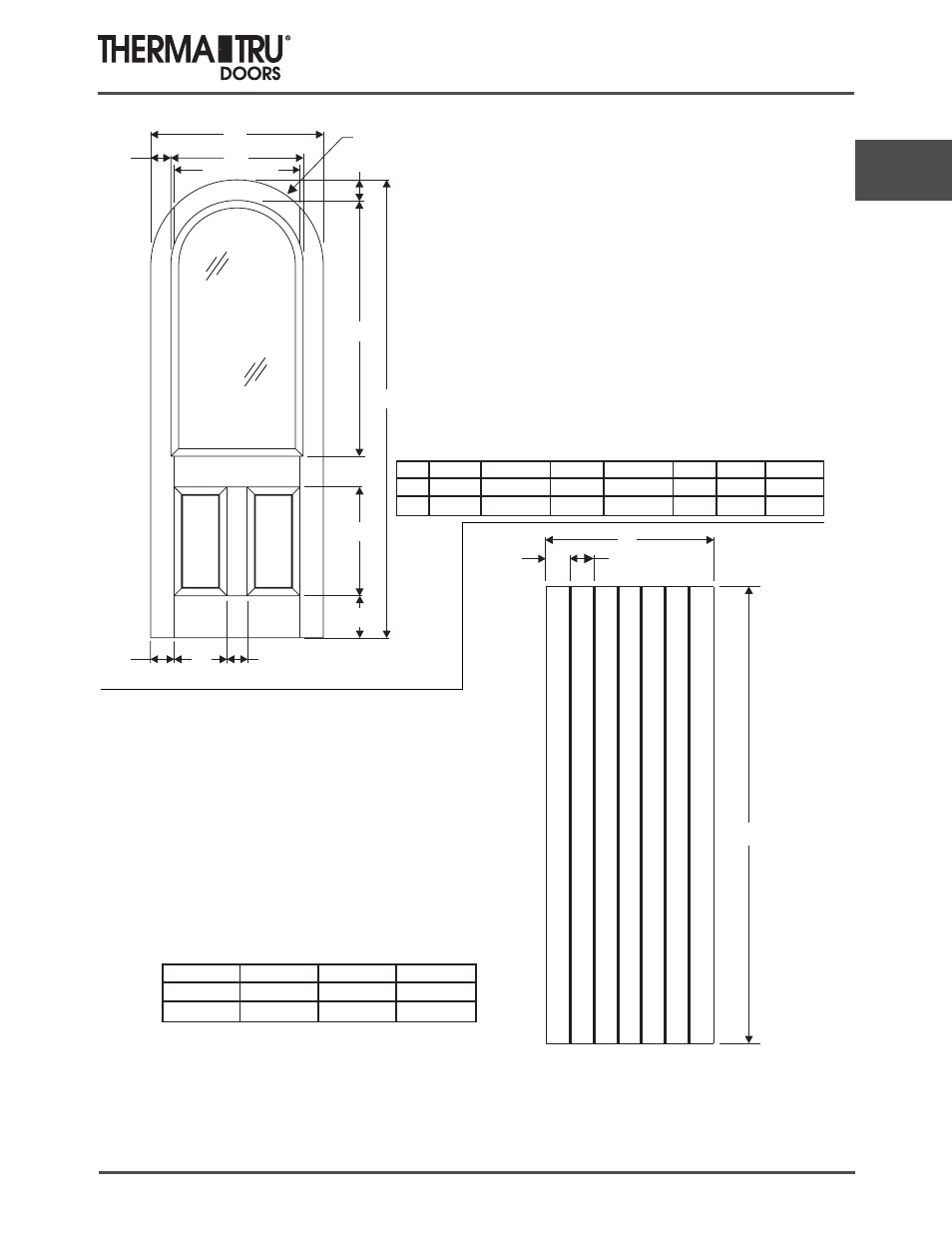

8/0 Classic-Craft Rustic Doors
4-1/2”
95-1/4”
8-3/4”
B
C
E
53-1/8”
22-5/8”
6-1/4”
G
A
F
D
A
C TYP.
95-1/4”
B
NOTE: 3/0 Shown
3/6 has 1 more plank
Size A B C
3/0 35-15/16” 5-1/8” 5-1/8”
3/6 41-15/16” 5-1/4” 5-1/4”
Size A B C D E F G
3/0 27-3/8” 35-15/16” 4-9/32” 17-31/32” 4-7/8” 11” 4-3/16”
3/6 33-3/8” 41-15/16” 7-9/32” 20-31/32” 4-7/8” 13-3/4” 4-11/16”
8’ Radiused 2/3 Radius Lite 2 Panel
(2551R-1W, 3151R-1W)
(Trim-able-CCR8040)
(Factory Machined-CCR8040R)
8’ Full Plank
(Slab-CCR8100NR)
(Trim-able-CCR8100A/R)
26-3/16”
Daylight Opening: 30-3/8" x 50-1/8"
(3151R-1W) (1424 sq.in.)
Daylight Opening: 24-3/8" x 50-1/8"
(2551R-1W) (1158 sq.in.)
