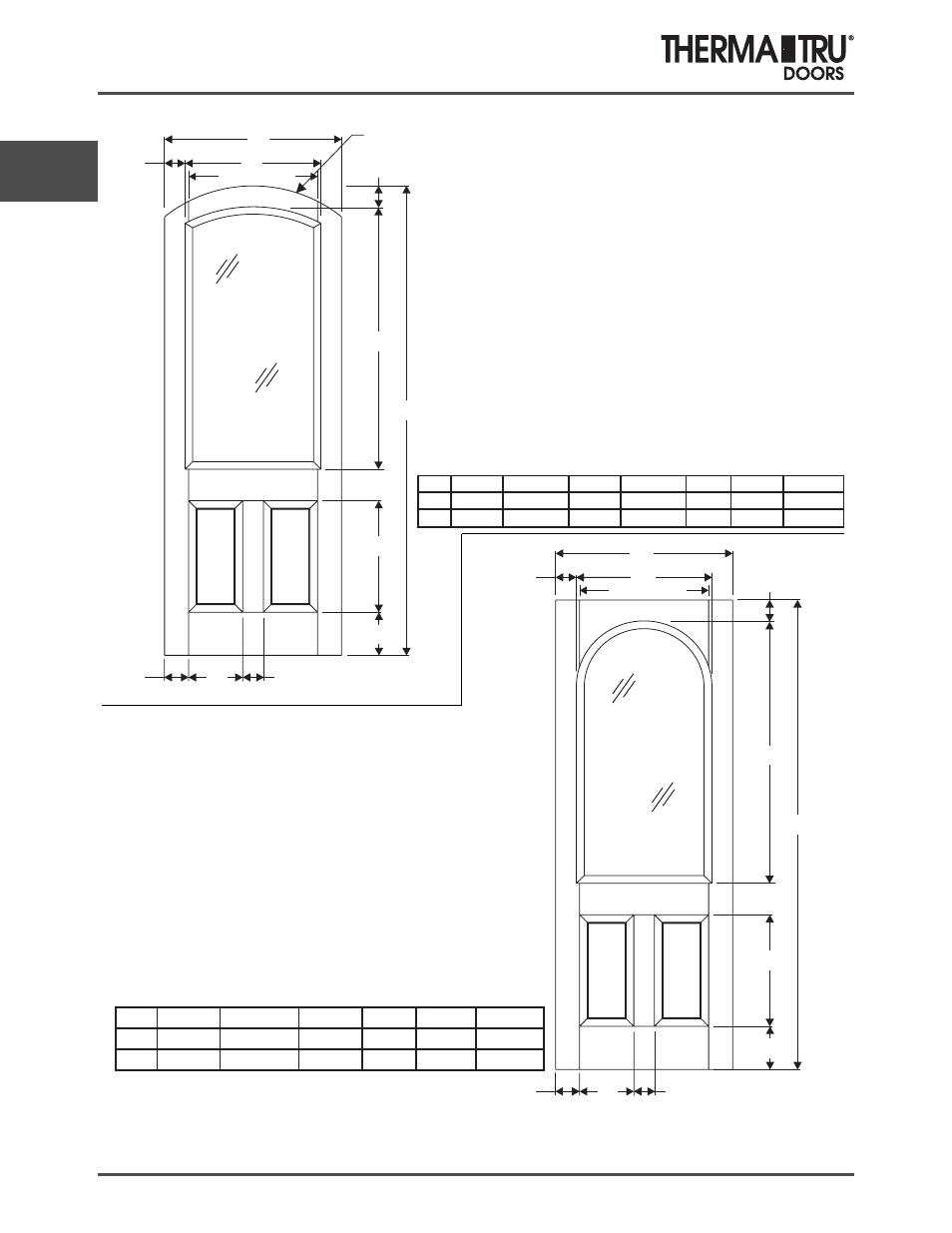

Classic-Craft
Door Panel
Dimensions
3.62 2014 (BOOK SIZE) Comp 3
8/0 Classic-Craft Rustic Doors
4-1/2”
95-1/4”
8-3/4”
B
C
E
53-1/8”
22-5/8”
6-1/4”
G
A
F
D
4-1/2”
95-1/4”
8-3/4”
B
C
D
53-1/8”
22-5/8”
6-1/4”
F
A
E
Size A B C D E F G
3/0 27-3/8” 35-15/16” 4-9/32” 28-57/64” 4-7/8” 11” 4-3/16”
3/6 33-3/8” 41-15/16” 7-9/32” 40-5/32” 4-7/8” 13-3/4” 4-11/16”
Size A B C D E F
3/0 27-3/8” 35-15/16” 4-9/32” 4-7/8” 11” 4-3/16”
3/6 33-3/8” 41-15/16” 7-9/32” 4-7/8” 13-3/4” 4-11/16”
8’ Arched 2/3 Arch Lite 2 Panel
(2551A-1W, 3151A-1W)
(Trim-able-CCR8040)
(Factory Machined-CCR8040A)
8’ 2/3 Radius Lite 2 Panel
(2551R-1W, 3151R-1W)
(Slab-CCR8040NR)
(Trim-able- CCR8040)
26-3/16”
Daylight Opening:
(2551A-1W)
24-7/16" x 50-5/32"
(1226 sq.in.)
Daylight Opening: 30-3/8" x 50-1/8"
(3151A-1W) (1495 sq.in.)
Daylight Opening: 30-3/8" x 50-1/8"
(3151R-1W) (1424 sq.in.)
Daylight Opening: 24-3/8" x 50-1/8"
(2551R-1W) (1158 sq.in.)
