8/0 classic-craft rustic doors – Therma-Tru COMP 3 Classic-Craft Door Panel Dimensions - Book Size User Manual
Page 64
Classic-Craft
Door Panel
Dimensions
3.64
2014 (BOOK SIZE)
Comp 3

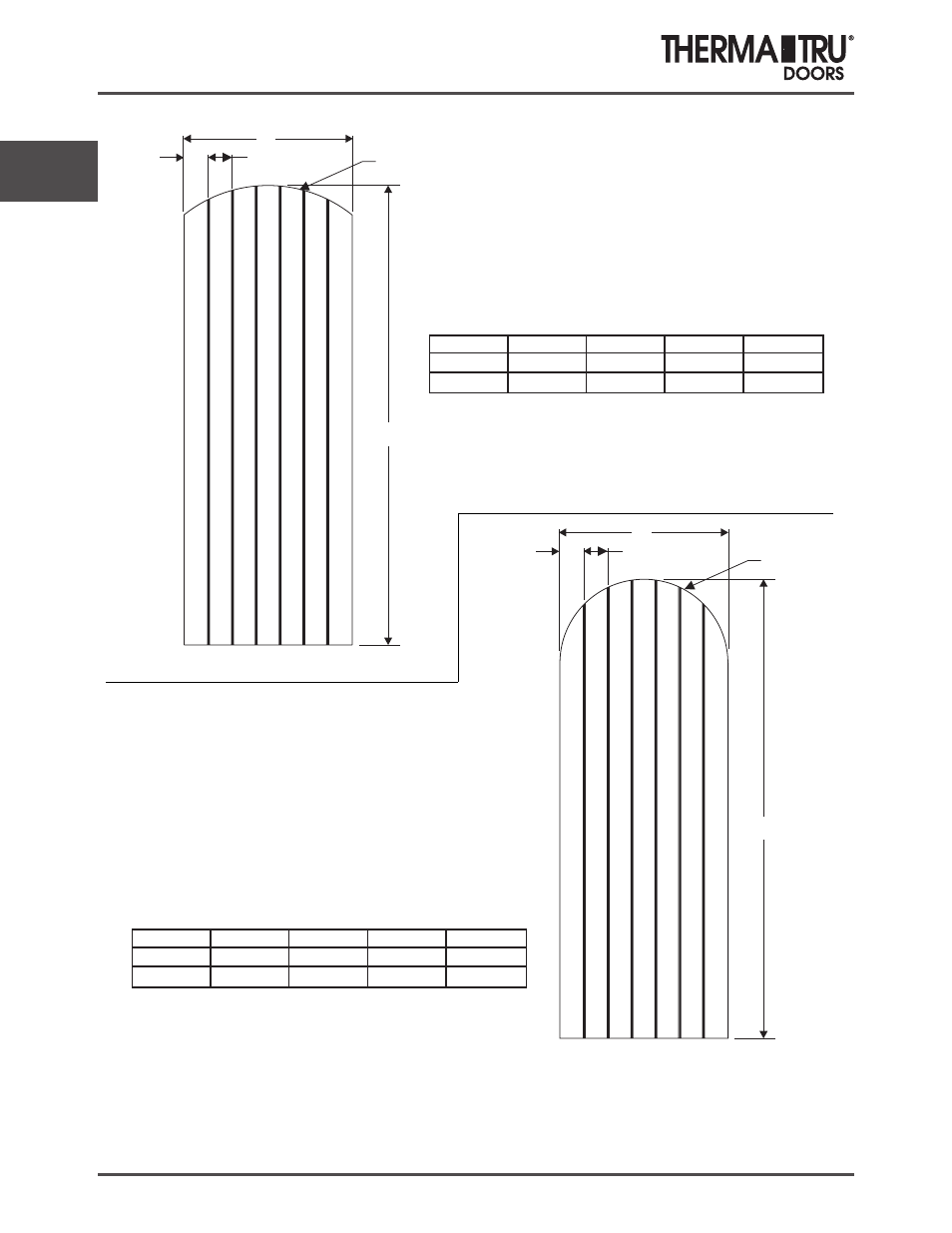

8/0 Classic-Craft Rustic Doors
A
C TYP.
95-1/4”
D
B
NOTE: 3/0 Shown
3/6 has 1 more plank
Size
A
B
C
D
3/0
35-15/16”
5-1/8”
5-1/8”
28-57/64”
3/6
41-15/16”
5-1/4”
5-1/4”
40-5/32”
A
C TYP.
95-1/4”
B
NOTE: 3/0 Shown
3/6 has 1 more plank
D
Size
A
B
C
D
3/0
35-15/16”
5-1/8”
5-1/8”
17-31/32”
3/6
41-15/16”
5-1/4”
5-1/4”
20-31/32”
8’ Arched Full Plank
(Trim-able-CCR8100)
(Factory Machined-CCR8100A)
8’ Radiused Full Plank
(Trim-able-CCR8100)
(Factory Machined-CCR8100R)
