Digital Video Recorder User Manual

52

Delete: Select an unlocked image,

click “Delete” button to delete this image.

Save / Save All: Save the current image / all images to the USB disk and other

removable storage devices.

Step 4: Double click the image to playback recordings from when it was captured.

5.2 Backup

This unit supports backup DVR data files by USB disk through the USB port. User can

also remotely backup data by IE browser via internet.

Step 1: Insert a USB disk on the DVR. Enter into Main MenuBackup; refer to Fig

5-6:

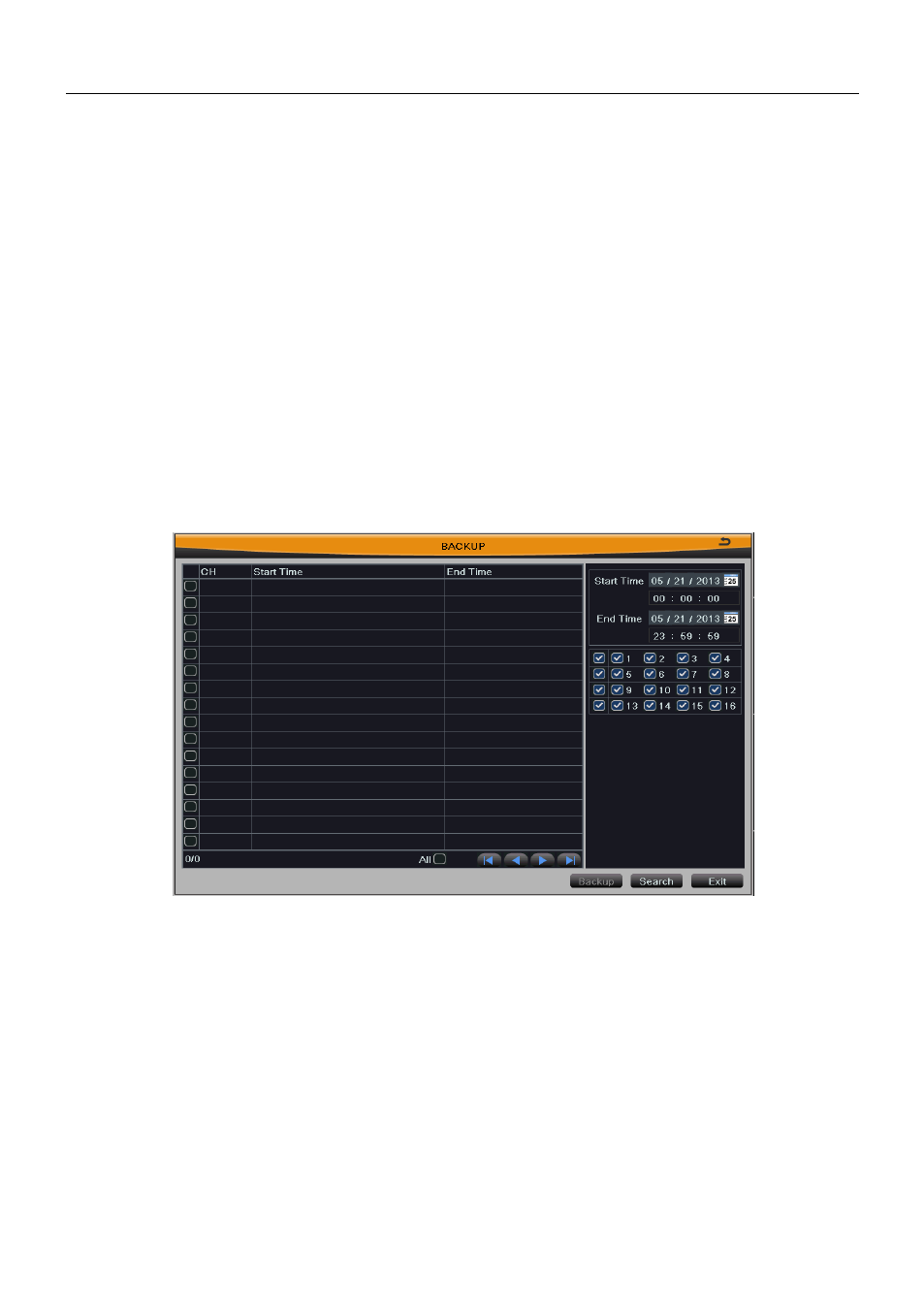

Fig 5-6 backup configuration

Step 2: Select the channels which need to backup data and the start & end time.

Press Search button, the searched data will be displayed in the data backup list.

Step 3: Select any

data file or tick off “All” to select all data files, click “Backup” button

to pop up the backup information dialog box.

Step 4: Check the information of backup files, including storage type, save file type,

etc. Click

“Start” button to start backup.

Note: When the resolution of monitor is VGA800*600, the data backup interface

will appear a hide button, click it to expand the whole interface.
