Digital Video Recorder User Manual
31

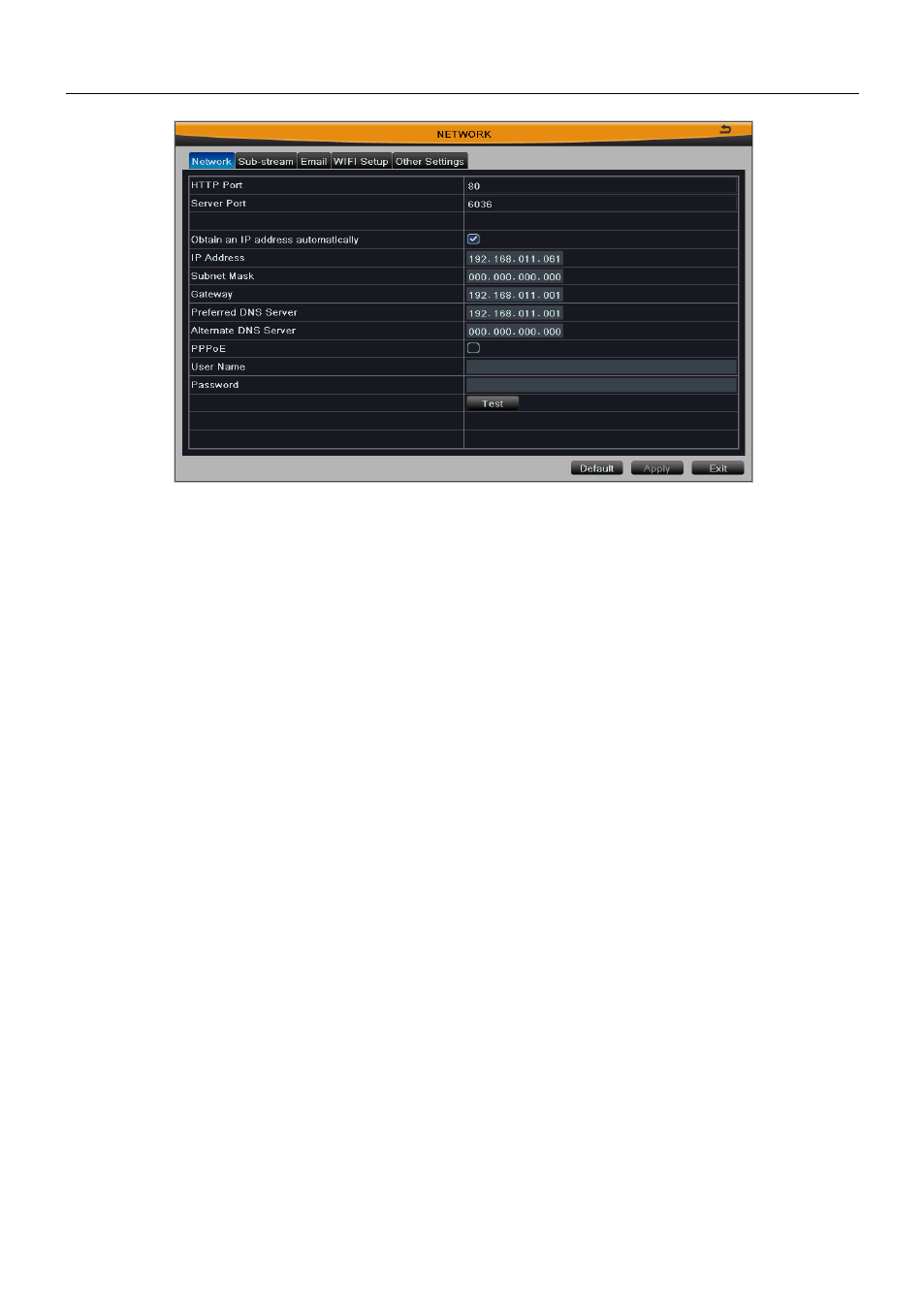

Fig 4-34 network configuration-network
Note: You may want to use a different port than the default HTTP port 80. If so,
you need to configure your DVR to use the port you want. After configured,
remember that you have to specify its port number in the URL (e.g. if you select
port 88, you access it using http://192.168.1.10:88).
Click “Default” button to
r
estore the default setting; click “Apply” button to save the
setting; click “Exit” button to exit current interface.
4.7.2 Sub-stream
The interface of network sub-stream configure is shown in Fig 4-35. Select the
sub-stream parameters of each channel according to the following table.
T
ick off “all” and then do relevant setup, user can set all channels with same
parameters.
Click “Default” button to
rest
ore the default setting; click “Apply” button to save the
setting; click “Exit” button to exit current interface.
Note: When you select resolution and fps, the system will display free CIF
frame rate.
