Digital Video Recorder User Manual

11

All: Select

“all” and then do relevant setup, user can set all channels with same

parameters.

Live Rec Status: In upper left corner of the screen will appear a status icon when

manual or triggered recording is active.

Click “Default” button to

r

estore the default setting; click “Apply” button to save the

setting; click “Exit” button to exit current interface.

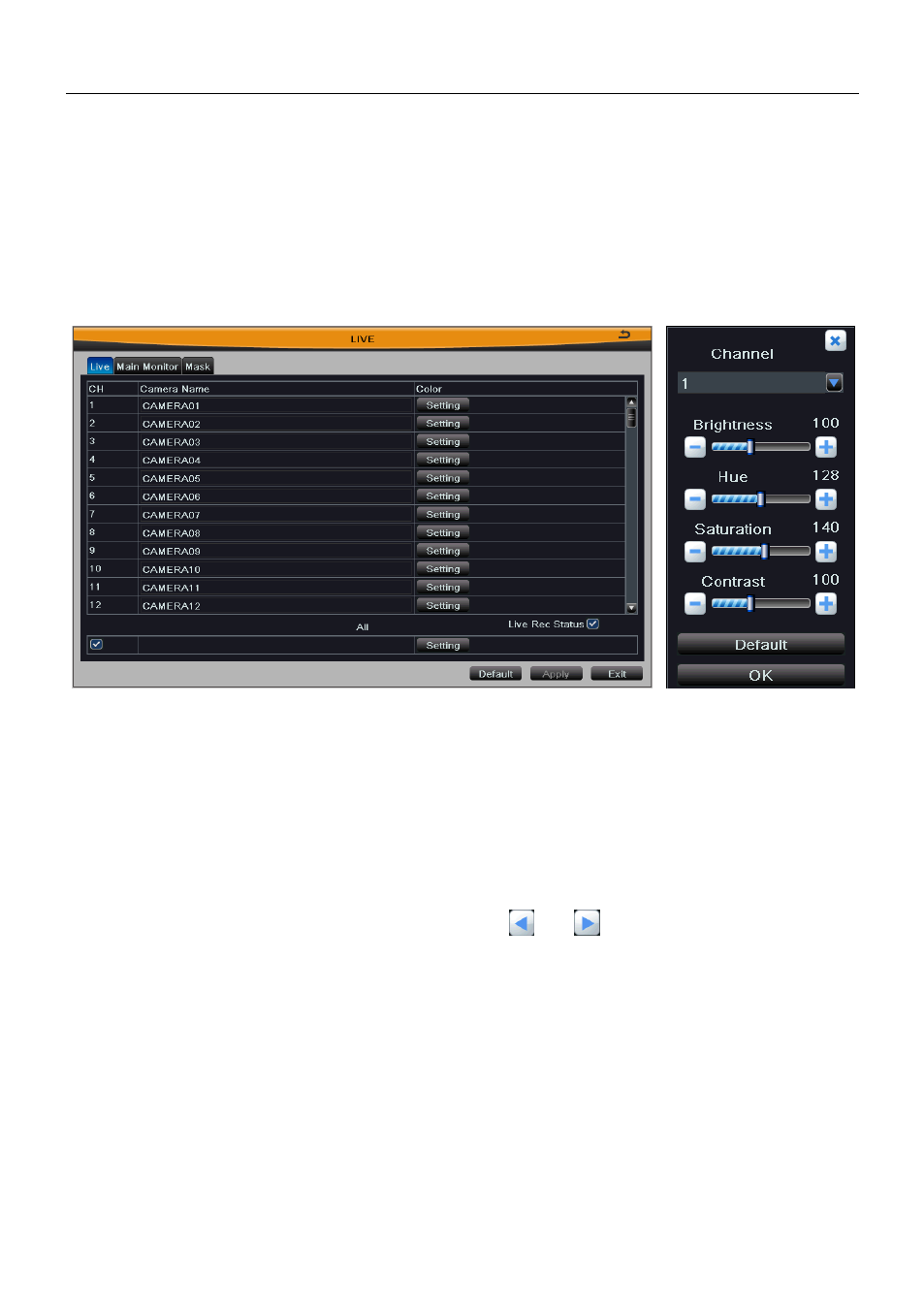

Fig 4-7 live configuration-live Fig 4-8 live-color adjustment

4.3.2 Main Monitor

Enter into Main MenuSetupLiveMain Monitor; refer to Fig 4-9:

Select the display mode (synchronize with configured device); set the channel

combination of current picture group, click

or

button to set the previous/

latter channel groups of dwell picture; set dwell time: the time interval for a certain

dwell picture display switching to next dwell picture display.
