Digital Video Recorder User Manual
88
Name: The name of equipment, which can help you identify different devices, for
examples, you can type the names based on the location of the equipment. The name
will be showed on the topside title bar of display interface.
Address: DVR IP address (must be an Internet address) or DDNS.
Port: It means mobile phone port, and you can acquire port number in the setting
information of the device. Please use the fixed port: 554 here.
User ID: The user name of terminal device.
Password: The password of terminal device, match with user name.
Max Channel: The channels of your DVR supported, 32 channels max.
After editing, please click “Save” to save the information. Click “Back”, turn back
to “Device List”, you will see the name, channels, address, etc, like Fig 7-26 as
below:

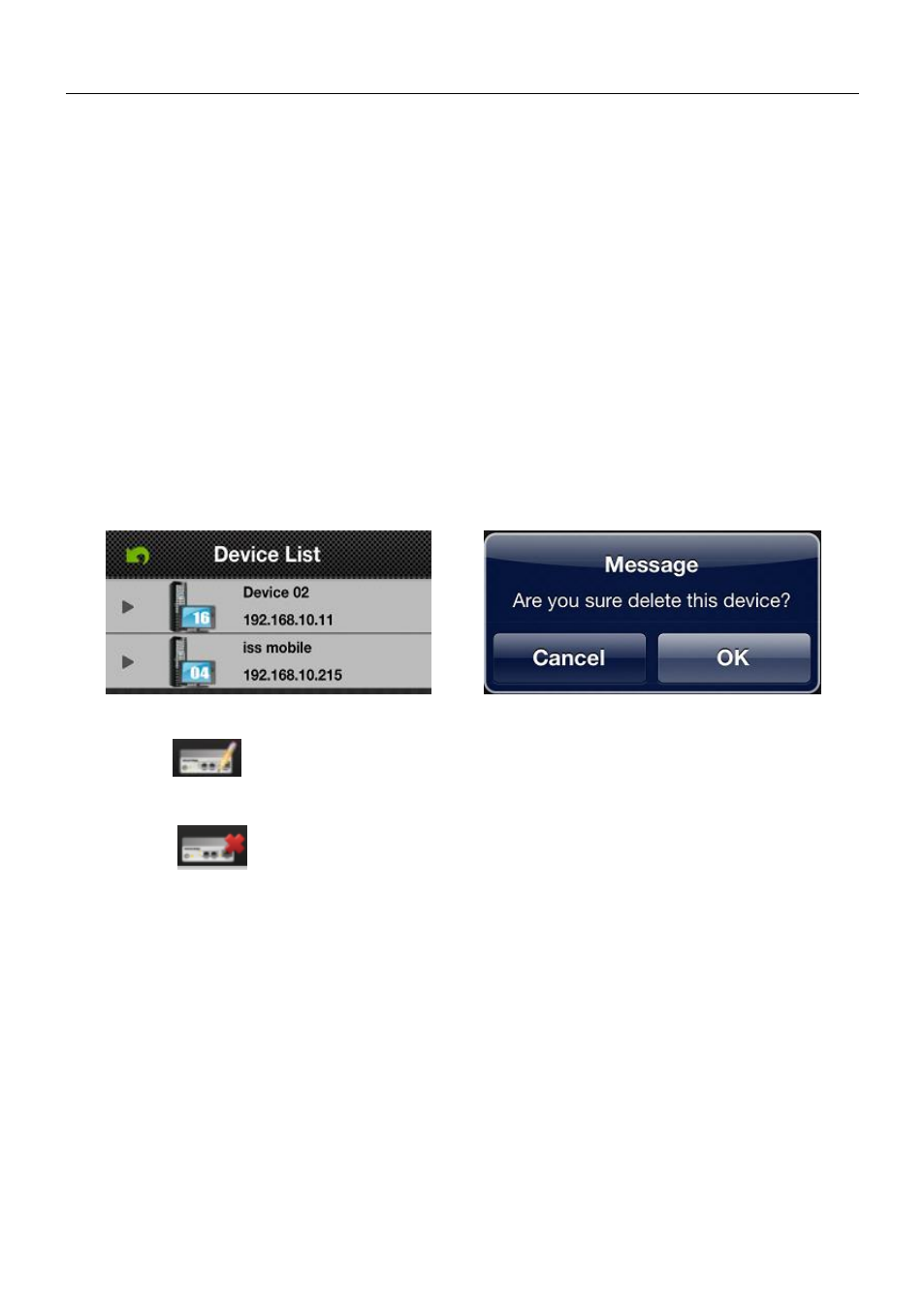

Fig 7-26 Fig 7-27
 Click “ ” and Device to edit setting information. For example, click “device 66”
in “Device List”, you could modify the settings of “device 66”.
 Click “ ” to delete the selected device. For example, click “device 64” in
“Device List”, will show notice like Fig 7-27, select “OK”, and delete “device 64”.
7.6.4 Switch Channel

Select the numbers showed in Area 2 in Figure 7-28 to switch channels ; select
Area 3 to switch channel-group, and then select the numbers in this channel-group to
switch the channels.
 Switch the channels within different devices:
If you want to switch to the channels on other devices, steps as below:
