Digital Video Recorder User Manual

6

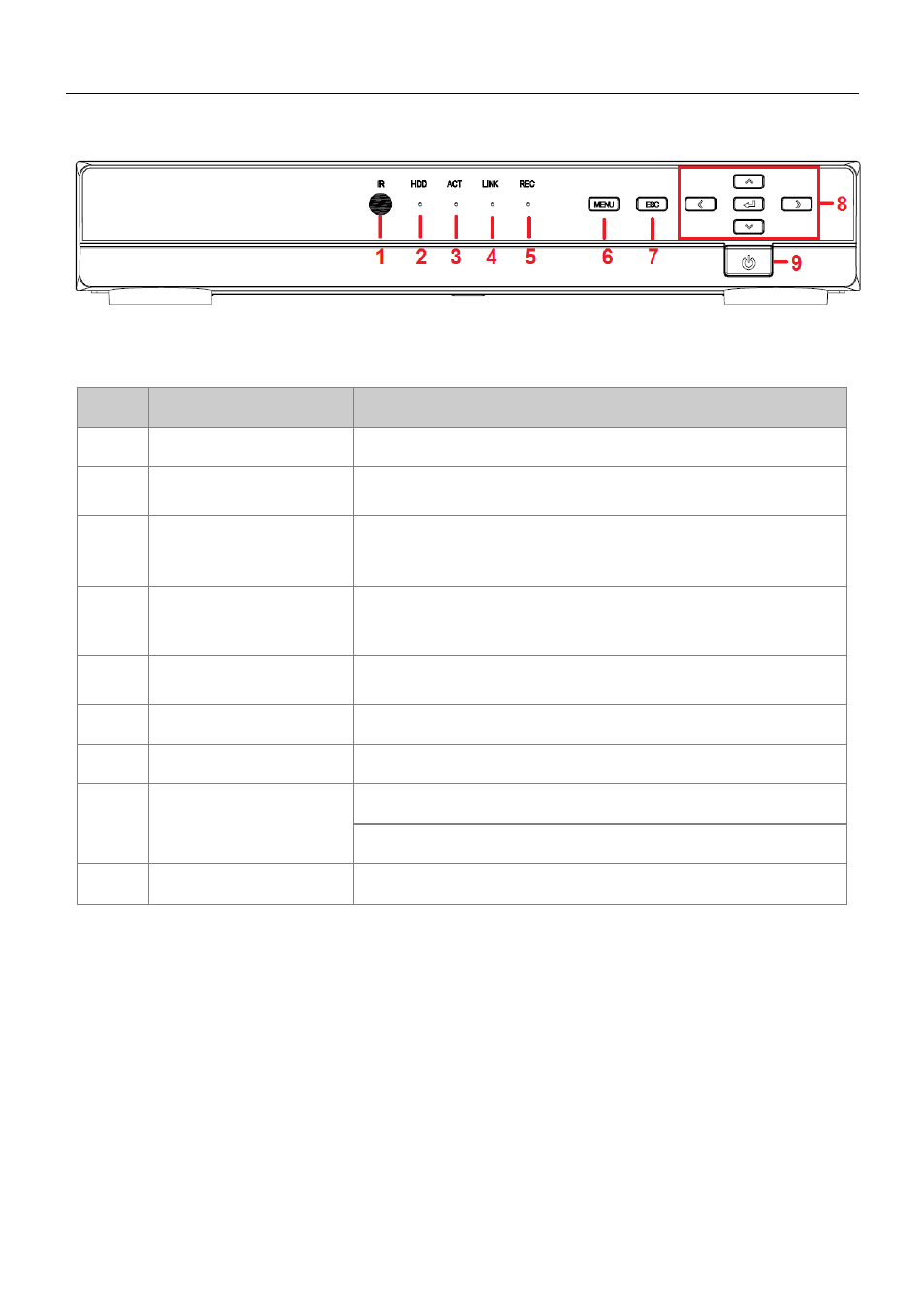

The descriptions of front panel interface are shown as follows:

Fig 0-2 Front Panel

Item

Name

Description

1

IR

Receive the signal of remote controller.

2

HDD

Hard disk status indicator.
When HDD is writing or reading, the light is white.

3

ACT

Network data indicator.
When exchanging data in the network, the light is
white.

4

LINK

Network connection indicator.
When the network connection is successful, the light
is white.

5

REC

Recording status indicator.
When recording, the light is white.

6

MENU

Enter menu mode.

7

ESC

Return to the previous menu or interface.

8

Direction and Enter

Direction keys: change direction to select items.

Enter key: confirm selection.

9

Power

Power on/off the DVR.

2.4 Rear Panel Description

Note: The rear panel descriptions are only for reference; please make the object

as the standard.

The descriptions of rear panel interface are shown as follows:
