Talos Security DR08 DVR Manual - Manual (Page 45)

Digital Video Recorder User Manual
30

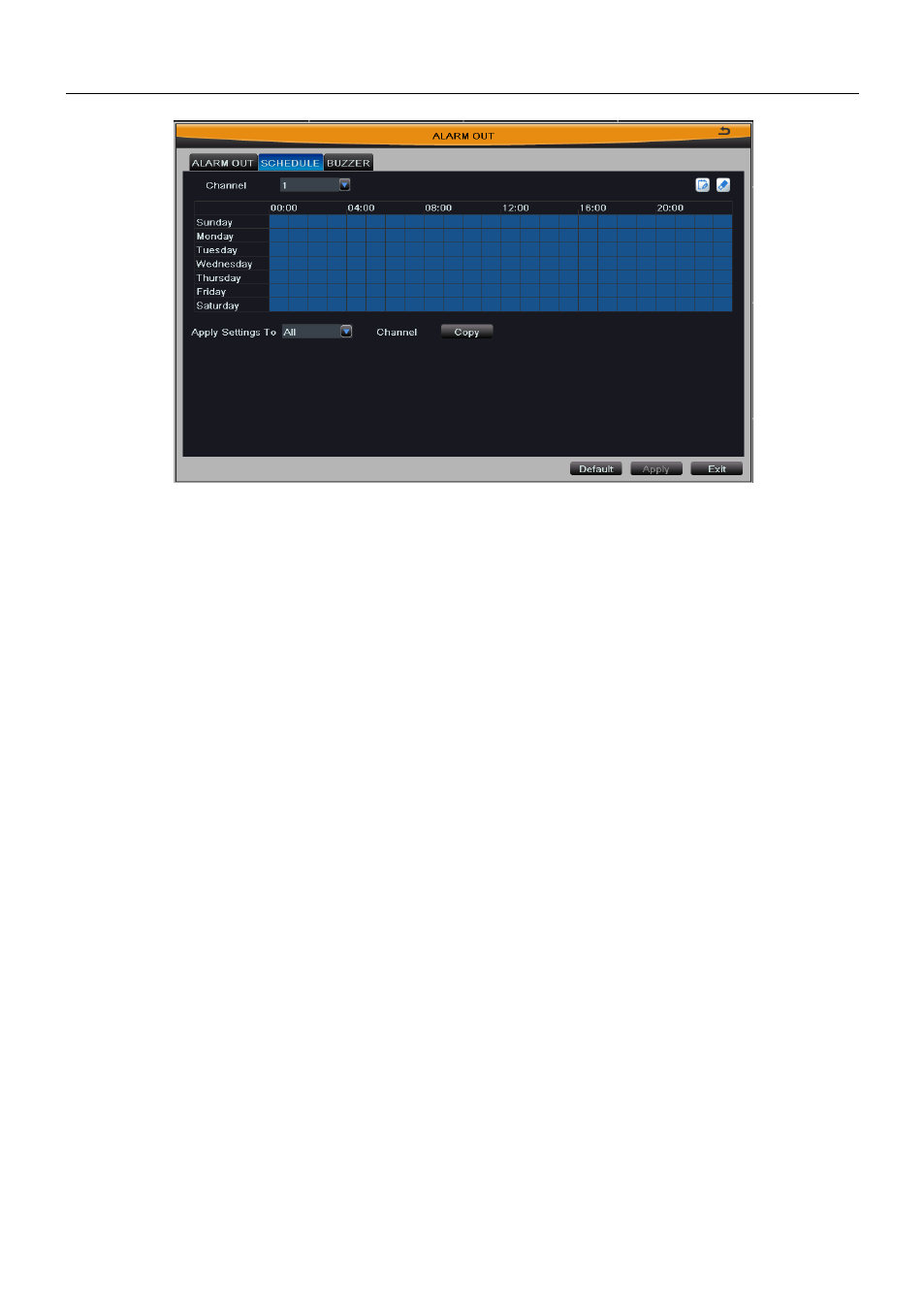

Fig4-33 alarm configuration-schedule
Select
“Buzzer” to turn on the switch of alarm sound, set buzzer alarm hold time. It will
trigger the sound alarm when alarm is triggered.
4.7 Network Configuration
Enter into Main MenuSetupNetwork. Network configuration includes five
submenus: network, sub-stream, Email, WIFI setup and other settings.
4.7.1 Network
Refer to Fig4-34; user can set the device
’s HTTP port and server port.
If DHCP
function of router is enabled, selecting “Obtain an IP address automatically” will
automatically obtain IP address, subnet mask and gateway from the router.
Using DDNS function outside this area needs to set the address of DNS server as
their local DNS address. Enable PPPoE dial-up function, user needs to enter the user
name and password of ADSL dial-up obtained from the internet service provider. Click
“Test” button to test the effectiveness of the relevant information.
