Instruction

Sheet

INSTALLATION INSTRUCTIONS

TSC-30

1.) ADJUST YOKE SO THAT LAMP IS PERPENDICULAR TO THE FLOOR WHEN THE

TRIM IS INSTALLED IN THE HOUSING.

2.) LOCK THE YOKE IN PLACE BY TIGHTENING THE HEX HEAD SCREW.

3.) ASSEMBLE THE SOCKET FROM THE LITEBOX HOUSING INTO THE MOUNTING

HOLE IN THE TOP OF THE YOKE.

4.) TO INSTALL THE TRIM INTO THE HOUSING, SQUEEZE THE TORSION SPRING

LEGS TOGETHER AND PLACE INTO THE TORSION SPRING BRACKETS IN THE

HOUSING. PUSH THE TRIM UP AND ALLOW THE SPRINGS TO PULL THE TRIM

UP AGAINST THE CEILING.

5.) INSTALL LAMP.

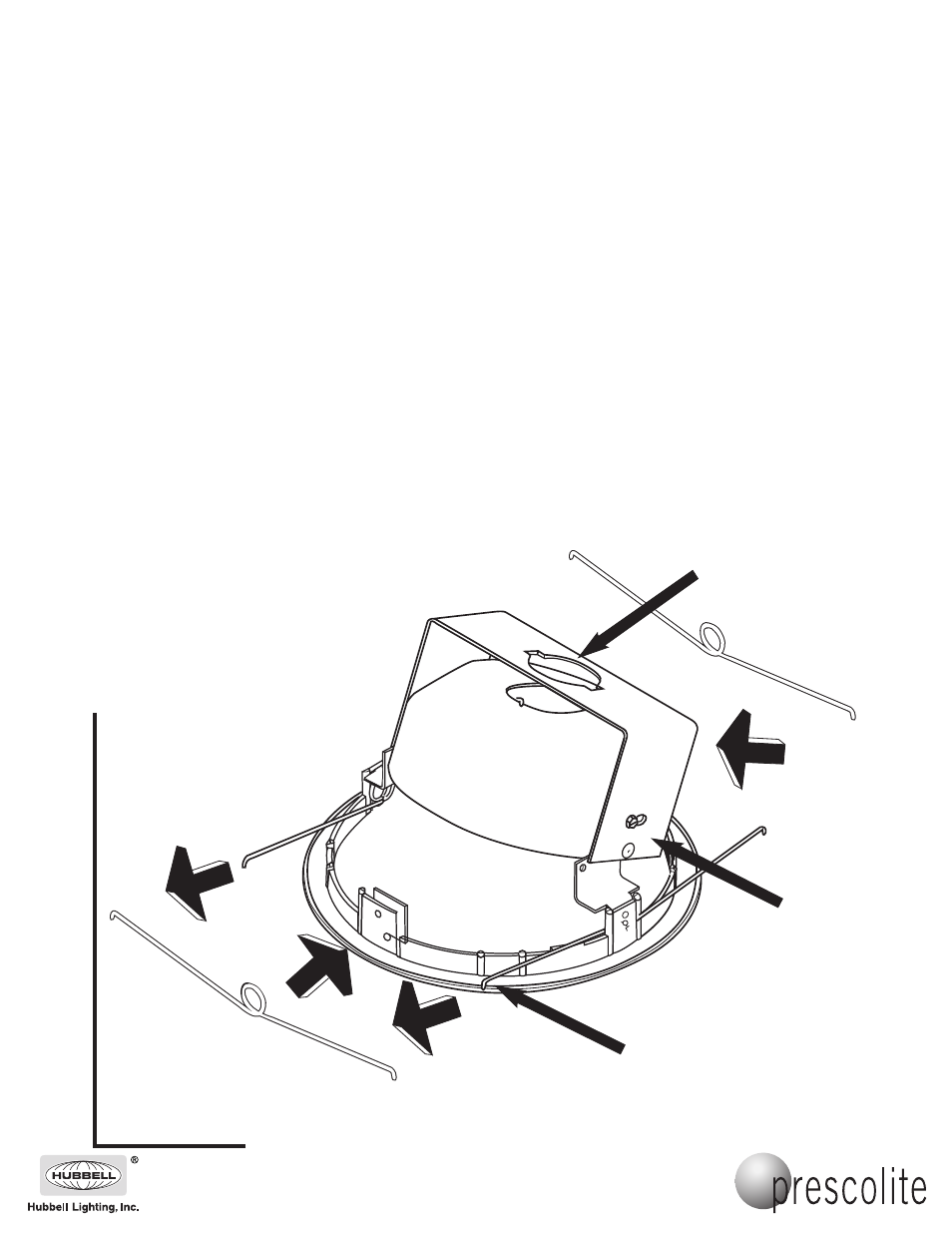

TO ROTATE TRIM 90° PULL

OUT TORSION LEGS (1)

THEN REINSTALL 90° BY

PULLING THROUGH LANCES

PROVIDED (2).

SOCKET

MOUNTING

HOLE

HEX HEAD

SCREW

TORSION SPRING 2

SUPPLIED WITH TRIM

(2)

(2)

(1)

(1)

IMPORTANT SAFETY INFORMATION. READ AND FOLLOW ALL SAFETY INSTRUCTIONS. Follow label information

and instructions concerning Wet or Damp Locations, installation near combustible materials, insulation, building materials,

and proper lamping. Do not install in areas subject to combustible vapors or gases. Before wiring to power supply and

during servicing or relamping, turn off power at fuse or circuit breaker. All servicing or relamping must be performed by

qualified service personnel. Product must be grounded to avoid potential electric shock or other potential hazard.

Product must be mounted in locations and at heights and in a manner consistent with its intended use, and in

compliance with the National Electrical Code and local codes. The use of accessory equipment not recommended by

the manufacturer or installed contrary to instructions may cause an unsafe condition. Do not block light emanating from

product in whole or part, as this may cause an unsafe condition. Do not allow items such as drapes, curtains, screens or

the like to come into contact with the product or to block light from the product, as this may cause an unsafe condition.
