Prescolite TB13 User Manual

Instruction sheet, Installation instructions cat. no. to72s, tb13

www

.prescolite.com

• Prescolite

TollFree

Technical

Support

1.888.PRS.4TEC

•
Hours:

8am
- 5pm
ET

701 Millennium Blvd., Greenville, SC 29607

With representatives offices in principal cities throughout North America.

Part No. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .05687700

Instruction

Sheet

INSTALLATION INSTRUCTIONS

CAT. NO. TO72S, TB13

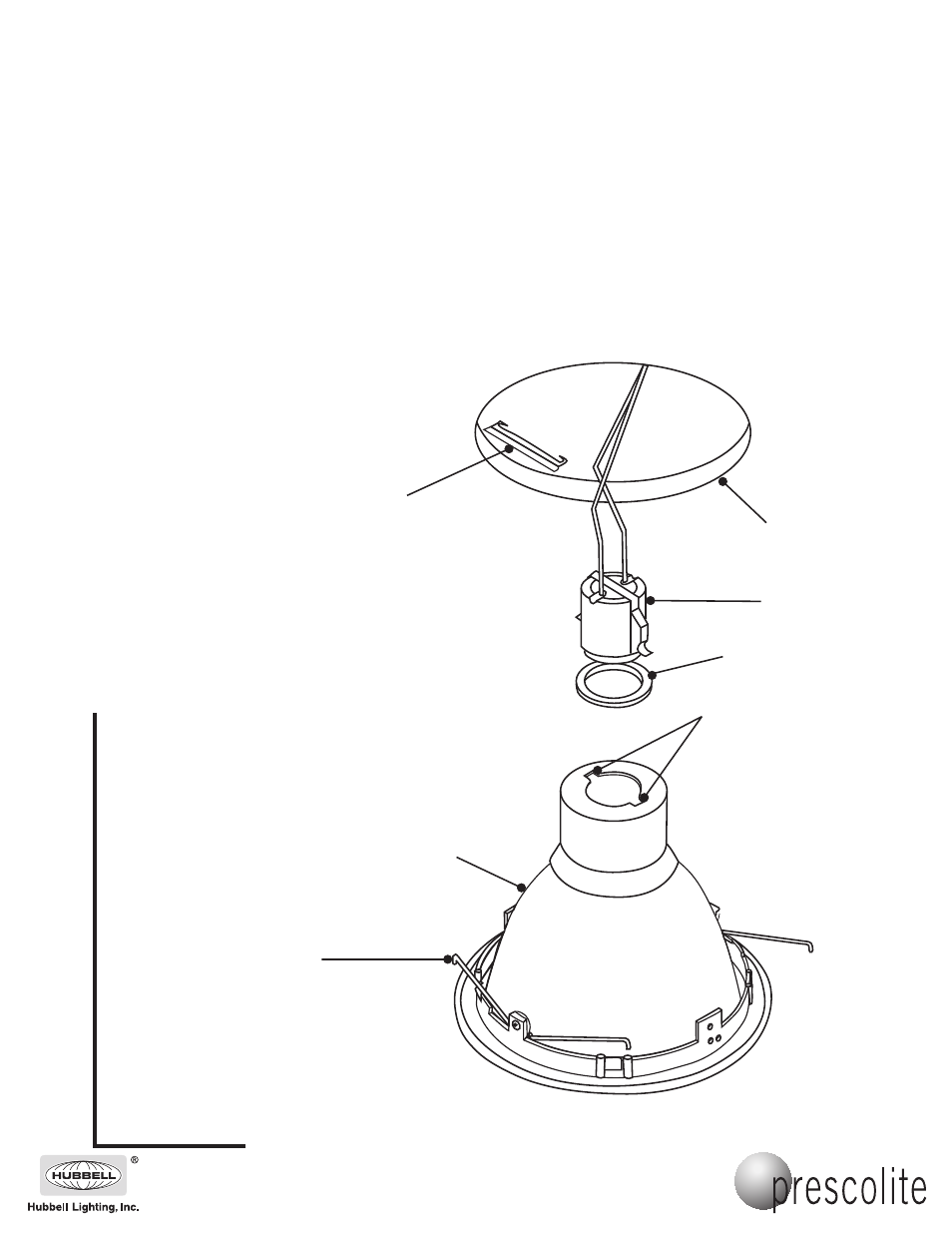

Torsion Spring

Bracket (2)

Lite Box

Housing

(installed)

Torsion Spring (2)

Trim

Lite Box

Socket

SG-1 Gasket

(See NOTE)

Socket Clip

Notches

(See NOTE)

NOTE: If the trim is to be installed in a geographical area governed

by W.S.E.C. requirements and the

IBXTP housing is used,

either 1) the socket clip notches in the trim must be sealed

with a silicone-based caulking material, or 2) an SG-1 gasket

(supplied separately) must be placed on the bottom of the

socket before installation.

1. Assemble the socket from the Lite Box housing into the mounting

hole in the top of the trim.

2. To install the trim into the housing squeeze the torsion spring legs

together and place into the torsion spring brackets in the housing.

Push the trim up and allow the springs to pull the trim up against

the ceiling.

3. Lamp the fixture.

IMPORTANT SAFETY INFORMATION. READ AND FOLLOW ALL SAFETY INSTRUCTIONS. Follow label information

and instructions concerning Wet or Damp Locations, installation near combustible materials, insulation, building materials,

and proper lamping. Do not install in areas subject to combustible vapors or gases. Before wiring to power supply and

during servicing or relamping, turn off power at fuse or circuit breaker.

All servicing or relamping must be performed by

qualified service personnel. Product must be grounded to avoid potential electric shock or other potential hazard.

Product must be mounted in locations and at heights and in a manner consistent with its intended use, and in

compliance with the National Electrical Code and local codes. The use of accessory equipment not recommended by

the manufacturer or installed contrary to instructions may cause an unsafe condition. Do not block light emanating from

product in whole or part, as this may cause an unsafe condition. Do not allow items such as drapes, curtains, screens or

the like to come into contact with the product or to block light from the product, as this may cause an unsafe condition.

This manual is related to the following products:

TO72S
