INSTALLATION INSTRUCTIONS
FOR AKTWC TRACK STEM WIRE COVER
FOR USE WITH PRESCOLITE AKT TRACK SYSTEM ONLY
READ INSTALLATION INSTRUCTIONS BEFORE INSTALLING THE TRACK SYSTEM
SAVE INSTRUCTIONS FOR REFERENCE WHEN MAKING ADDITIONS TO OR CHANGES IN THE TRACK SYSTEM.
INSTALLATION
1. Refer to PRESCOLITE AKT series track for track installation instructions
2. Refer to track stem kit httsk for stem installation and wiring instructions.
3. Refer to AKT live end feed. For wiring instructions.
4. Before assembling stem to track assembly. Slide wire cover over stem. Assemble lock nuts to stem. Hook stem to z bracket,
tighten locknuts.
5. Route wiring from stem along top of track pull through 7/8 dia. Ko in connector, wire according to instructions provided with
connectors.
6. Slide track stem wire cover down over wiring.
SAVE THESE INSTRUCTIONS
IMPORTANT SAFETY INFORMATION. READ AND FOLLOW ALL SAFETY INSTRUCTIONS. Follow label information
and instructions concerning Wet or Damp Locations, installation near combustible materials, insulation, building materials,
and proper lamping. Do not install in areas subject to combustible vapors or gases. Before wiring to power supply and
during servicing or relamping, turn off power at fuse or circuit breaker. All servicing or relamping must be performed by
qualified service personnel. Product must be grounded to avoid potential electric shock or other potential hazard.
Product must be mounted in locations and at heights and in a manner consistent with its intended use, and in
compliance with the National Electrical Code and local codes. The use of accessory equipment not recommended by
the manufacturer or installed contrary to instructions may cause an unsafe condition. Do not block light emanating from
product in whole or part, as this may cause an unsafe condition. Do not allow items such as drapes, curtains, screens or
the like to come into contact with the product or to block light from the product, as this may cause an unsafe condition.

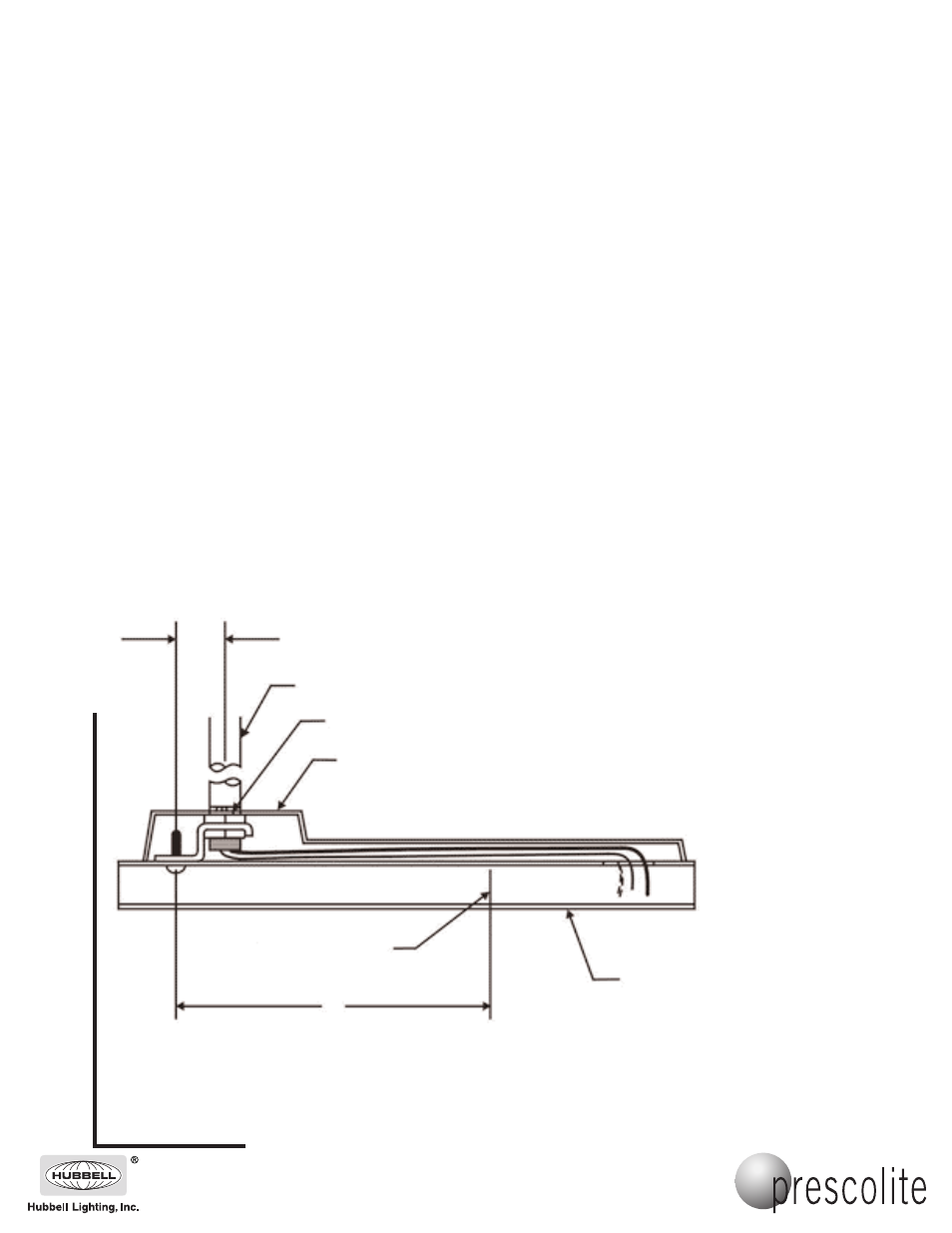

INSTALLATION INSTRUCTIONS
ARCHITRAK
®
SYSTEM
1”
AKT STEM KIT
LOCKNUTS (PROVIDED WITH STEM KIT)
TRACK STEM WIRE COVER
AKT TRACK RAIL
END OF TRACK RAIL AKT LIVE END FEED,
OR T.X. 90 DEGREE,
STRAIGHT CONNECTORS
5”
