INSTALLATION INSTRUCTIONS
PL CYLINDERS
PENDANT MOUNT:
1.) REMOVE COTTER PIN FROM PIPE
ADAPTOR. FEED WIRES THROUGH
COVER AND STEM. REPLACE COTTER
PIN THROUGH PIPE ADAPTOR AND
STEM. BEND ENDS OF COTTER PIN TO
SECURE THE STEM TO THE PIPE
ADAPTOR.
2.) MAKE ELECTRICAL CONNECTIONS.
CONNECT GROUND WIRES TO GREEN
GROUND LEADS. CONNECT WHITE
(COMMON) TO WHITE LEADS.
CONNECT POWER SUPPLY (LINE) TO
BLACK LEADS. (SEE WIRING DIA-
GRAM).
WARNING: DO NOT PINCH WIRES.
CONSULT A QUALIFIED ELECTRICIAN
FOR ALL OTHER OPTIONS THAT
REQUIRE OTHER WIRING
CONFIGURATIONS.
3.) PUSH UP COVER AND TURN TO LOCK
IN PLACE OVER CEILING ADAPTOR.
NOTE FOR DIMMING UNITS ONLY: LOW VOLTAGE CONTROL WIRES MUST BE RUN IN CONDUIT.

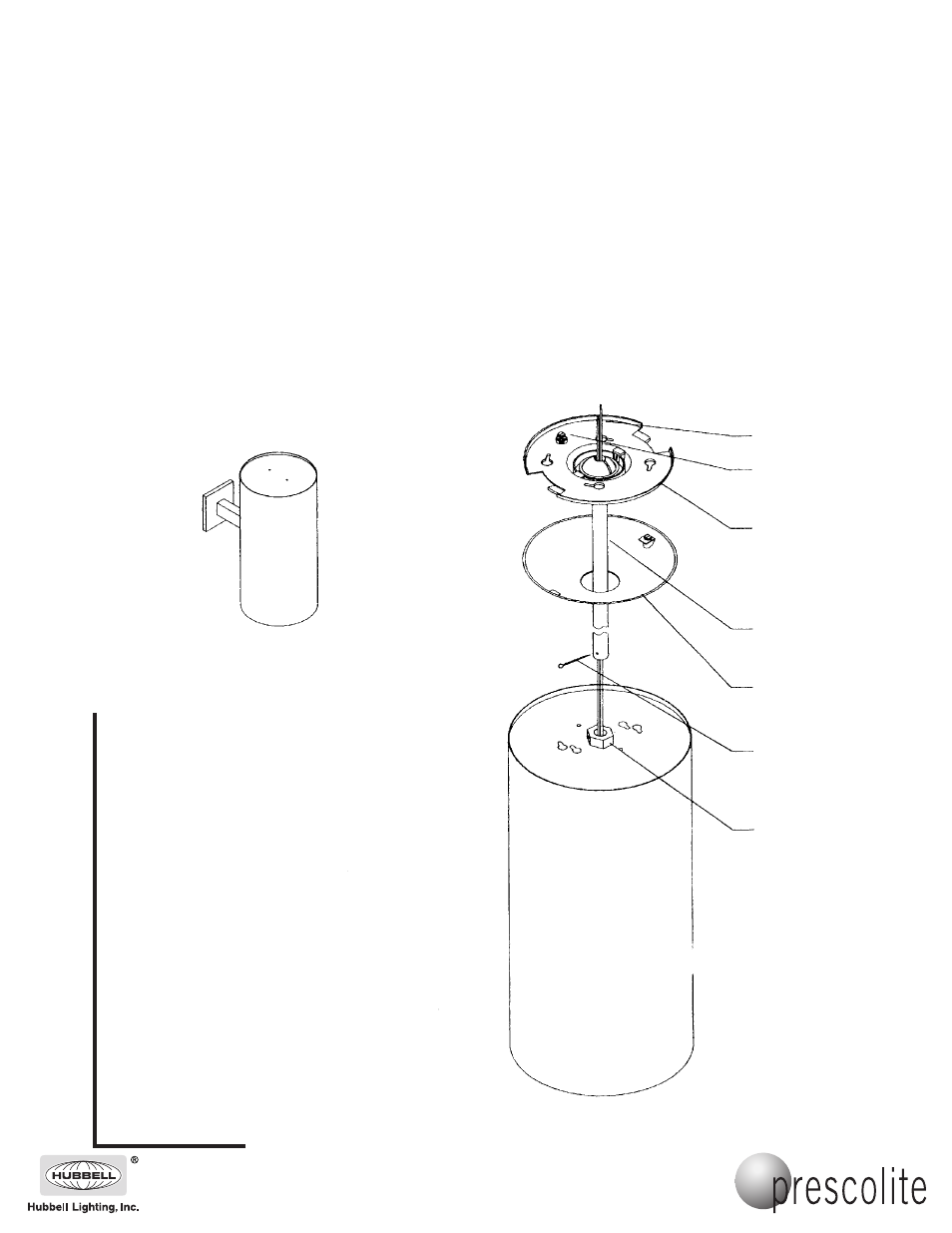

STEM
GROUND SCREW
COTTER PIN
PIPE ADAPTOR
COVER
MOUNTING PLATE
FIXTURE WIRES
CAUTION:DO NOT ATTEMPT TO MODIFY OR REWIRE FACTORY-INSTALLED WIRING ON THE FIXTURE. SAFETY AND
PROPER OPERATION. OF THE FIXTURE DEPEND ON THE INTEGRITY OF THE WIRING.
WALL MOUNT: USE INSTRUCTIONS
WITH PACKET 69
IMPORTANT SAFETY INFORMATION. READ AND FOLLOW ALL SAFETY INSTRUCTIONS. Follow label information
and instructions concerning Wet or Damp Locations, installation near combustible materials, insulation, building materials,
and proper lamping. Do not install in areas subject to combustible vapors or gases. Before wiring to power supply and
during servicing or relamping, turn off power at fuse or circuit breaker. All servicing or relamping must be performed by
qualified service personnel. Product must be grounded to avoid potential electric shock or other potential hazard.
Product must be mounted in locations and at heights and in a manner consistent with its intended use, and in
compliance with the National Electrical Code and local codes. The use of accessory equipment not recommended by
the manufacturer or installed contrary to instructions may cause an unsafe condition. Do not block light emanating from
product in whole or part, as this may cause an unsafe condition. Do not allow items such as drapes, curtains, screens or
the like to come into contact with the product or to block light from the product, as this may cause an unsafe condition.
