INSTALLATION INSTRUCTIONS

CFSCB 813/18/26

1. Remove cover plate by loosening the (2) cover

plate screws and sliding the cover plate until screw

heads clear the keyholes.

2. Thread supply wire (line, common and ground)

from outlet box installed in ceiling through cen-

ter hole of drum housing. Place drum housing

over outlet box. Twist drum housing clockwise

to engage outlet box screw heads. Secure drum

housing to ceiling.

3. Make wire connections in top of drum housing

between supply wires and ballast/socket tray

assembly. (green to green, white to white and

black to black).

4. Install (2) compact fluorescent lamps per relamp

label (order separately).

5. Install trim (order separately).

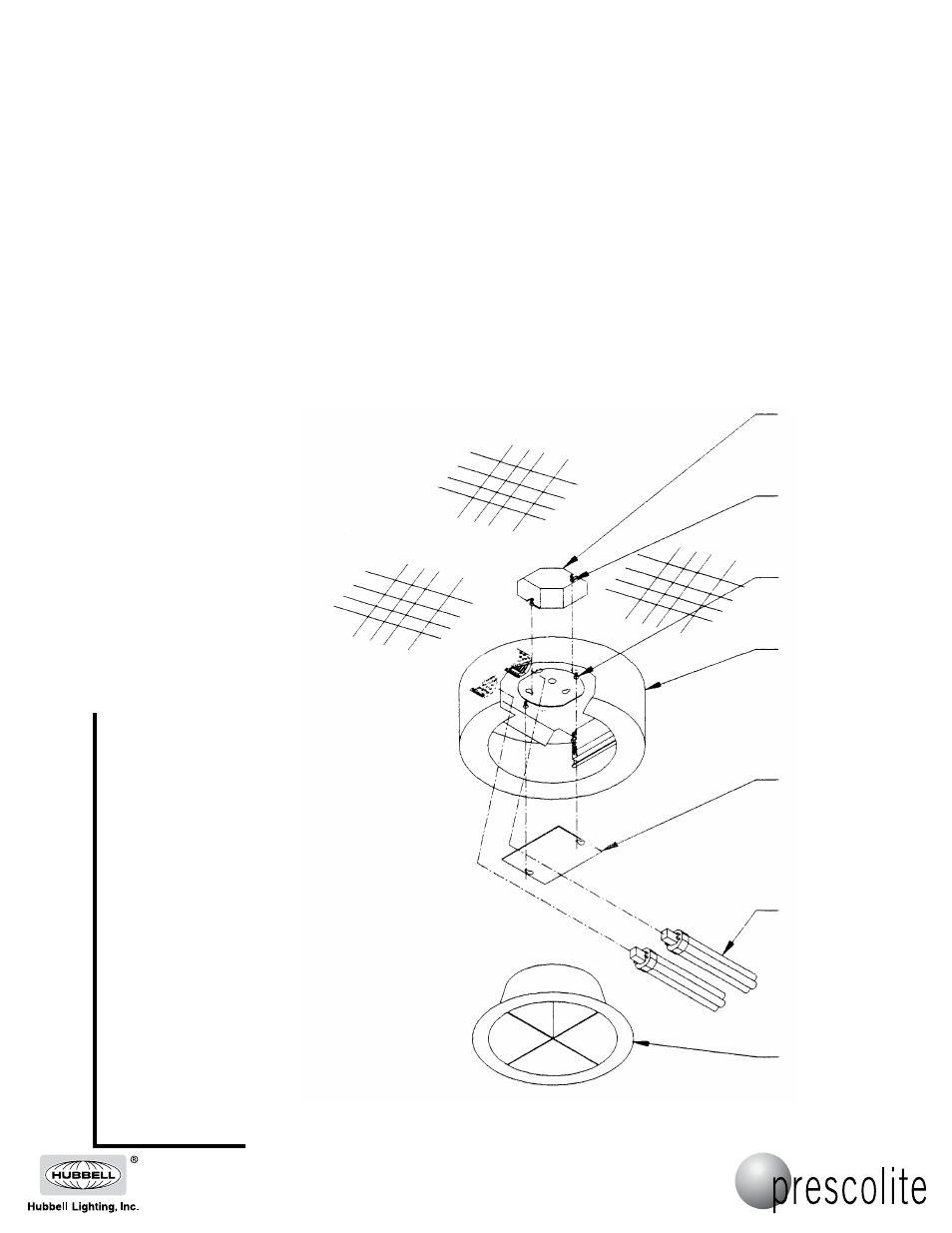

(2) Compact

Fluorescent Lamp

(order separately)

CB8CL Trim

(order separately)

Reflector

Outlet Box

Screw Head

Cover Plate

Cover Plate

Screw Head

Drum Housing

Outlet Box

(By Others)

IMPORTANT SAFETY INFORMATION. READ AND FOLLOW ALL SAFETY INSTRUCTIONS. Follow label information

and instructions concerning Wet or Damp Locations, installation near combustible materials, insulation, building materials,

and proper lamping. Do not install in areas subject to combustible vapors or gases. Before wiring to power supply and

during servicing or relamping, turn off power at fuse or circuit breaker.

All servicing or relamping must be performed by

qualified service personnel. Product must be grounded to avoid potential electric shock or other potential hazard.

Product must be mounted in locations and at heights and in a manner consistent with its intended use, and in

compliance with the National Electrical Code and local codes. The use of accessory equipment not recommended by

the manufacturer or installed contrary to instructions may cause an unsafe condition. Do not block light emanating from

product in whole or part, as this may cause an unsafe condition. Do not allow items such as drapes, curtains, screens or

the like to come into contact with the product or to block light from the product, as this may cause an unsafe condition.

WARNING - This product contains chemicals known to the State of California to cause cancer, birth defects and/or other

reproductive harm. Thoroughly wash hands after installing, handling, cleaning, or otherwise touching this product.
