INSTALLATION INSTRUCTIONS
PLASTIC SHOWER TRIMS
TL-30PW/TL-41PW
1. Assemble the socket from the Lite Box
housing into the mounting hole in the side
of the reflector.
2. Install the reflector in the Lite Box aperture
by placing the notches in the spring clips on
the housing plaster flange. (See Fig. 2)
Make sure to position the socket in one
corner of the Lite Box housing.

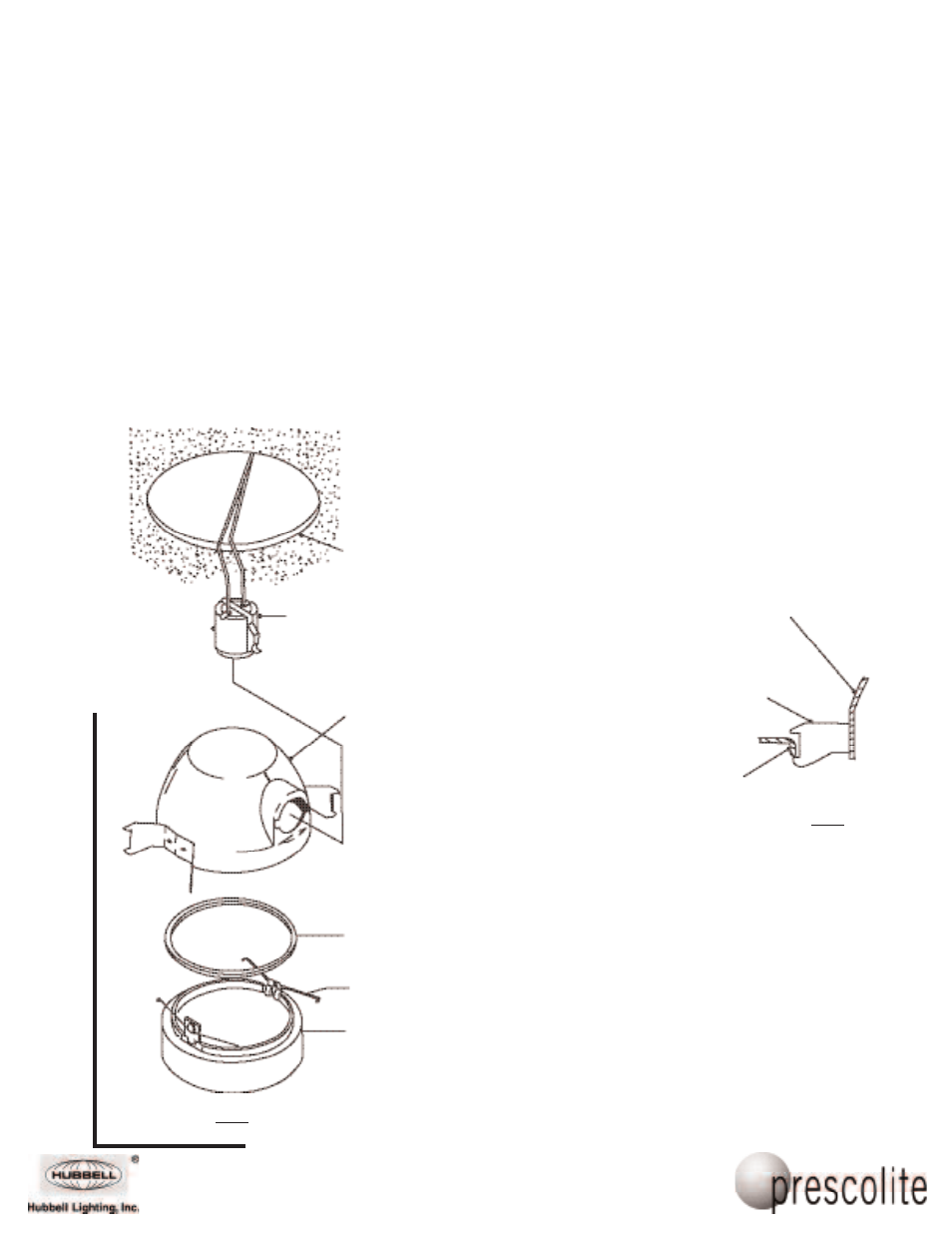

Lite Box Housing
(Installed)
Lite Box Socket
Reflector
Gasket
Torsion Spring (2)
Diffuser
Reflector
Spring Clip (2)
Platser Flange
Fig. 2
Fig. 1
3. Install LAMP in accordance with label
inside HOUSING.
IMPORTANT SAFETY INFORMATION. READ AND FOLLOW ALL SAFETY INSTRUCTIONS. Follow label information
and instructions concerning Wet or Damp Locations, installation near combustible materials, insulation, building materials,
and proper lamping. Do not install in areas subject to combustible vapors or gases. Before wiring to power supply and
during servicing or relamping, turn off power at fuse or circuit breaker. All servicing or relamping must be performed by
qualified service personnel. Product must be grounded to avoid potential electric shock or other potential hazard.
Product must be mounted in locations and at heights and in a manner consistent with its intended use, and in
compliance with the National Electrical Code and local codes. The use of accessory equipment not recommended by
the manufacturer or installed contrary to instructions may cause an unsafe condition. Do not block light emanating from
product in whole or part, as this may cause an unsafe condition. Do not allow items such as drapes, curtains, screens or
the like to come into contact with the product or to block light from the product, as this may cause an unsafe condition.
