Instruction

Sheet

INSTALLATION INSTRUCTIONS

TW-95 LITE BOX

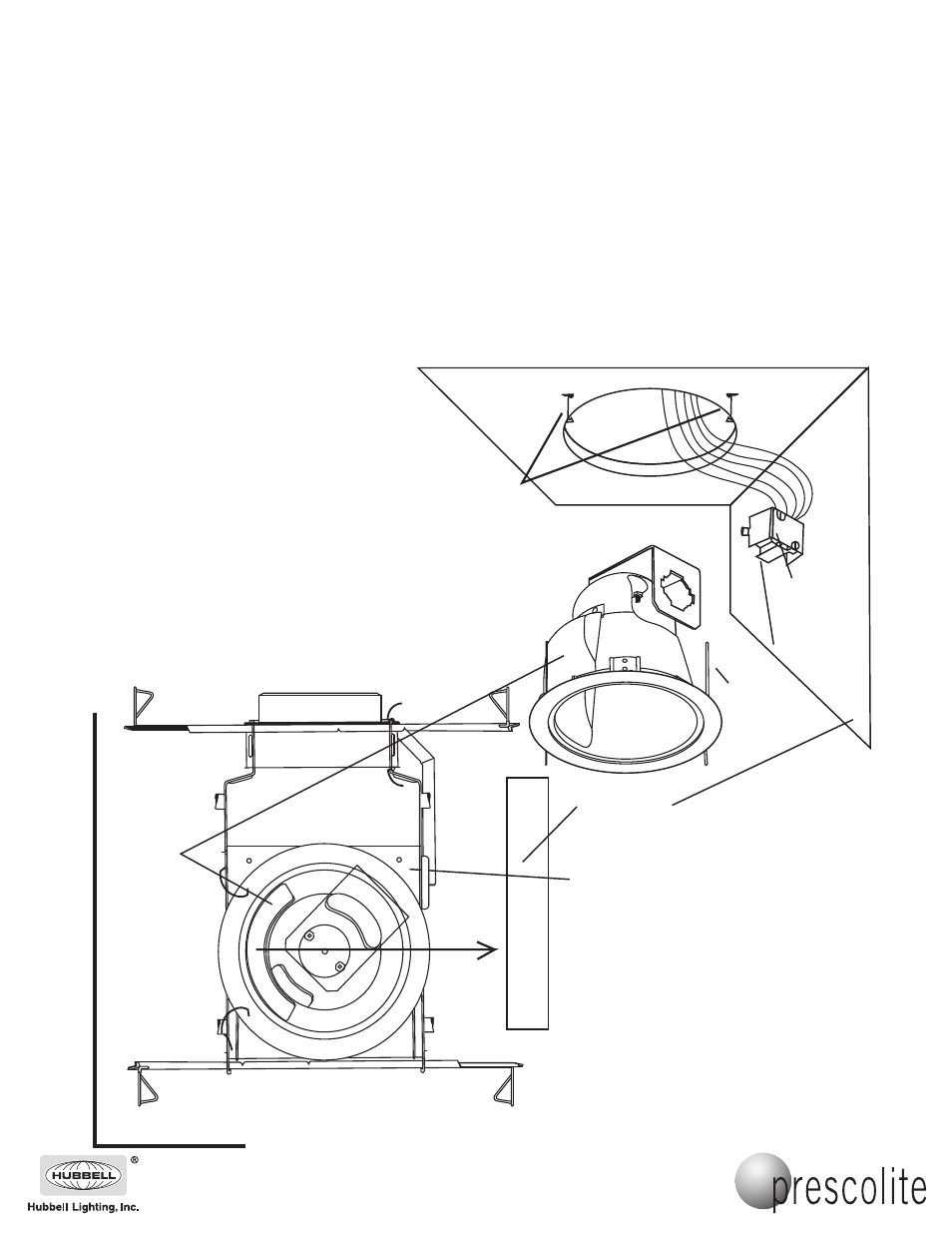

Socket Installation: Squeeze

sides of socket holder together

and place tabs into mounting

hole on reflector or trim yoke as

shown.

Trim Installation: Squeeze the

torsion spring legs together and

place into spring brackets on

the housing. Push the trim up

and allow the springs to pull the

trim up against the ceiling.

Lamp Installation: Lamp with

triple tube compact fluorescent

26 or 32 watt lamps.

Housing

Spring

Brackets

Socket

Holder

Socket

Torsion

Spring

Socket must be placed in this

corner of housing!

Caution, kicker must be opposite

of wall to be illuminated.

Warning, TBX housing

and trim must be

installed as shown in

Fig 2.

Wall to be

illuminated

Kick

Reflector

FIG. 1

FIG. 2

IMPORTANT SAFETY INFORMATION. READ AND FOLLOW ALL SAFETY INSTRUCTIONS. Follow label information

and instructions concerning Wet or Damp Locations, installation near combustible materials, insulation, building materials,

and proper lamping. Do not install in areas subject to combustible vapors or gases. Before wiring to power supply and

during servicing or relamping, turn off power at fuse or circuit breaker. All servicing or relamping must be performed by

qualified service personnel. Product must be grounded to avoid potential electric shock or other potential hazard.

Product must be mounted in locations and at heights and in a manner consistent with its intended use, and in

compliance with the National Electrical Code and local codes. The use of accessory equipment not recommended by

the manufacturer or installed contrary to instructions may cause an unsafe condition. Do not block light emanating from

product in whole or part, as this may cause an unsafe condition. Do not allow items such as drapes, curtains, screens or

the like to come into contact with the product or to block light from the product, as this may cause an unsafe condition.
