Instruction sheet, Installation instructions liteframe, Incandescent lf6inc & lf8inc

Instruction

Sheet

www

.prescolite.com

• Prescolite

TollFree

Technical Support

1.888.PRS.4TEC

• Hours: 8am - 5pm ET

101 Corporate Drive • Spartanburg, SC 29303

With representatives offices in principal cities throughout North America.

Part No. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .161610300

Instruction

Sheet

INSTALLATION INSTRUCTIONS

LITEFRAME

INCANDESCENT

LF6INC & LF8INC

CAUTION: DO NOT ATTEMPT TO MODIFY OR REWIRE FACTORY-INSTALLED WIRING ON THE FIXTURE. SAFETY AND PROPER

OPERATION OF THE FIXTURE DEPEND ON THE INTEGRITY OF THE WIRING.

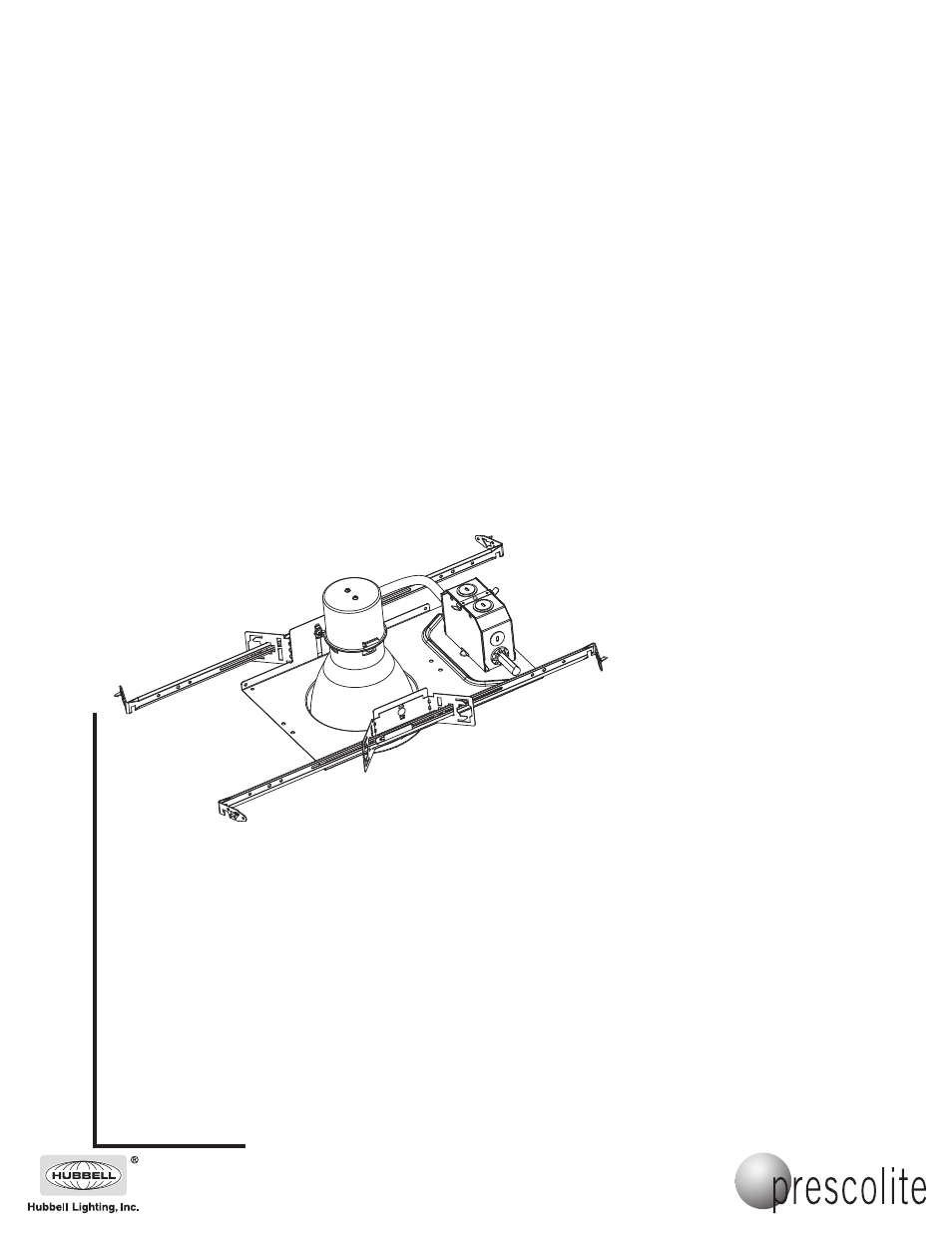

1. Disconnect hanger bars and brackets and

re-install as shown. Install the fixture in the

ceiling using hanger bars (supplied), or

mounting channel or bar (by others)

placed in the adjustable mounting

brackets. Mount the fixture in the ceiling so

that the weight of the fixture is supported

by the hanger bars, mounting channel, or

bar and/or hanger wires secured to the

building structure.

2. Adjust the fixture so the bottom of the

plaster flange is flush with the finished

ceiling line and in alignment with adjacent

fixtures. Secure mounting brackets by

tightening wing nuts on either side of the

fixture.

3. Determine where the supply wiring conduit

will enter the J-Box and attach it in

conformance with the National Electric

Code.

4. Remove J-Box cover plate. Remove

appropriate knockout and assemble appro-

priate connector for the supply wire used.

Connect ground wires to green ground

leads. Connect white (common) to white

(leads). Connect power supply (line) to

black lead(s). Reinstall J-Box cover.

WARNING: DO NOT pinch wires

between J-Box/ballast cover and J-Box.

Consult a qualified electrician for all

other options that require other wiring

configurations.

5. Install the reflector after all ceiling

installation and finishing work is complete.

Insert ends of socket cup spring into

reflector neck in alignment with slots, then

push the socket cup down until the desired

position is obtained. Use top position for A

lamps or bottom position for PAR lamps.

6. Push reflector up into the plaster flange

until the reflector is flush against the

ceiling.

7. Install the proper lamp (by others).

IMPORTANT SAFETY INFORMATION. READ AND FOLLOW ALL SAFETY INSTRUCTIONS. Follow label information

and instructions concerning Wet or Damp Locations, installation near combustible materials, insulation, building materials,

and proper lamping. Do not install in areas subject to combustible vapors or gases. Before wiring to power supply and

during servicing or relamping, turn off power at fuse or circuit breaker. All servicing or relamping must be performed by

qualified service personnel. Product must be grounded to avoid potential electric shock or other potential hazard.

Product must be mounted in locations and at heights and in a manner consistent with its intended use, and in

compliance with the National Electrical Code and local codes. The use of accessory equipment not recommended by

the manufacturer or installed contrary to instructions may cause an unsafe condition. Do not block light emanating from

product in whole or part, as this may cause an unsafe condition. Do not allow items such as drapes, curtains, screens or

the like to come into contact with the product or to block light from the product, as this may cause an unsafe condition.

This manual is related to the following products:

LF6INC
