Instruction

Sheet

101 Corporate Drive • Spartanburg, SC 29303

With representatives offices in principal cities throughout North America.

Junction

Box

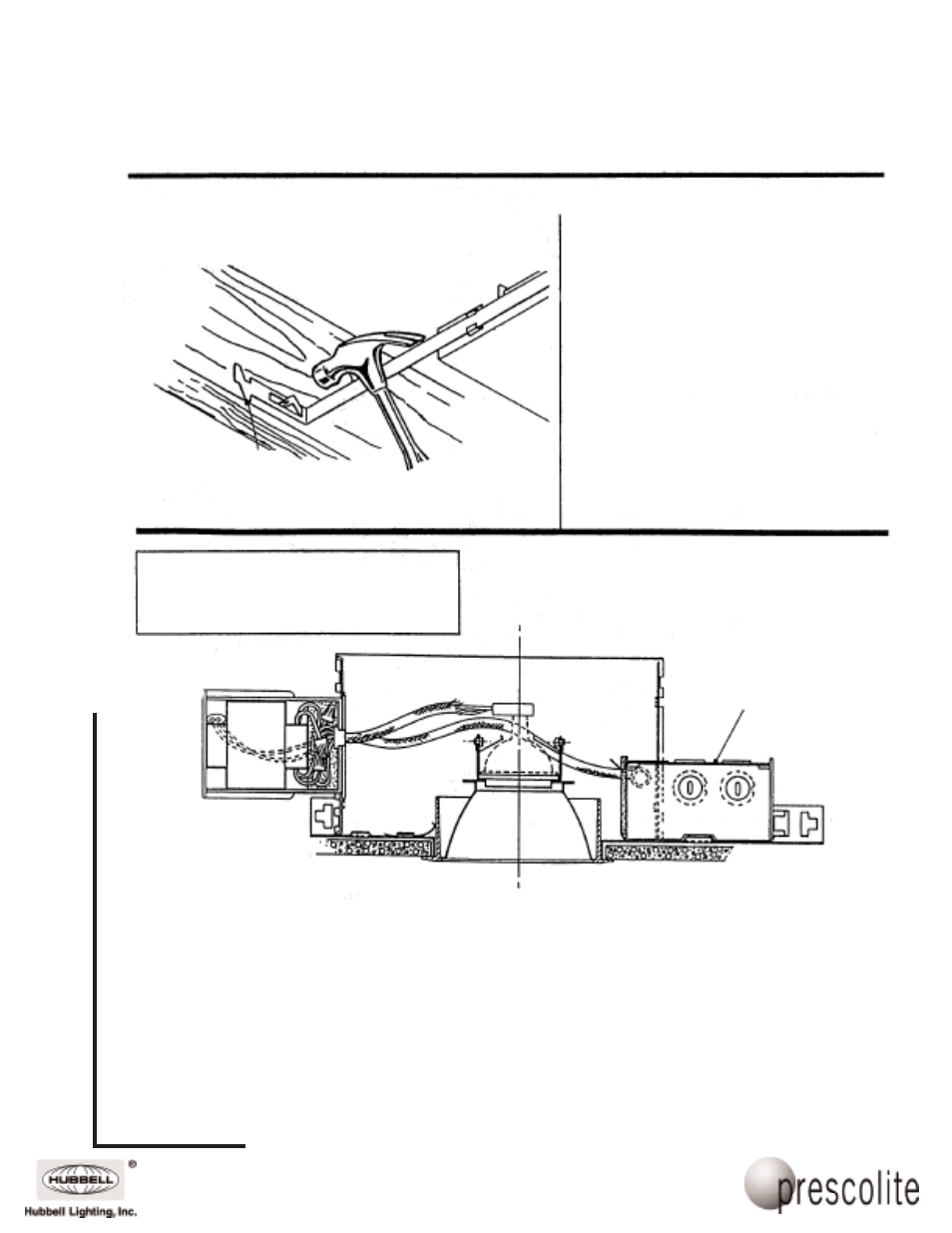

Frame-In Housing

Place housing between joists, line-up self-leveling tabs

with bottom of joists as shown and hammer integral

forked nailing tabs into joists.

Leveling Tab

Electrical Wiring

Warning: Disconnect power before wiring fixture to

the circuit.

Check the transformer rating of the fixture for the

correct voltage (120V & 277V) before wiring into the

circuit.

Use one of the knock-outs provided in the J-Box for

supply wire entry. Remove J-box cover plates and

make electrical splices, black to black, white to white

and ground wire to green ground wire in J-Box. Push

splices in J-Box and replacce covers.

Electrical Rating of Fixture

LVH4120: Primary 120V. .8 AMPS

Secondary: 12V. 75VA. MAX.

LVH4277: Primary 277V. .28 AMPS

Secondary: 12V. 75VA. MAX.

CAUTION

When installing trim in housing, make sure

power and socket leads are not resting on lamp

or trim surfaces.

Close-Up

Install plasterboard

” to 1” Max. Cut a 4

” Dia. Hole in board at desired location for mounting frame trim flange.

Suspended Ceilings

Make sure that the bottom of the mounting frame is no higher than 1” above ceiling line.
