Prescolite 9FLXPR User Manual

Instruction sheet

Instruction

Sheet

www

.prescolite.com

• Prescolite

TollFree

Technical Support

1.888.PRS.4TEC

• Hours: 8am - 5pm ET

101 Corporate Drive • Spartanburg, SC 29303

With representatives offices in principal cities throughout North America.

Part No. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .03626000

Instruction

Sheet

INSTALLATION INSTRUCTIONS

TRIM INSTALLATION

CAT. NO. 6FLXPR & 9 FLXPR

TRIM INSTALLATION
1. Assemble both torsion spring brackets supplied in packet by pressing the stud into the bracket

as shown in Fig. B.

2. Install torsion spring brackets in the sides of the housing by placing the tab in the upper hole

and pressing the stud in the 1/4" Dia. lower hole, Fig. B.

3. Lamp the fixture.
4. Place the torsion springs into the slots in the brackets as shown in Fig. A. Push the trim up into

the housing and allow the springs to draw the trim up against the ceiling.

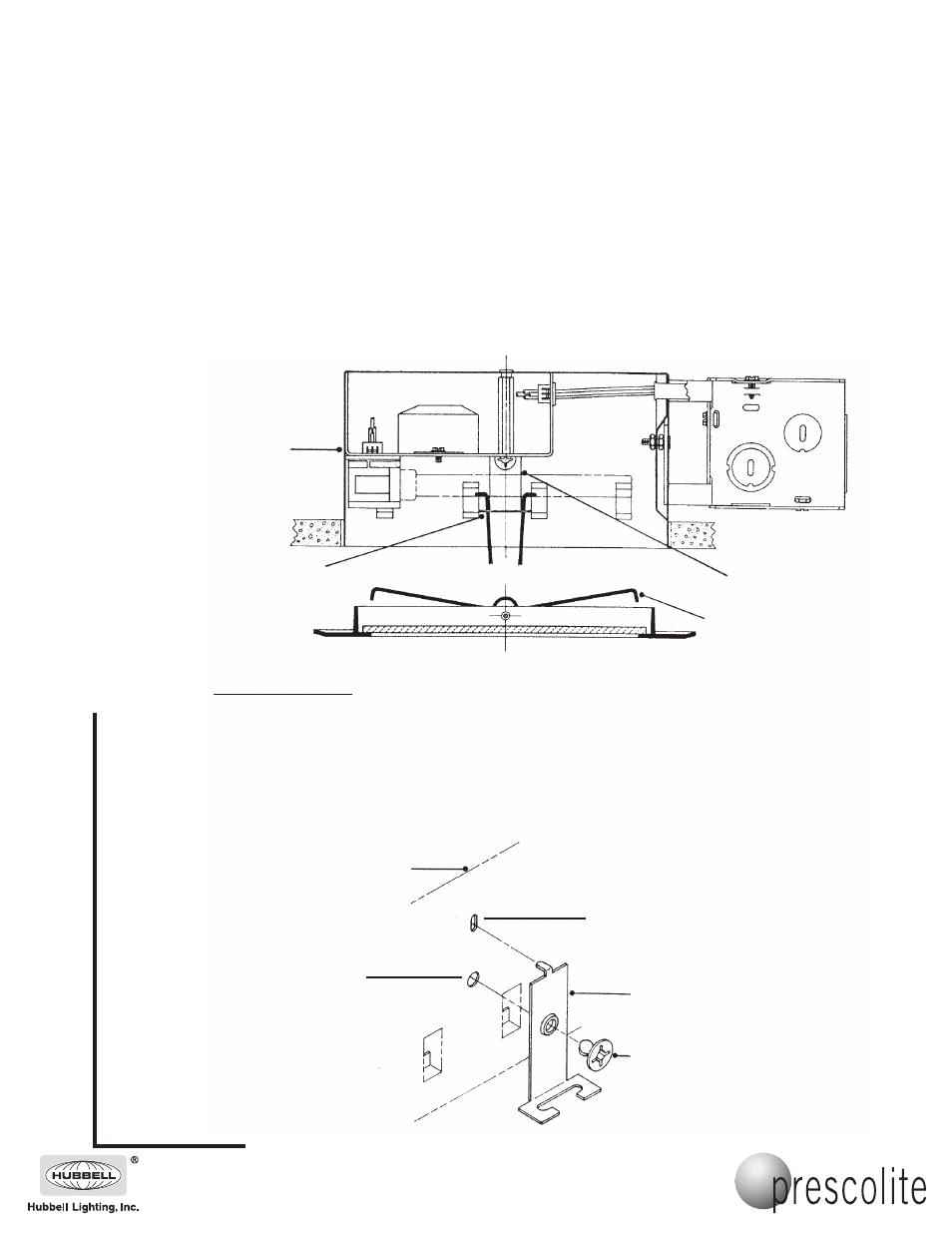

Torsion Spring Bracket

Installed (2)

Engage Torsion Springs

in Brackets as Shown.

LFFTWSQ-6H or LFFQSQ-H9

Housing

Stud Fastener (2)

(Press into Bracket)

Torsion Spring

Bracket (2)

Torsion Spring (2)

Fig. A

Fig. B

Upperhole

Housing

1/4" Dia Hole

IMPORTANT SAFETY INFORMATION. READ AND FOLLOW ALL SAFETY INSTRUCTIONS. Follow label information

and instructions concerning Wet or Damp Locations, installation near combustible materials, insulation, building materials,

and proper lamping. Do not install in areas subject to combustible vapors or gases. Before wiring to power supply and

during servicing or relamping, turn off power at fuse or circuit breaker. All servicing or relamping must be performed by

qualified service personnel. Product must be grounded to avoid potential electric shock or other potential hazard.

Product must be mounted in locations and at heights and in a manner consistent with its intended use, and in

compliance with the National Electrical Code and local codes. The use of accessory equipment not recommended by

the manufacturer or installed contrary to instructions may cause an unsafe condition. Do not block light emanating from

product in whole or part, as this may cause an unsafe condition. Do not allow items such as drapes, curtains, screens or

the like to come into contact with the product or to block light from the product, as this may cause an unsafe condition.
