INSTALLATION INSTRUCTIONS
LITEFRAME
®
LF4/6SQCFH AND 4/6SQCFH
1. Install the fixture in the ceiling using hanger bars (supplied), or mounting channel or bar (by others) placed in the adjustable
mounting brackets. Mount the fixture in the ceiling so that the weight of the fixture is supported by the hanger bars, mounting
channel, bar, and/or hanger wires secured to the building structure.
2. Adjust the fixture so the bottom of the plaster flange is flush with the finished ceiling line and in alignment with adjacent
fixtures. Secure mounting brackets by tightening wing nuts on either side of the fixture.
3. Determine where the supply wiring conduit will enter the J-Box and attach it in conformance with the National Electric Code.
4. Remove J-Box cover plate. Remove appropriate knockout and assemble appropriate connector for the supply wire used.
Connect ground wires to green ground leads. Connect white (common) to white (leads). Connect power supply (line) to black
lead(s). Reinstall J-Box cover.
WARNING: DO NOT pinch wires between J-Box/ballast cover and J-Box. Consult a qualified electrician
for all other options that require other wiring configurations.

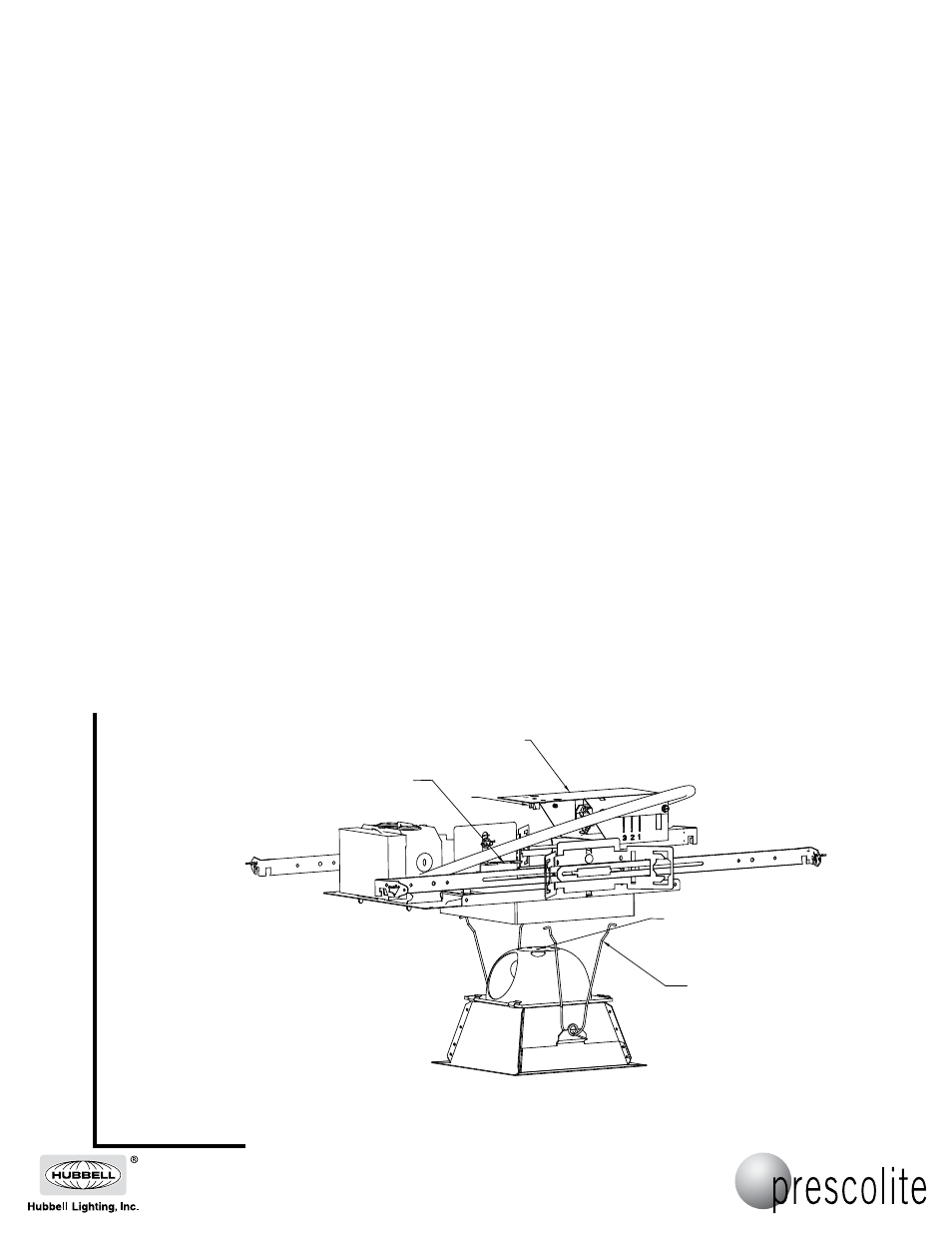

5. Pull socket box (1) down through opening in fixture. (SEE FIG 1) and remove wingnut (2)
6. Attach socket box to reflector (3) using center hole. Re-install wingnut (2)
7. Install appropriate lamp as needed into socket.
8. Squeeze two torsion springs (4) together and insert ends into two brackets (5). (SEE FIG 1)
9. Push trim assembly up towards ceiling until springs draw trim firmly against ceiling.(SEE FIG 1)
IMPORTANT SAFETY INFORMATION. READ AND FOLLOW ALL SAFETY INSTRUCTIONS. Follow label information and
instructions concerning Wet or Damp Locations, installation near combustible materials, insulation, building materials, and
proper lamping. Do not install in areas subject to combustible vapors or gases. Before wiring to power supply and during
servicing or relamping, turn off power at fuse or circuit breaker. All servicing or relamping must be performed by
qualified service personnel. Product must be grounded to avoid potential electric shock or other poten-
tial hazard. Product must be mounted in locations and at heights and in a manner consistent with its
intended use, and in compliance with the National Electrical Code and local codes. The use of accessory
equipment not recommended by the manufacturer or installed contrary to instructions may cause an unsafe condition. Do
not block light emanating from product in whole or part, as this may cause an unsafe condition. Do not allow items such
as drapes, curtains, screens or the like to come into contact with the product or to block light from the product, as this may
cause an unsafe condition.
WARNING - This product contains chemicals known to the State of California to cause cancer, birth defects and/or other
reproductive harm. Thoroughly wash hands after installing, handling, cleaning, or otherwise touching this product.
CAUTION: DO NOT ATTEMPT TO MODIFY OR REWIRE FACTORY-INSTALLED WIRING ON THE FIXTURE. SAFETY AND
PROPER OPERATION OF THE FIXTURE DEPEND ON THE INTEGRITY OF THE WIRING.
