Copyright 2005, 08/05 revision, All Rights Reserved - Printed in U.S.A.

Part No. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .138550100

Instruction

Sheet

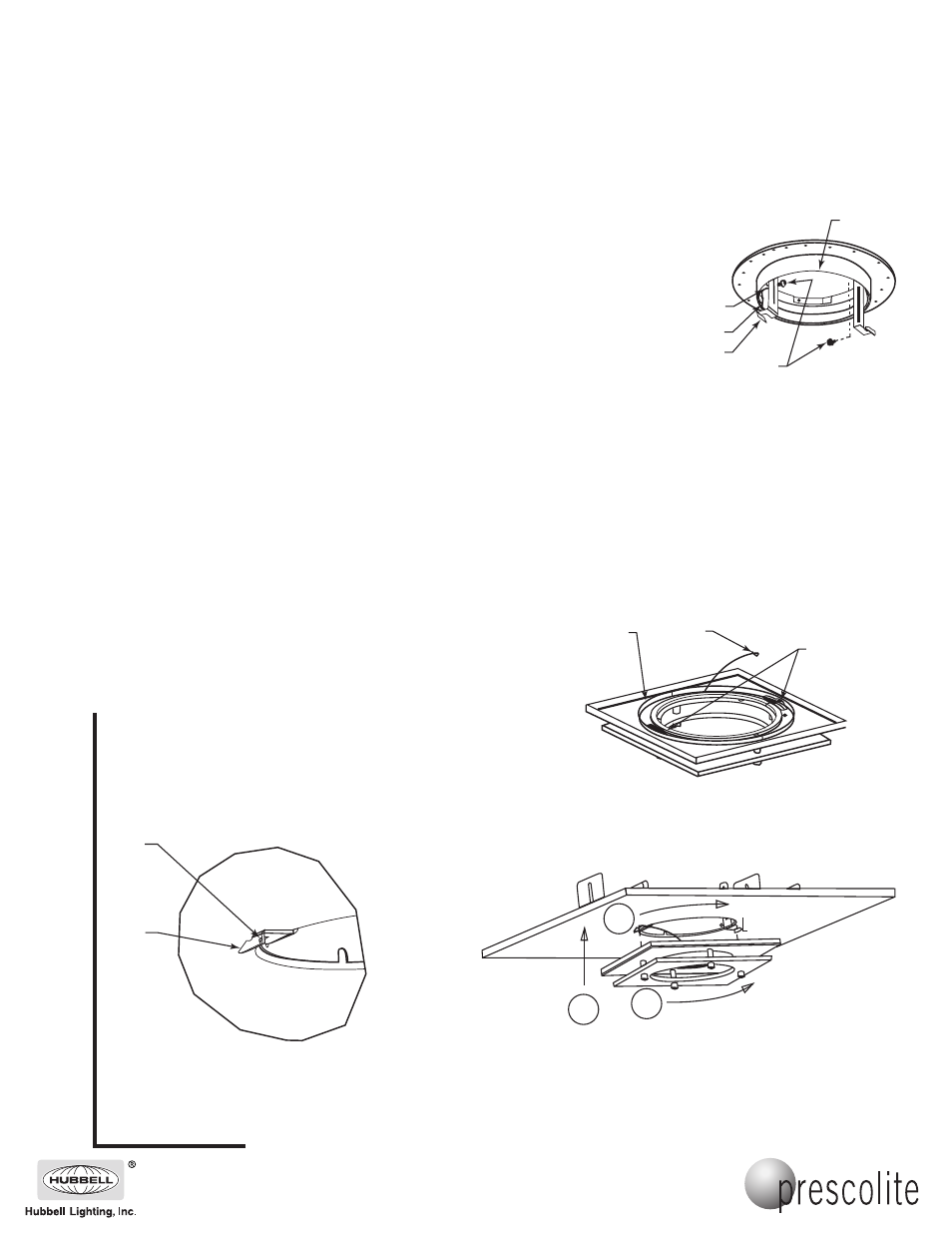

BRACKET INSTALLATION - RHD6

1. Remove lamp and reflector from luminaire and verity that luminaire is secured to

ceiling supports and is stable. Lower edge of luminaire aperture (S) should be

approximately .125 inch above room side ceiling surface; adjust luminaire position if

necessary.

2. Remove “L” brackets (B) from package. Remove triangular brackets (D) from “L”

brackets; save machine screws (I) for reuse.

3. Attach brackets to luminaire by placing brackets into flange slots (U) and inserting

machine screws (I) through bracket slots and into flange holes (V). Adjust brackets

so they are in contact with ceiling and tighten machine screws (I).

4. Replace reflector and lamp.

TRIM INSTALLATION

Note: frosted glass and plastic parts are easily

stained with body oils or other contaminants; use

gloves or extreme care to maintain clean

appearance.

1. Attach Signos trim safety retainer (AA) to “L” bracket (B) by

threading wire end into hole (BB), first inserting into the side

away from the aperture.

2. Orient Signos trim so attachment springs (CC) are aligned

with “L” brackets (B) and trim is centered below aperture.

Rotate trim counterclockwise until safety retainer (AA)

reaches the end of its slot to position springs (CC) for mounting,

keeping trim centered. Push trim to ceiling, insuring that “L”

brackets (B) insert inside mounting flange (DD). With Signos

trim pushed against ceiling, rotate clockwise until trim locks

into place.

3. With light force, pull Signos trim to verify proper installation;

correctly installed trim will hold securely.

SPECIAL NOTES

Do NOT install decorative trim if parts

are damaged or cracked. Do NOT

disassemble decorative trim.

V
U

B

S

I

DD

AA

CC

3

PUSH TRIM

TO CEILING

2

1

ROTATE TO

LOCK

ROTATE TO

POSITION SPRINGS

BB

B
