IMPORTANT SAFETY INFORMATION. READ AND FOLLOW ALL SAFETY INSTRUCTIONS. Follow label information and

instructions concerning Wet or Damp Locations, installation near combustible materials, insulation, building materials, and

proper lamping. Do not install in areas subject to combustible vapors or gases. Before wiring to power supply and during

servicing or relamping, turn off power at fuse or circuit breaker. All servicing or relamping must be performed

by qualified service personnel. Product must be grounded to avoid potential electric shock or other

potential hazard. Product must be mounted in locations and at heights and in a manner consistent with

its intended use, and in compliance with the National Electrical Code and local building codes. The use

of accessory equipment not recommended by the manufacturer or installed contrary to instructions may cause an unsafe

condition. Do not block light emanating from product in whole or part, as this may cause an unsafe condition. Do not allow

items such as drapes, curtains, screens or the like to come into contact with the product or to block light from the product, as

this may cause an unsafe condition.

WARNING - This product contains chemicals known to the State of California to cause cancer, birth defects and/or other

reproductive harm. Thoroughly wash hands after installing, handling, cleaning, or otherwise touching this product.

INSTALLATION INSTRUCTIONS

6" ADJUSTABLE DOWNLIGHT

A6PAR30, A6PAR30CP

www

.prescolite.com

Prescolite T

ollFree T

echnical Suppor

t

1.888.PRS.4TEC

Hours: 8am - 5pm ET

1. Install hanger bars into brackets. Install

the fixture in the ceiling using hanger bars

(sold separately), or mounting channel or

bar (by others) placed in the adjustable

mounting brackets. Mount the fixture in the

ceiling so that the weight of the fixture is

supported by the hanger bars, mounting

channel, bar, and/or hanger wires

secured to the building structure.

2. Adjust the fixture so the bottom of the

plaster flange is flush with the finished

ceiling line and in alignment with

adjacent fixtures. Secure mounting

brackets by tightening wing nuts on either

side of the fixture.

3. Determine where the supply wiring

conduit will enter the J-Box and attach it

in conformance with the National Electric

Code.

4. Remove J-Box cover plate. Remove

appropriate knockout and assemble

appropriate connector for the supply wire

used. Connect ground wires to green

ground leads. Connect white (common)

to white (leads). Connect power supply

(line) to black lead(s). Reinstall J-Box

cover. WARNING: DO NOT pinch

wires between J-Box/ballast

cover and J-Box. Consult a

qualified electrician for all other

options that require other wiring

configurations.

5. See trim instructions for lamp installation.

CAUTION: DO NOT ATTEMPT TO MODIFY OR REWIRE FACTORY-INSTALLED WIRING ON THE FIXTURE. SAFETY

AND PROPER OPERATION OF THE FIXTURE DEPEND ON THE INTEGRITY OF THE WIRING.

701 Millenium Boulevard • Greenville, SC 29607

With representatives offices in principal cities throughout North America.

Copyright 2013, 07/9/13 All Rights Reserved - Printed in U.S.A.

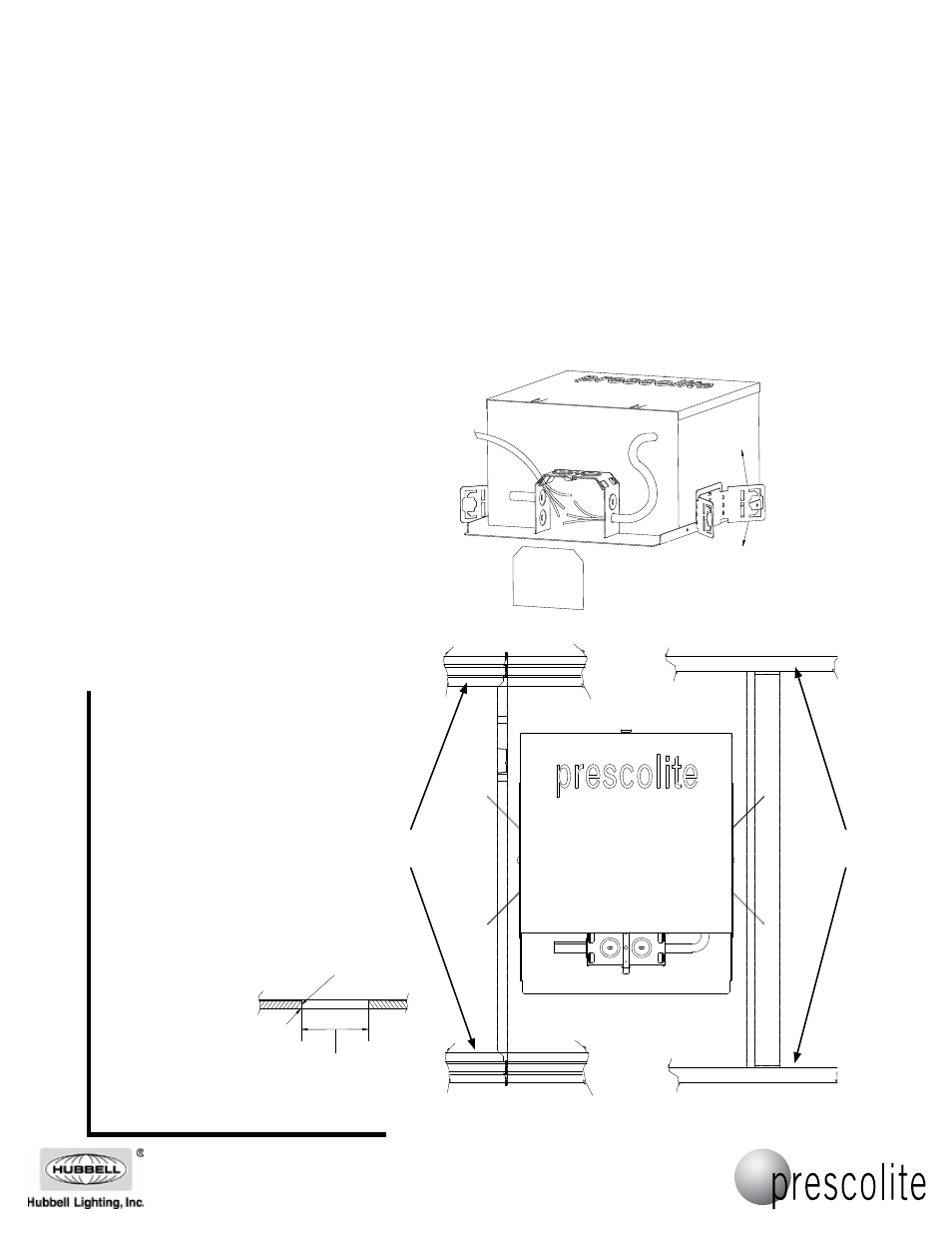

Bar Hangar Brackets

adjust up and down.

NOTE: Bar Hangars

sold seperately.

T Bar

Grid

Ceiling

Joists

Plaster

Frame

Make sure plaster

frame opening is flush

with bottom of ceiling

for proper trim installation

Ceiling Cutout =

6

3

/

4

" Maximum
