Instruction
Sheet

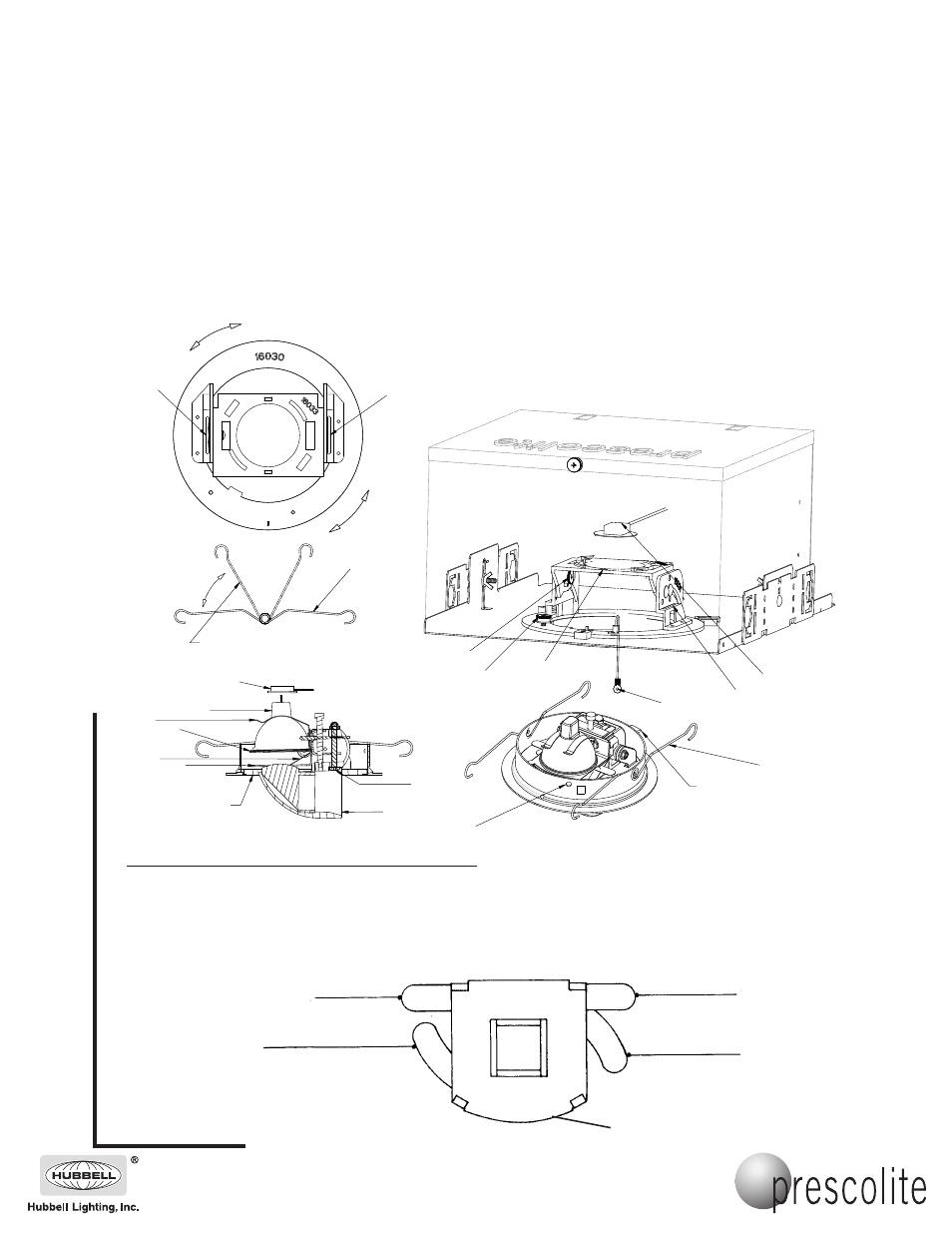

INSTALLATION INSTRUCTIONS
4F1 FRAMING PROJECTOR
RIGHT SIDE OF
FRAME OPENING
14
6
8
3
1
13
12
15
2
5
4
5
8
10
7
16
11
TOP OF FRAME
OPENING
LEFT SIDE OF
FRAME OPENING
BOTTOM OF FRAME
OPENING
A. PREPARATION (BEFORE INSTALLING TRIM IN CEILING)
1. Loosen horizontal and vertical locking thumbscrews (1) & (2) and rotate lamp mounting plate (3) to 45º degrees
vertical. Rotate vertical locking thumbscrew clockwise and lock lamp mounting plate into place in this position.
2. Rotate the scoop (4) horizontally as shown.
3. Familarize yourself with the Shutter Assembly (5). The functions of the shutter are described below:
IMPORTANT SAFETY INFORMATION. READ AND FOLLOW ALL SAFETY INSTRUCTIONS. Follow label information
and instructions concerning Wet or Damp Locations, installation near combustible materials, insulation, building materials,
and proper lamping. Do not install in areas subject to combustible vapors or gases. Before wiring to power supply and
during servicing or relamping, turn off power at fuse or circuit breaker. All servicing or relamping must be performed by
qualified service personnel. Product must be grounded to avoid potential electric shock or other potential hazard.
Product must be mounted in locations and at heights and in a manner consistent with its intended use, and in
compliance with the National Electrical Code and local building codes. The use of accessory equipment not
recommended by the manufacturer or installed contrary to instructions may cause an unsafe condition. Do not block light
emanating from product in whole or part, as this may cause an unsafe condition. Do not allow items such as drapes,
curtains, screens or the like to come into contact with the product or to block light from the product, as this may cause an
unsafe condition.
LOCATE TRIM FEATURE AWAY
FROM SIDE WITH SAFETY CABLE
SQUEEZE TORSION
SPRINGS AS SHOWN
14
14
13
9
