INSTALLATION INSTRUCTIONS

CFT926/32/42 EB/EBDM

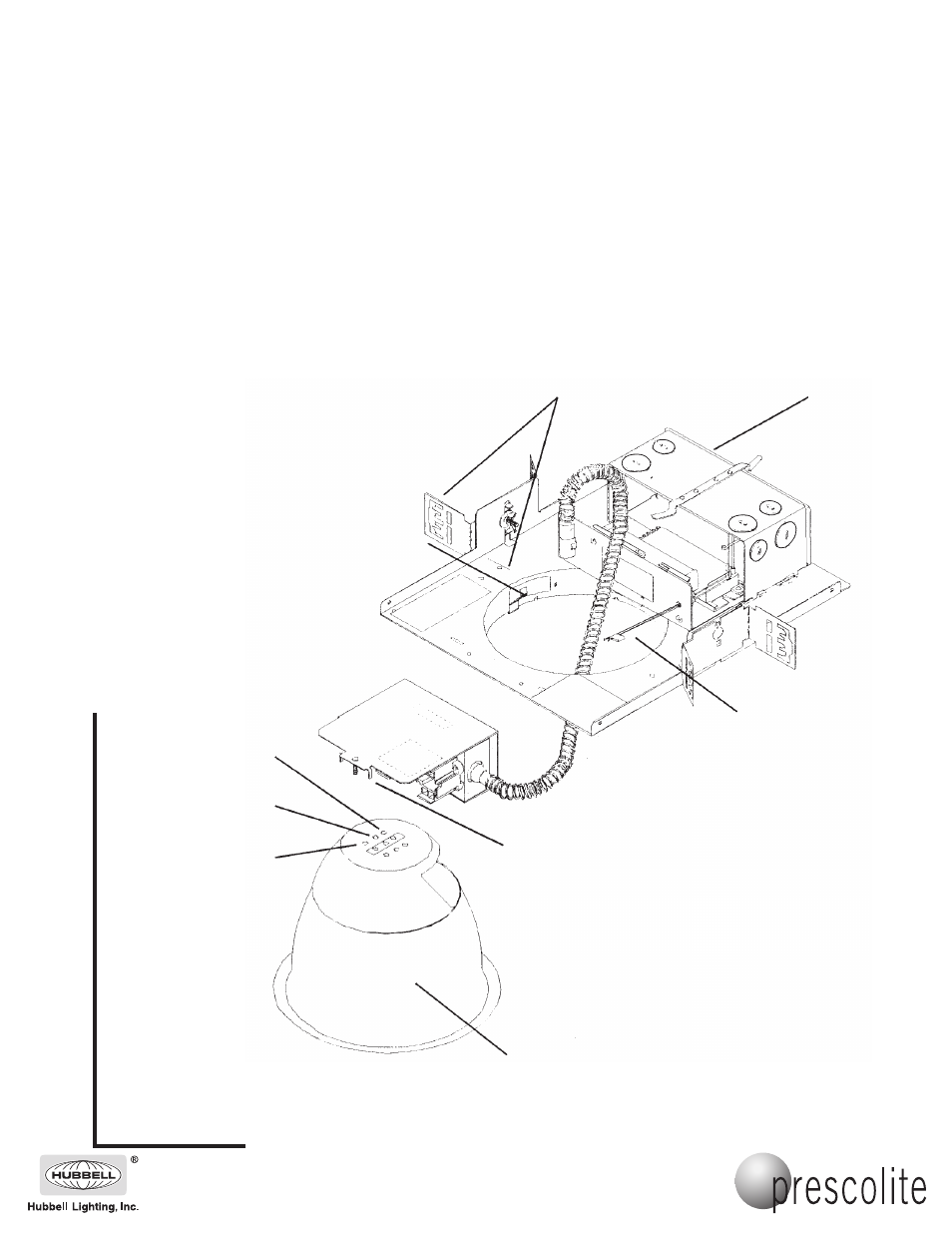

Align Brackets with

Marks on Flange

Reflector

Socket

Mounting

Bracket

CAUTION: DO NOT ATTEMPT TO MODIFY OR REWIRE FACTORY-INSTALLED WIRING ON THE FIXTURE. SAFETY AND PROPER

OPERATION OF THE FIXTURE DEPEND ON THE INTEGRITY OF THE WIRING.

1. Bend brackets as shown. Install the fixture

in the ceiling using mounting channel or

bar (by others) placed in the adjustable

mounting brackets. Mount the fixture in

the ceiling so that the weight of the fixture

is supported by the mounting channel or

bar and/or hanger wires secured to the

building structure.

2. Adjust the fixture so the bottom of the

plaster flange is flush with the finished

ceiling line and in alignment with adjacent

fixtures. Secure mounting brackets by

tightening wing nuts on either side of

the fixture.

3. Determine where the supply wiring

conduit will enter the J-Box and attach

it in conformance with the National

Electric Code.

Use this Position for 42

Watt Lamp.

Low voltage dimming wires

(Dimming units only)

Reflector

Holding

Clips (4)

Use this Position for 26

Watt Lamp.

Use this Position for 32

Watt Lamp.

J-Box Cover

4. Remove J-Box cover plate. Remove

appropriate knockout and assemble

appropriate connector for the supply wire

used. Connect ground wires to green

ground leads. Connect white (common) to

white (leads). Connect power supply (line)

to black lead(s). Reinstall J-Box cover.

WARNING: DO NOT pinch wires

between J-Box/ballast cover and J-Box.

Consult a Qualified Electrician for all

other options that require other wiring

configurations.

5. Install reflector after all ceiling installation

and finishing work is complete. Insert

socket mounting bracket into correct posi-

tion depending on lamp wattage.

6. Push reflector into the plaster flange until

the reflector is flush against the ceiling.

7. Install the proper lamps (by others).

IMPORTANT SAFETY INFORMATION. READ AND FOLLOW ALL SAFETY INSTRUCTIONS. Follow label information

and instructions concerning Wet or Damp Locations, installation near combustible materials, insulation, building materials,

and proper lamping. Do not install in areas subject to combustible vapors or gases. Before wiring to power supply and

during servicing or relamping, turn off power at fuse or circuit breaker. All servicing or relamping must be performed by

qualified service personnel. Product must be grounded to avoid potential electric shock or other potential hazard.

Product must be mounted in locations and at heights and in a manner consistent with its intended use, and in

compliance with the National Electrical Code and local codes. The use of accessory equipment not recommended by

the manufacturer or installed contrary to instructions may cause an unsafe condition. Do not block light emanating from

product in whole or part, as this may cause an unsafe condition. Do not allow items such as drapes, curtains, screens or

the like to come into contact with the product or to block light from the product, as this may cause an unsafe condition.
