Part No. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .06286500

Ins

tru

ctio

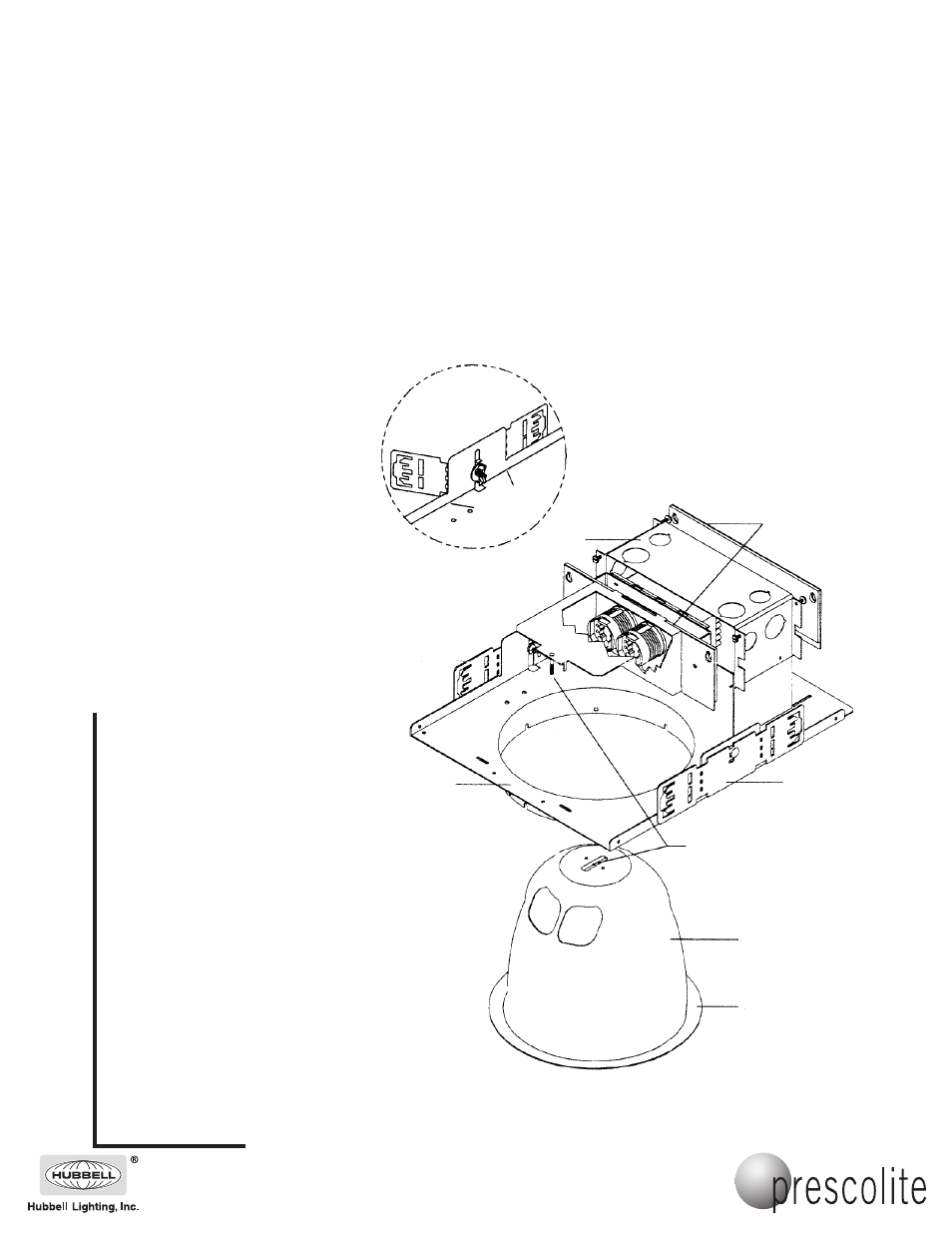

INSTALLATION INSTRUCTIONS

CFR EB/EBDMCP

Plaster Frame

JBox

Reflector Flange

CAUTION: DO NOT ATTEMPT TO MODIFY OR REWIRE FACTORY-INSTALLED WIRING ON THE FIXTURE. SAFETY AND PROPER

OPERATION OF THE FIXTURE DEPEND ON THE INTEGRITY OF THE WIRING.

1. Bend brackets as shown in detail “A”.

Install the fixture in the ceiling using

mounting channel or bar (byothers)

placed in the adjustable mounting brack-

ets. Mount the fixture in the ceiling so

that the weight of the fixture is support-

ed by the mounting channel or bar

and/or hanger wires secured to the

building structure.

2. Adjust the fixture so the bottomof the

plaster frame is flush with the ceiling line

and in alignment with adjacent fixtures.

Secure mounting brackets by tightening

wing nuts on either side of the fixture.

3. Remove J-Box cover(s) and determine

where the supply wiring conduit will

enter the J-Box. CAUTION: CONDUIT

CONNECTORS MAY INTERFER WITH

COMPONENTS HOUSED IN THE J-

BOX CHECK CLEARANCES BEFORE

REMOVING KNOCKOUTS. Attach the

Conduit in conformance with the

National Electric Code.

4. Remove J-Box cover plate. Remove

appropriate knockout and assemble

appropriate connector for the supply

wire used. Connect ground wires to

green ground leads. Connect white

(common) to white (leads). Connect

power supply (line) to black lead(s).

Reinstall J-Box cover.

WARNING: DO NOT pinch wires

between J-Box/ballast cover and J-

Box. Consult a Qualified Electrician

for all other options that require other

wiring configurations.

5. Install the reflector after all ceiling

installtion and finishing work is com-

plete. Push reflector into plaster frame

and align with threaded stud. Secure

reflector with wing nut and tighten until

reflector flange is flush to ceiling.

6. Install the proper lamps (by others).

Bend brackets in

line with marks

on flange.

Secure Reflector

to Threaded Stud

with Wing Nut

(Not Shown).

DETAIL A

J-Box Covers

Reflector

Mounting

Bracket

IMPORTANT SAFETY INFORMATION. READ AND FOLLOW ALL SAFETY INSTRUCTIONS. Follow label information

and instructions concerning Wet or Damp Locations, installation near combustible materials, insulation, building materials,

and proper lamping. Do not install in areas subject to combustible vapors or gases. Before wiring to power supply and

during servicing or relamping, turn off power at fuse or circuit breaker. All servicing or relamping must be performed by

qualified service personnel. Product must be grounded to avoid potential electric shock or other potential hazard.

Product must be mounted in locations and at heights and in a manner consistent with its intended use, and in

compliance with the National Electrical Code and local codes. The use of accessory equipment not recommended by

the manufacturer or installed contrary to instructions may cause an unsafe condition. Do not block light emanating from

product in whole or part, as this may cause an unsafe condition. Do not allow items such as drapes, curtains, screens or

the like to come into contact with the product or to block light from the product, as this may cause an unsafe condition.
