IMPORTANT SAFETY INFORMATION. READ AND FOLLOW SAFETY INSTRUCTIONS. Follow label information
and instructions concerning wet or damp locations, installation near combustible materials, insulation, building materials, and
proper lamping. Do not install in areas subject to combustible vapors or gases. Before wiring to power supply and during
servicing or relamping, turn off power at fuse or circuit breaker. All servicing or relamping must be performed
by qualified service personnel. Product must be grounded to avoid potential electric shock or other
potenial hazard. Product must be mounted in locations and at heights in a manner consistent with
its intended use, an in compliance with the National Electrical Code and local codes. The use of accessory
equipment not recommended by the manufacturer or installed contrary to instructions may cause an unsafe condition. Do not black
light emanating from product in whole or part, as this may cause an unsafe condition. Do not allow items such as drapes, curtains,
screens, or the like to come into contact with the product or to block light from the product, as this may cause an unsafe condition.
INSTALLATION INSTRUCTIONS

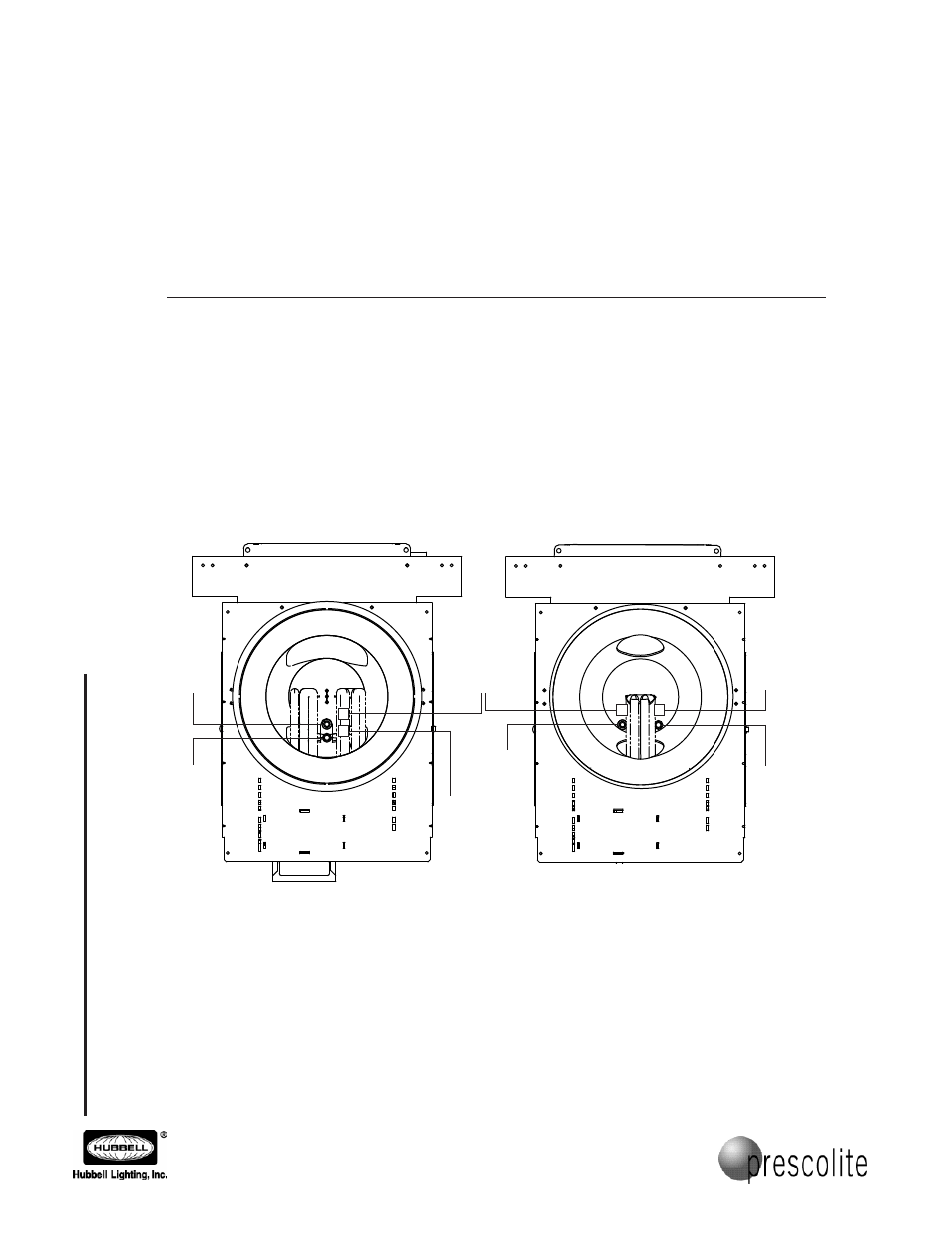

1 AND 2 HORIZONTAL LAMP
EM OPTION LABEL PLACEMENT
NOTES:
THE TEST SWITCH/LED LIGHT LABEL IS PROVIDED WITH THE FIXTURE. PLACE THE
LABEL ON THE INSIDE TOP OF REFLECTOR (REFLECTOR SOLD SEPERATELY) AS
SHOWN (THIS SHALL BE DONE BY THE CONTRACTOR).
SEE EM INSTRUCTION SHEETS FOR MAINTENANCE.
LAMPS BY OTHERS.
TEST
SWITCH
TEST SWITCH
"EMERGENCY
LIGHT PUSH
TO TEST"
LABEL
LED
LIGHT LED
LIGHT
"CHARGING
INDICATOR
LIGHT" LABEL
"CHARGING
INDICATOR
LIGHT" LABEL
DOUBLE LAMP SINGLE LAMP
VIEWS SHOWN FROM BELOW
