Prescolite D2LED - Manual (Page 2)

701 Millennium Blvd • Greenville, SC 29607
With representatives offices in principal cities throughout north america.
copyright 2011, 10/27/11 revision, all Rights Reserved - Printed in u.s.a.

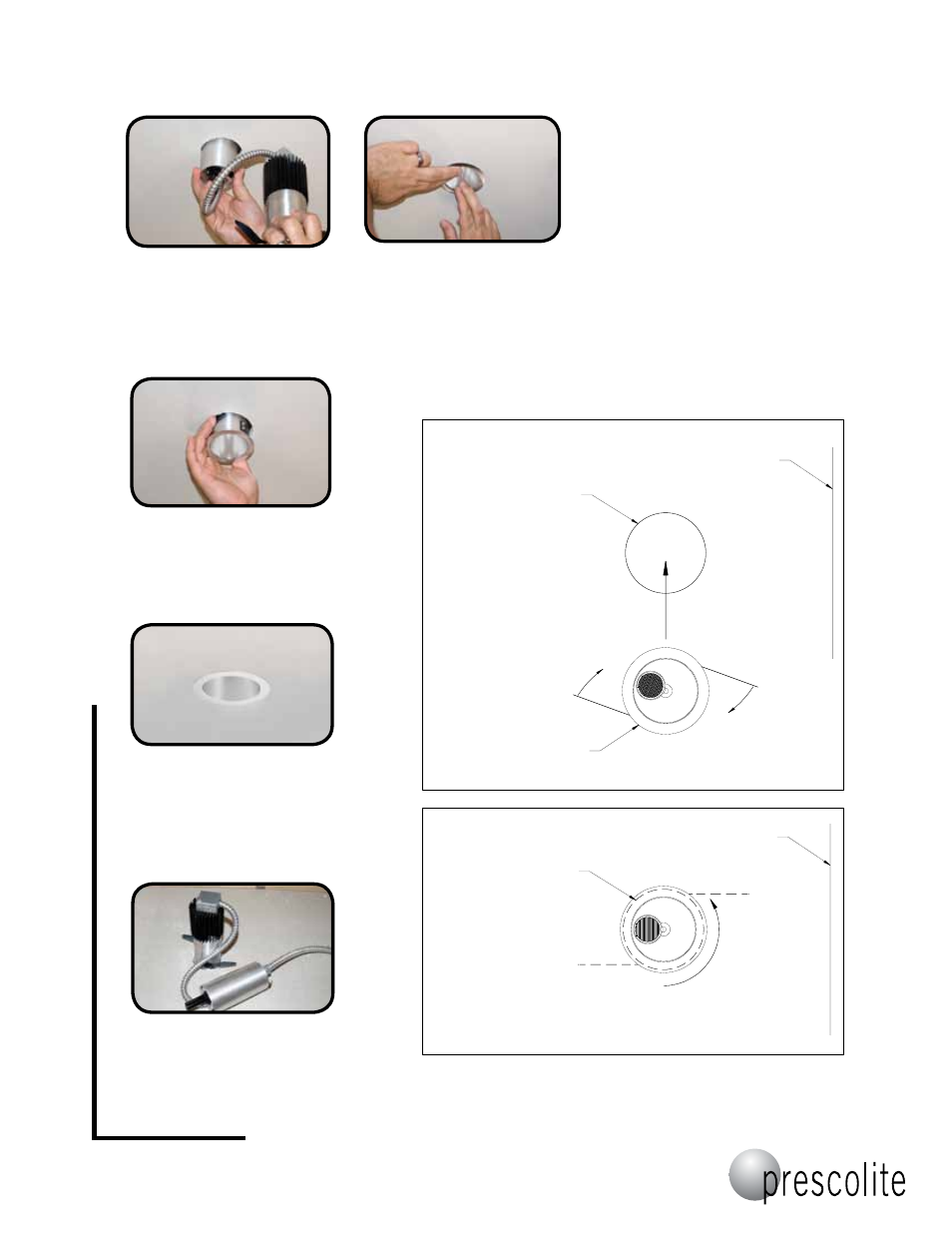

squeeze retention springs, insert
light engine assembly into the cut
out, and push until springs pop
out above the ceiling, locking the
fixture into place.
once installed, gently twist
clockwise slightly to secure firmly
against ceiling, being careful not to
leave finger prints on the reflector.
While the D2LED is designed with a life expectancy of over
50,000 hours, there may be times when you may need to
access the fixture or J-tube assembly. For this reason, the
D2LED has been designed to come out of the ceiling as
easy as it went in.
twist reflector slightly counter-clockwise while applying
slight downward pressure. then, once springs are
accessible, squeeze together and remove fixture from
ceiling.
stEP 4:
InstaLL FIXtuRE Into cEILInG REMoVaL FoR sERVIcInG
www.prescolite.com
•
Prescolite
TollFree
Technical
Support
1.888.PRS.4TEC
•
Hours:
8am
- 5pm
ET
Part no. . . . . . . . . . . . . . . . . . . . . . . . . . . . . 93036374
Instruction
Sheet
CAUTION: DO NOT ATTEMPT TO MODIFY OR REWIRE FACTORY-INSTALLED WIRING ON THE FIXTURE. SAFETY AND PROPER
OPERATION OF THE FIXTURE DEPEND ON THE INTEGRITY OF THE WIRING.
KEEP THESE INSTALLATION INSTRUCTIONS to view an installation video, go online to www.prescolite.com
Feed J-tube assembly through ceiling
cutout. the J-tube assembly has been
designed to conveniently lay on top of
the ceiling material. (notE: this fixture
is designed for use in a non-insulated
ceiling. see installed above ceiling view.)
InstaLLED aBoVE cEILInG VIEW
CEILING CUTOUT
COMPRESS SPRINGS AND
INSERT WALL WASH FIXTURE
INTO THE CEILING CUTOUT AT
AN ANGLE TO THE WALL AS SHOWN
WALL TO ILLUMINATE
CEILING CUTOUT
WALL TO ILLUMINATE
ROTATE FIXTURE
TO FACE THE WALL
AFTER IT IS SEATED
WALL WASH
FIXTURE
WALL WASH INSTALLATION:
STEP ONE
WALL WASH INSTALLATION:
STEP TWO
WALL WASH INSTALLATION
INSTRUCTION S
WHEN INSTALLING THE WALL WASH FIXTURE, IT SHOULD
BE NOTED THAT THE FIXTURE WILL ONLY TURN IN THE
COUNTERCLOCKWISE DIRECTION AFTER INSTALLATION (AS
VIEWED FROM THE ROOM SIDE). WITH THIS IN MIND,
FOLLOW THESE INSTALLATION INSTRUCTIONS:
