1. Overview

The

Pololu USB AVR programmer

[http://www.pololu.com/product/1300]

is a programmer for Atmel’s AVR

microcontrollers and controller boards based on these MCUs, such as Pololu

Orangutan robot controllers

[http://www.pololu.com/category/8/robot-controllers]

and the

3pi robot

[http://www.pololu.com/product/975]

. The programmer

emulates an STK500 on a virtual serial port, making it compatible with standard AVR programming software.
Two additional features help with building and debugging projects: a TTL-level serial port for general-purpose
communication and a SLO-scope for monitoring signals and voltage levels.

Please note that this guide applies to Pololu’s second-generation AVR programmer (pictured to the left below), not
the original, similar-looking

Orangutan USB programmer

[http://www.pololu.com/product/740]

(pictured to the right).

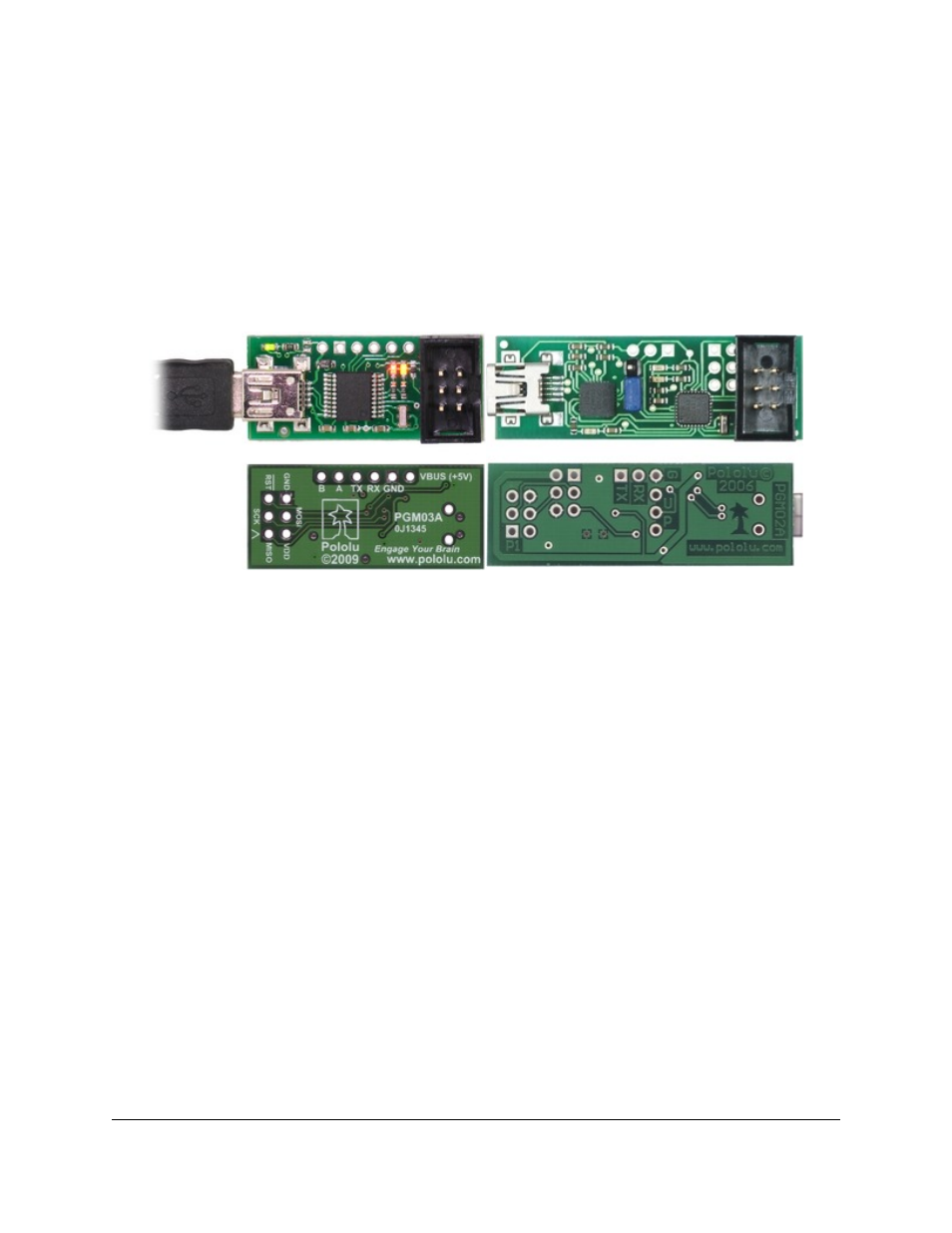

USB AVR programmer PGM03A.

Orangutan USB programmer PGM02A/B.

If you have the original Orangutan USB programmer, you can find it’s user’s guide

here

[http://www.pololu.com/docs/

0J6]

.

Important Safety Warning and Handling Procedures

The USB AVR programmer is not intended for young children! Younger users should use this product only under
adult supervision. By using this product, you agree not to hold Pololu liable for any injury or damage related to the
use or to the performance of this product. This product is not designed for, and should not be used in, applications
where the malfunction of the product could cause injury or damage. Please take note of these additional precautions:

• The USB AVR programmer contains lead, so follow appropriate handling procedures, such as washing hands
after handling.

• Since the PCB and its components are exposed, take standard precautions to protect your programmer from
ESD (electrostatic discharge), such as first touching the surface the programmer is resting on before picking
it up. When handing the programmer to another person, first touch their hand with your hand to equalize any
charge imbalance between you so that you don’t discharge through the programmer as the exchange is made.

Pololu USB AVR Programmer User's Guide

© 2001–2014 Pololu Corporation

1. Overview

Page 3 of 54
