Release 7.0 Apr 2010 44
Pegasus User’s Guide
(2) Ferry mission: Payload integration is
conducted at VAFB and launch operations are
conducted from a non-VAFB launch location.
(3) Campaign mission: Payload integration and
launch operations are conducted at a site
other than VAFB.
For the baseline and ferry missions, spacecraft
pre-launch operations are conducted at Orbital’s
VAB, Building 1555, VAFB. For campaign style
missions, the spacecraft pre-launch operations are
performed at the desired launch site.
Before a spacecraft arrives at the processing site,
the payload organization must provide the
cognizant range safety office with certification that
the system has been designed and tested in
accordance with applicable safety requirements
(e.g., AFSPCMAN 91-710, Range Safety
Requirements for Baseline and Ferry Missions).
Spacecraft that integrate and/or launch at a site
different than the processing site must also comply
with the specific launch site’s safety requirements.
Orbital will provide the customer coordination and
guidance regarding applicable safety
requirements.

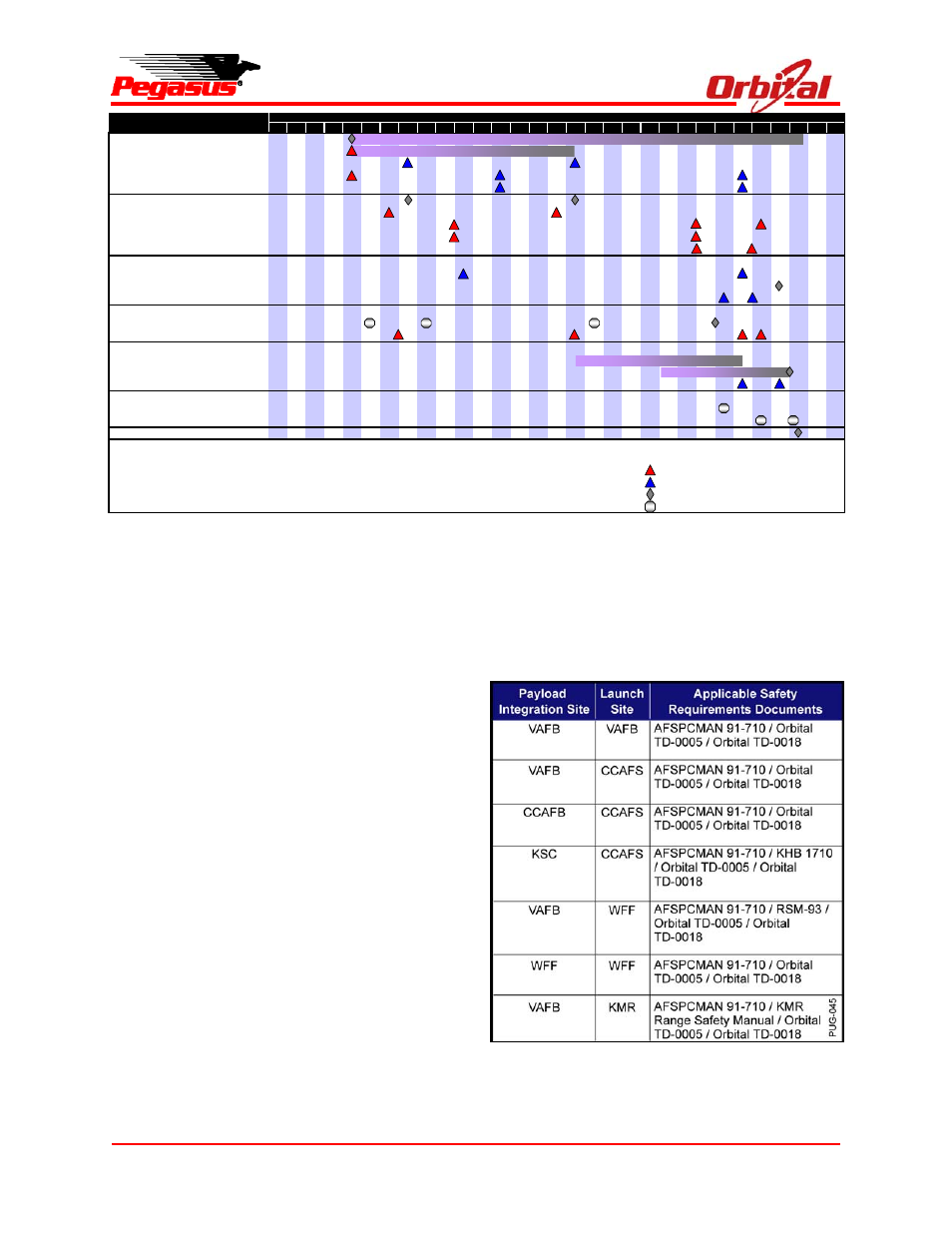

Figure 6-4 provides a matrix of the governing
safety requirements for demonstrated and planned
Pegasus payload integration flow. The Orbital
documents listed in the matrix closely follow the
applicable range safety regulations.
Figure 6-4. Applicable Safety Requirements
28 27 26 25 24 23 22 21 20 19 18 17 16 15 14 13 12 11 10 9 8 7 6 5 4 3 2 1 L 1 2
Mission Integration 
Interface Development
InterfaceControl Document
Mission Analysis
Coupled Loads Analysis
Payload Milestones (P/L Dependent)
Drawings
Mass Properties
Finite Element Model
Integrated Procedures
Range Documentation (UDS)
Launch Vehicle
Range Documentation (UDS)
Flight Plan/Trajectory
Safety Process
Payload Safety Reviews
Safety Documentation
Operations Planning
Ground Operations
Launch Operations
Launch Checklist/Constraints
Program Reviews
Launch Vehicle Hardware Review
Readiness Reviews
Initial Launch Capability (ILC)
ATP Authority to Proceed MRR Mission Readiness Review UDS Universal Documentation System
ARAR Accident Risk Assessment Report OD Operations Directive VAB Vehicle Assembly Building
CDR Critical Design Review OR Operation Requirements Document Payload Document
ICD Interface Control Document PDR Preliminary Design Review Launch Vehicle Document
ILC Initial Launch Capability PRD Program Requirements Document Milestone
LRR Launch Readiness Review PSP Program Support Plan Review
L-Months
Activity
Mission Integration Working Groups
Requirements Development
ATP
Interface Requirements
Draft Final
Fiinal
Fiinal
Mission Requirements Preliminary
Preliminary
PDR CDR
Preliminary Final
Final
Preliminary
Preliminary
Preliminary Correlated
As-Weighed
PRD Mission Annex OR
OD
Final Preliminary
Kickoff Preliminary Final Ground Safety
Preliminary ARAR Final ARAR Final Procedures Preliminary Procedures
Final Draft
Ground Operations Working Group
Launch Operations Working Group Rehearsal
Motor Pre-Ship Review
MRR LRR
ILC
Final
Figure 6-3. Typical Mission Cycle
