49

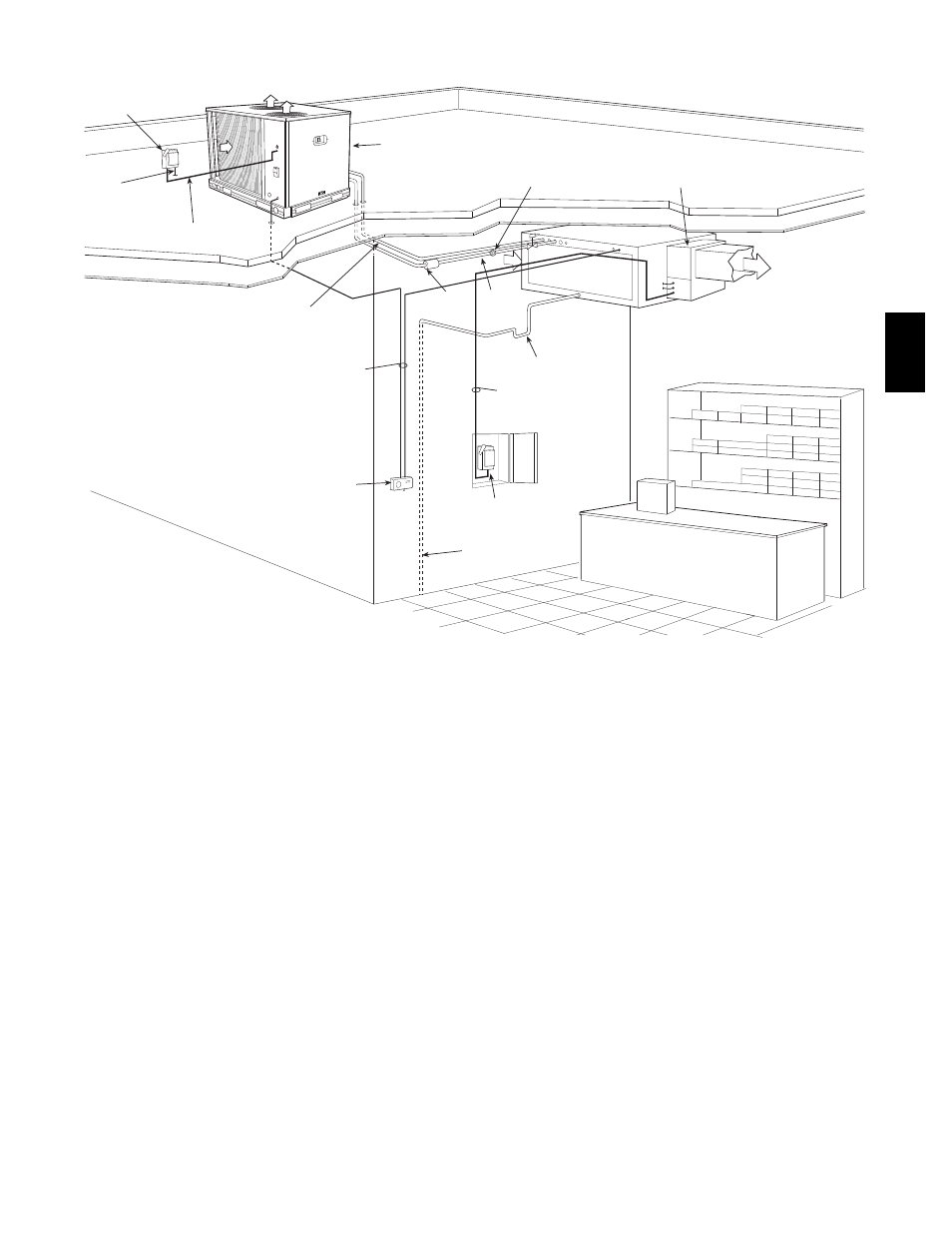

TYPICAL PIPING AND WIRING
WEATHERPROOF
FUSED DISCONNECT*
PER NEC
FIELD-
SUPPLIED
POWER
INSULATED
VAPOR
LINE
POWER WIRES
CONTROL
WIRES
INDOOR
THERMOSTAT†
OUTDOOR
MOISTURE
INDICATOR
SIGHT GLASS* ELECTRIC
HEATER
ACCESSORY
INDOOR
UNIT
LIQUID
LINE FILTER
DRIER*
CONDENSATE DRAIN
POWER WIRES
FUSED DISCONNECT
PER NEC
TO OPEN SIGHT
DRAIN
LLSV*
UNIT
C09054
LEGEND:
NEC --- National Electrical Code
TXV --- Thermostatic Expansion Valve
* Field---supplied
{
Double riser may be required. Consult condensing unit product data catalog for details.
NOTES:
1. All piping must follow standard refrigerant piping techniques. Refer to Bryant System Design Manual for details.
2. All wiring must comply with the applicable local and national codes.
3. Wiring and piping shown are general points-of-connection guides only and are not intended for, or to include all details for, a specific
installation.
4. Liquid line solenoid valve (solenoid drop control) is recommended to prevent refrigerant migration to the compressor.
5. Internal factory-supplied TXVs not shown.
569J
