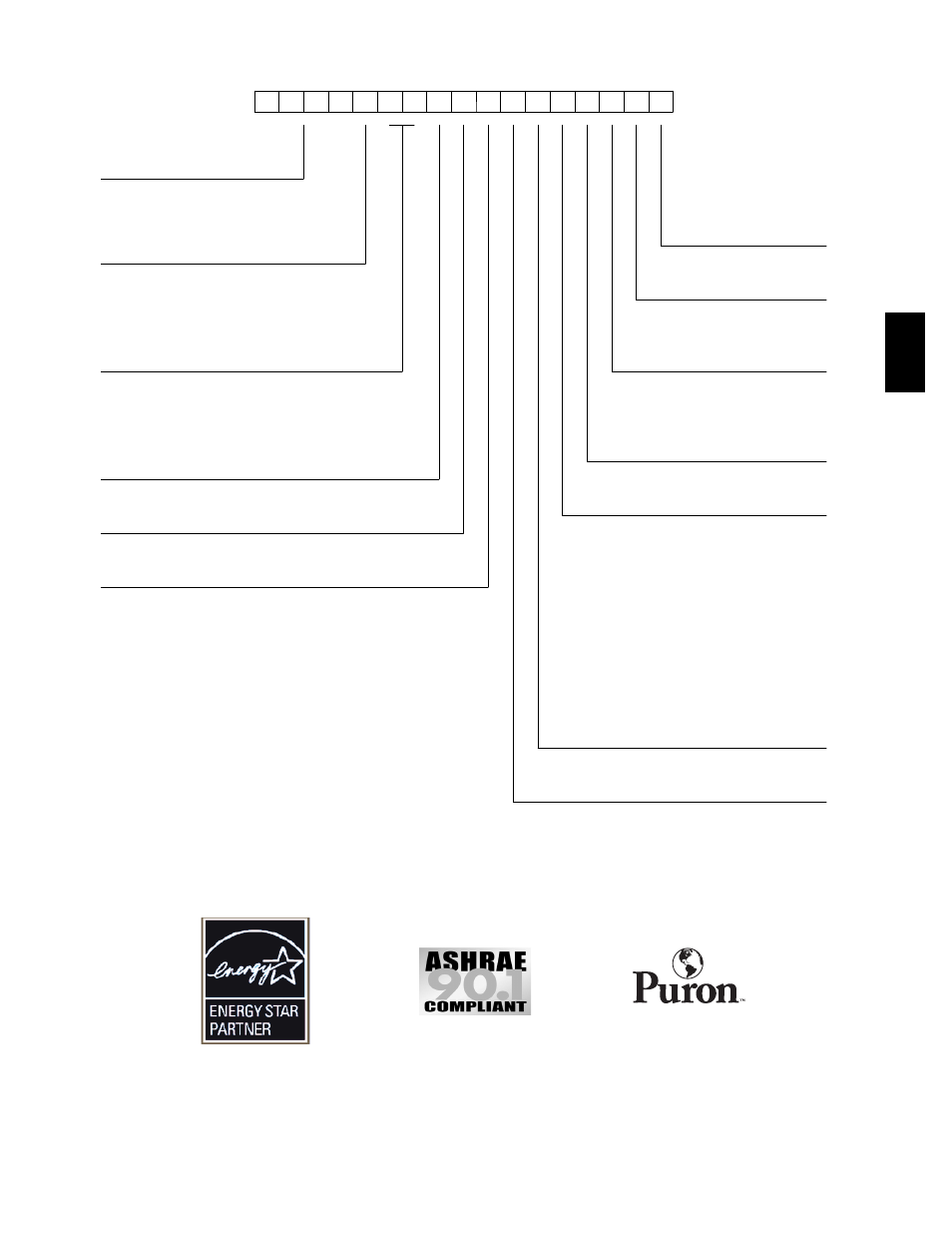

MODEL NUMBER NOMENCLATURE
1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17
5 6 9 J E 1 4 A 0 0 0 G 0 0 A 0 A
_____________
Model Type
569J = Bryant Condensing Unit
Puronr R---410A Refrigerant
Voltage Packaging
E = 460/3/60 A = Standard
P = 208/230/3/60 B = LTL
T = 575/3/60
Base Unit Controls
Nominal Tonnage 0 = None
07 = 6 Tons 16 = 15 Tons
08 = 7.5 Tons 25 = 20 Tons Electrical Options
12 = 10 Tons A = None
14 = 12.5 Tons C = Non---Fused Disconnect
Refrigerant Circuit Service Options
A = Single Circuit 0 = Electro---Mechanical Controls
B = Single Circuit with Low Ambient Controller 1 = Unpowered Convenience Outlet
D = Dual Circuit 2 = Powered Convenience Outlet
E = Dual Circuit with Low Ambient controller
Factory Assigned
Factory Assigned 0 = Default
0 = Default
Coil Options --- Condenser (07---16 models)
Factory Assigned G = Al/Al
0 = Default K = E---Coat Al/Al
T = Al/Al with louvered hail guard
W = E---Coat Al/Al with louvered hail guard
Coil Options --- Condenser (25 model only)
A = Al/Cu Standard
B = Pre---Coated Al/Cu
C --- E---Coat Al/Cu
M = Al/Cu Standard with louvered hail guard
N = Pre---Coated Al/Cu with louvered hail guard
P = E---Coat al/Cu with louvered hail guard
Factory Assigned
0 = Default
