46

CELSIUS 10.0

7.8

Programme language

The programme and the menus can be displayed in five different languages. How you can

change the languages is described on page 13 .

7.9

Connection details

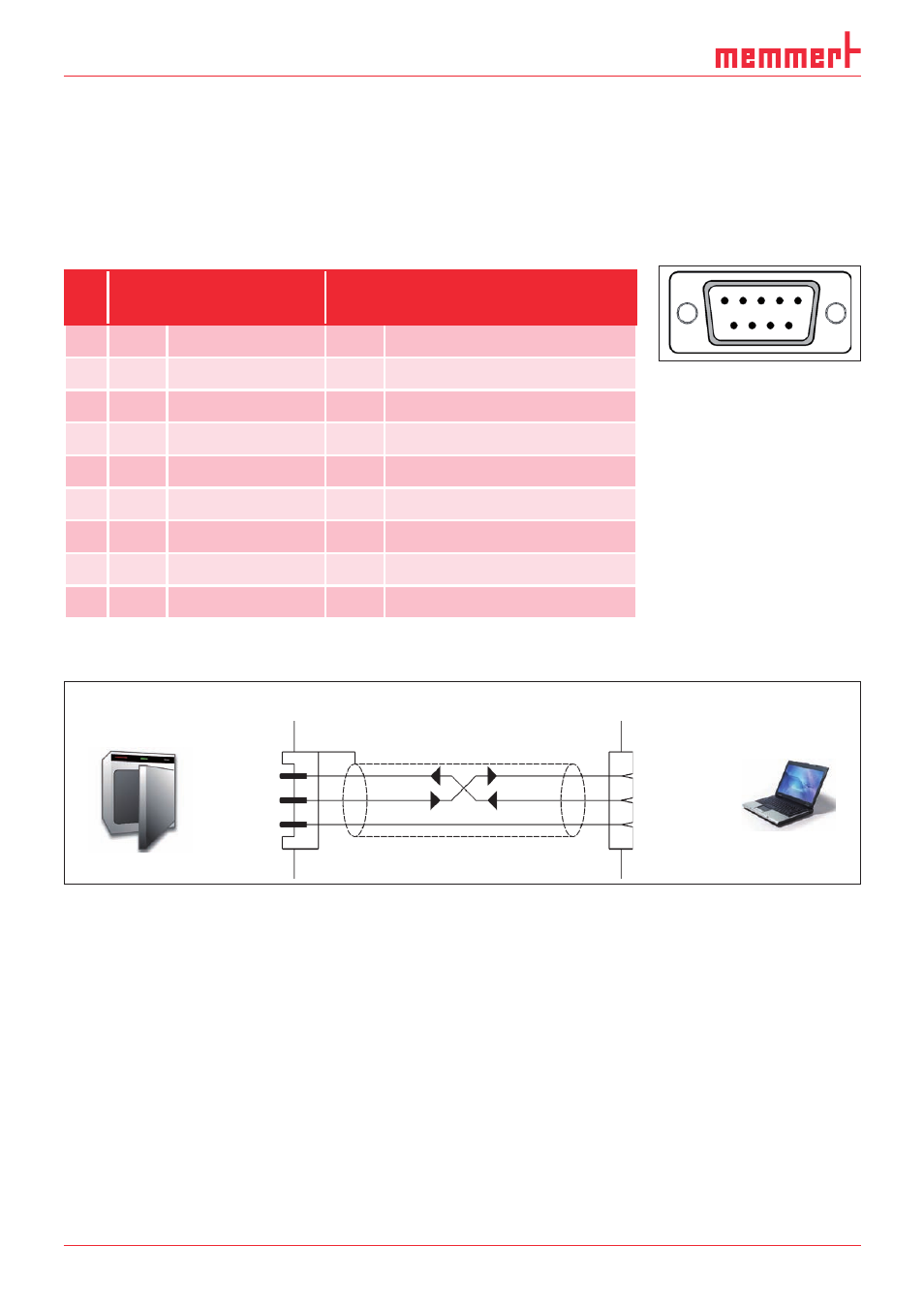

7.9.1 Pin assignment RS-232 and RS-485

Pin assignment RS-

232

Pin assignment

RS-485

1

not occupied

2

RxD Received data

3

TxD Send data

B

Send and receive data

4

not occupied

5

GND Signal ground

6

not occupied

7

not occupied

8

not occupied

A

Send and receive data

9

not occupied

7.9.2 Interface cable for RS-232 in accordance with DIN 12900 part 1

1

2

3

RxD 2

TxD 3

GND 5

2 RxD

3 TxD

5 GND

8 Pin contacts (male)

9 Screening

10 Spring contacts (female)

Use screened interface cables

Connect screening at one end to the plug casing

A standard-compliant connecting cable can be purchased from the company MEMMERT

under the name V6. The protocol description of the interface (according to NAMUR) can be

requested from MEMMERT customer service.

1

3

8

2

7

9

5

4

6
