CELSIUS 10.0

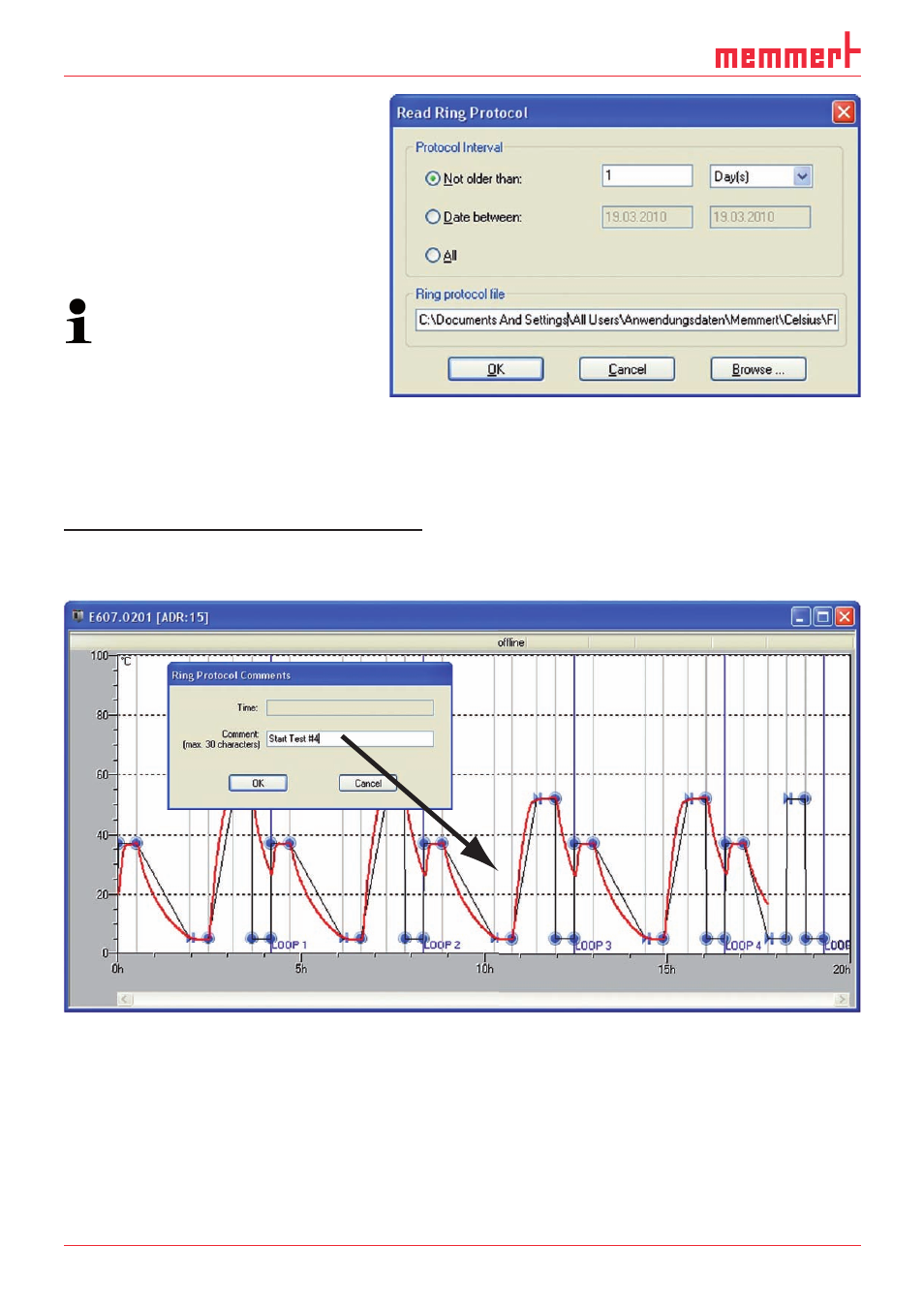

After data have been read in, a
selection dialog appears. Here you
can select the period of time for
which you would like to display a
protocol. The protocol is read from
the bin file that was previously
transferred by the oven, and which is
displayed in the entry field "Ring
Protocol File".
If the protocol data for the se-
lected period of time need more
main memory than is made avail-
able by the computer, a warning
appears. In this case, you should
make the period of time shorter.
With "Browse", you can open protocol files of other ovens that have already been transferred
in the format *. . No oven needs to be logged on for this. You can also run this function via
"File"→" Load Protocol Data"→"From File ( Ring Protocol Memory *. bin)"
Adding comments to the ring protocol
You can add comments later on to the ring protocol file. The comment is displayed as text in
the protocol window for the corresponding point in time:
Start T
est
#4
Position the mouse cursor in the graphic window at the point at which you would like to add
a comment (max. 30 characters). Press the right mouse button. In the window that opens,
you can enter the comment and save it with OK.
An added comment can also be changed later. To do this, right click on the comment. It is
recommended that you select the highest zoom level so that you can select exactly the same
point in time.
