Memmert CELSIUS 10.0 - Manual (Page 22)

22
CELSIUS 10.0
4.2 Connect ovens with an RS-232 interface
To connect an oven with an RS-232 interface, a
twisted RS-232 connection cable in accordance
with DIN 12900 part 1 is required (see also page

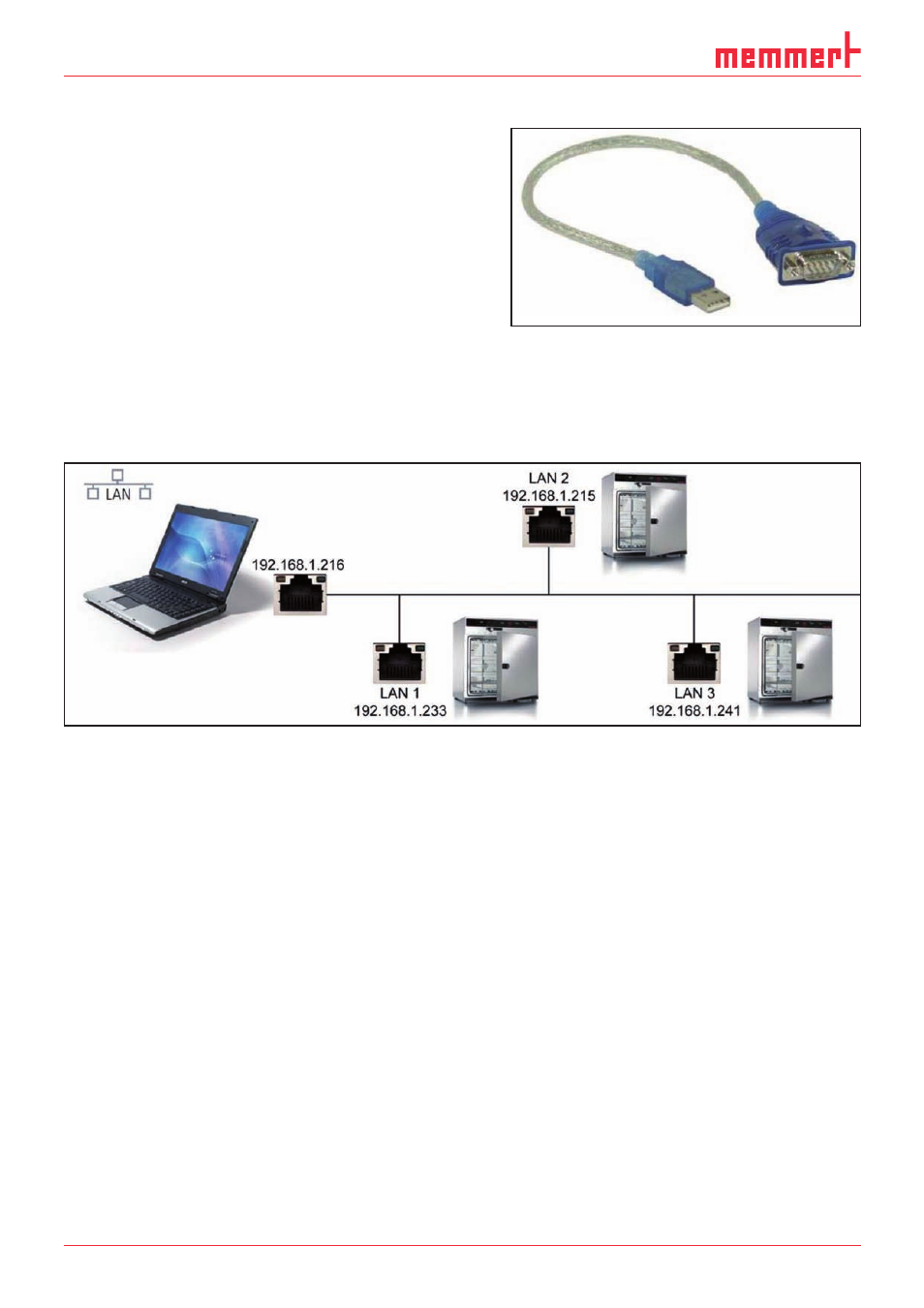

48 ). If the computer has no nine-pin RS-232
interface, then a USB–RS-232 adapter is addition-
ally required (available in specialist shops, see
figure on the right).
Connect the RS-232 connection of the oven to the
RS-232 or USB connection of the computer and log
on the oven in CELSIUS as described on page 25 .
4.3 Connect ovens with an Ethernet interface to a network ( LAN)
For identification purposes, each oven that is to be connected to a network ( LAN) should have
its own unique IP or DNS address (e.g. firmxyz.dyndns.org). Schematic example:
Each oven is delivered by default with the IP address 192.168.100.100. The programme
"XTADMIN", which can be found on the CELSIUS CD-ROM, can be used to change the IP ad-
dress of the oven.
