6.1.5 Working in the tabular view
The tabular view of a tempering profile can be displayed
► with the icon in the toolbar
► via "View"→"Table" in the menu bar
In the table window, the tempering profile is shown as a table. The individual adjustment
options are displayed in columns. What columns are displayed depends on the oven and how
it is configured. Time, duration and temperature can be entered or modified via the keyboard.
Inadmissible entries are simply ignored, with no messages. Settings that are only available in
certain predefined values (in the example below, type, flap and fan), can be specified via drop-
down menus.
In contrast to the graphical view, protocol values are not shown in the table window.
8 9
Time
hh:mm
Period
hh:mm
Flap Type Fan
Edit Profile
2 1 3 4 5 6 7

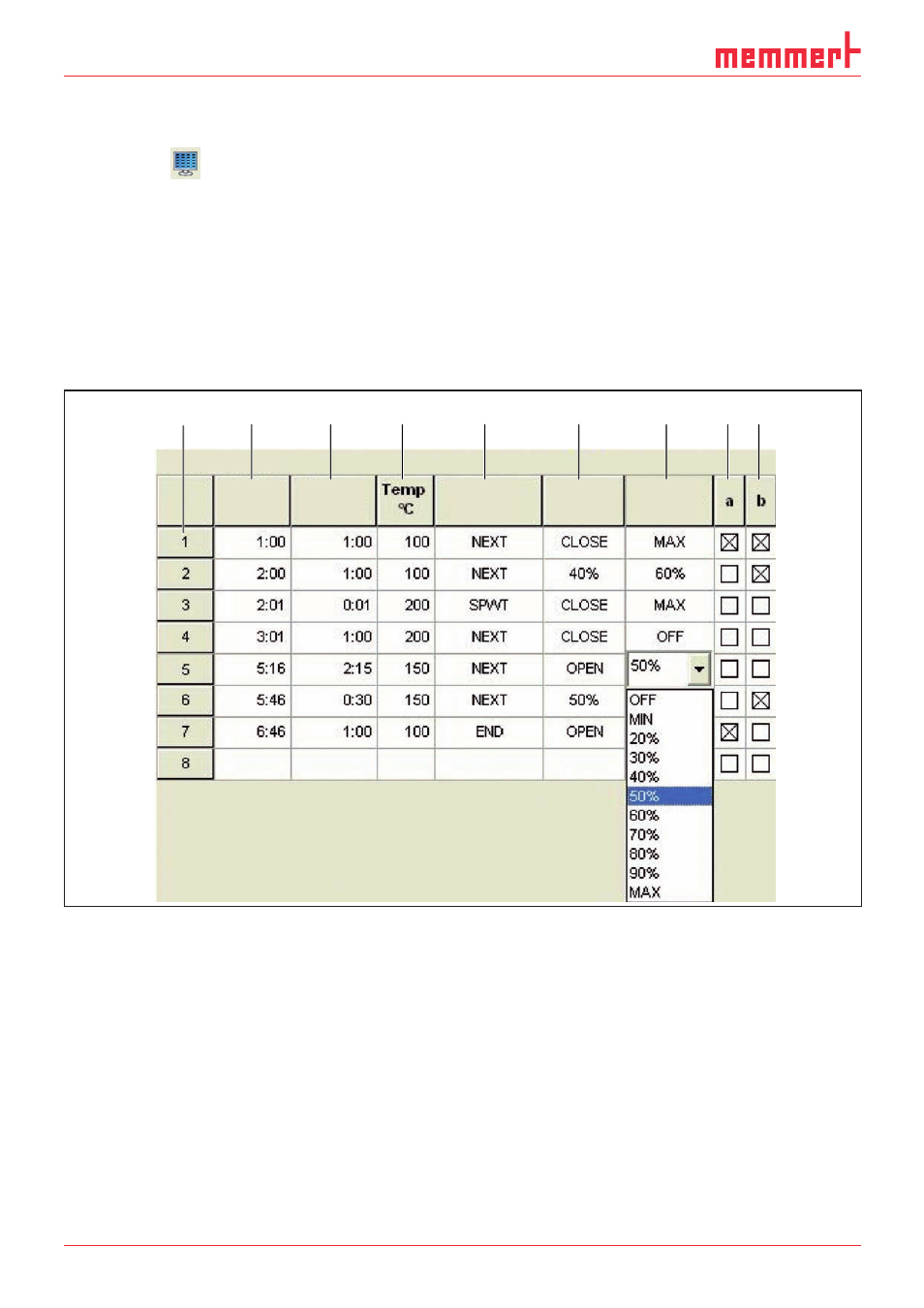

Tabular View (example)
1 Ramp segment No. ...
2 Beginning of ramp segment after programme start
3 Duration of the ramp segment
4 Temperature in the ramp segment
5 Ramp close statement (see page 30 )
6 Flap position
7 Fan speed
8 Position of switching contact a
9 Position of switching contact b
In addition to the ramp segments entered, the table always shows an empty line (in the exam-
ple: line 8). A further ramp segment can be added here.
