38

CELSIUS 10.0

6.2

Protocol

A protocol is the recording of the actual physical values that prevail in the oven while a

tempering profile is running (e.g. temperature, humidity, air pressure and CO

2

content). This

allows a comparison to be made between the desired (set) and the actual values.

6.2.1 Types of Protocols

Protocol values can be generated and recorded in three ways:

in the internal ring protocol memory of the oven. Each oven automatically records all

actual values of up to several months. If the memory is full, the oldest entries are overwrit-

ten. These protocol data can be read out with CELSIUS, transferred to the PC, saved in

*.bin file format or be further processed (see page 39 ).

When a tempering profile is run via CELSIUS, the protocol data (actual values) are dis-

played as continuous curves in the graphic window and can be saved (file format *. pro)

(see next section).

Protocol values can be stored on the MEMoryCard in the oven.

6.2.2 Recording the actual progression

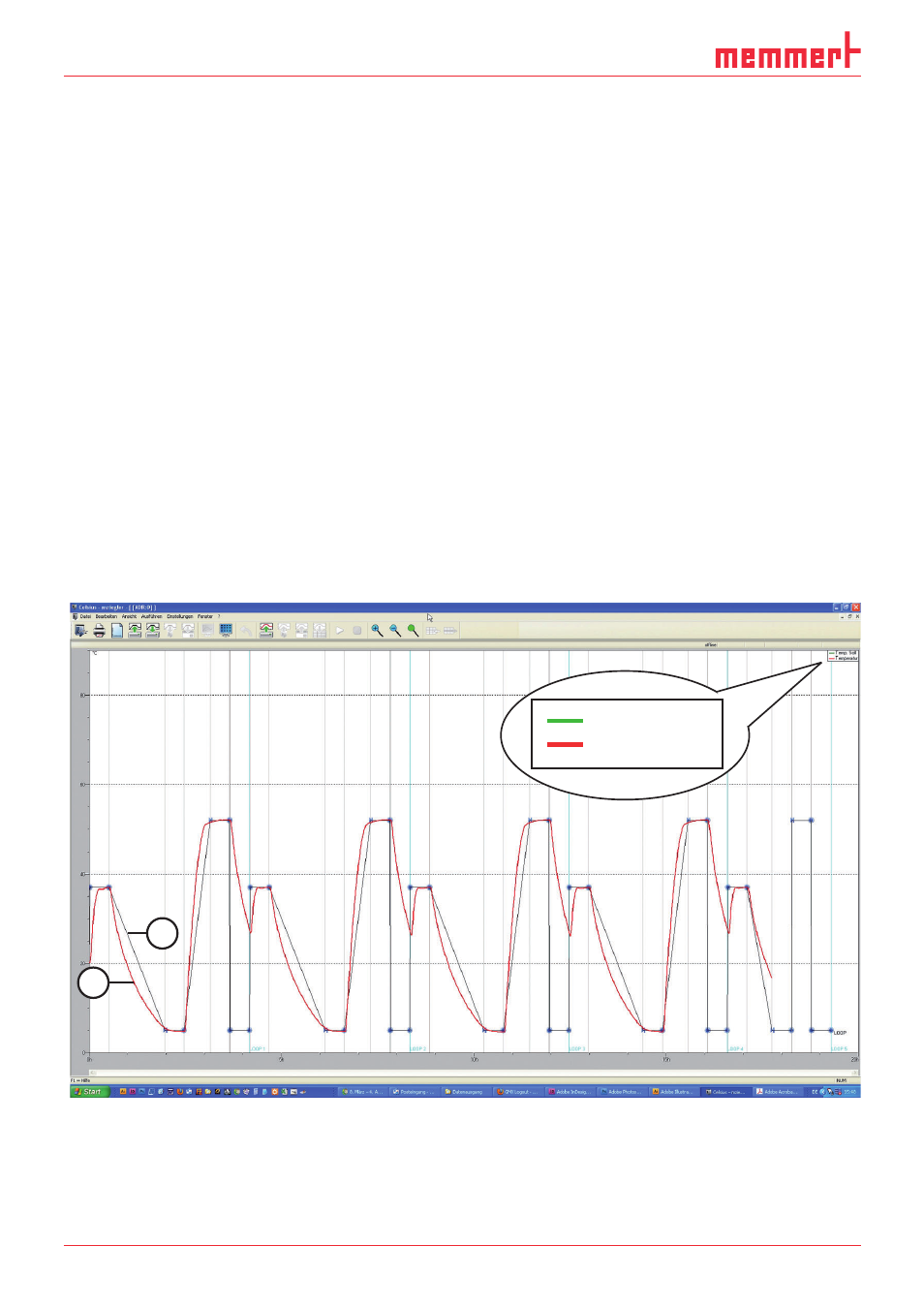

When a tempering profile is run, the actual values of the oven are displayed in the graphical

view as colour curves (1) which follow the tempering profile (2). Each colour represents a dif-

ferent value (e.g. temperature, humidity), explained in a colour legend at the top right of the

window:

Temp. Set

Temperature

1

2

The display of the colour legend can be switched on and off in the in the menu via

"Settings"→"Show Color Legends".
