4 L S94H201E_13426446_EN
About These Instructions
This documentation pertains to the PositionServo drive with Hardware Version 2. This documentation contains
important technical data regarding the installation, operation and commissioning of the drive. Observe all
safety instructions. Read this document in its entirety before operating or servicing a PositionServo drive.
Drive Hardware Version
For hardware version 2, the drive dataplate (identification label) displays “2” in the fourth to last digit of the
drive indentification number. Refer to “E” designation in the drive identification label. Upon power-up the
drive LED display will read “9402” to indicate 940 PositionServo, hardware version 2.
If upon power-up the drive LED reads “940”, the drive has hardware version 1. Refer to User Manual
S94PM01 for hardware version 1 drives.

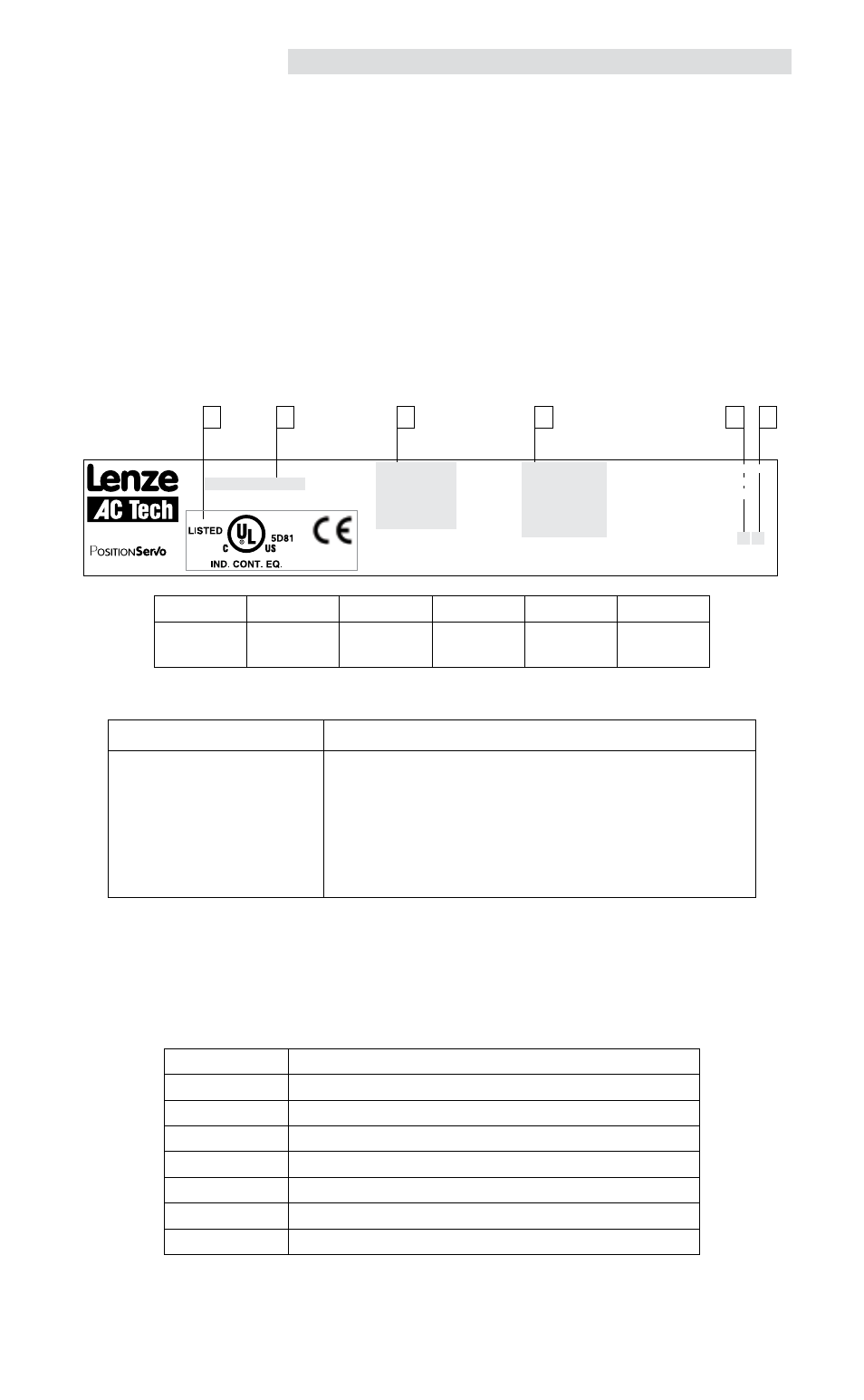

Drive Identification Label
C A B D E F
Type:
E94P120Y2NES
ID-No: 13014745
INPUT: 1(3)/PE
120/240 V
24.0 (13.9) A
50-60 HZ
OUTPUT: 3/PE
0 - 230 V
12.0 A
For detailed information
refer to instruction
Manual: S94H201
SN: 13014745012345678
E94P120Y2NES0XX2# ##
Made in USA
Model 940
13014745012345678
A B C D E F
Certifications Model
Number
Input
Ratings Output
Ratings Hardware
Version Software
Version
Package Contents
Scope of Supply Important
1 Model PositionServo:
Type E94P or E94R
1 Mounting Instructions (English)
1 MotionView CD ROM including:
- configuration software
- documentation
After reception of the delivery, immediately check whether the scope
of supply matches the accompanying papers. Lenze- AC Tech does
not accept any liability for deficiencies claimed subsequently.
Claim:
- visible transport damage immediately to the forwarder
- visible deficiencies / incompleteness immediately to your Lenze
representative.
Related Documents
The documentation listed herein contains information relevant to the operation of the PositionServo and
MotionView OnBoard. To obtain the latest documentation, visit the Technical Documentation section of
http://www.lenze.com.
Table 1: Reference Documentation
Document # Description
P94MI01 PositionServo (with MVOB) Mounting Instructions
PM94H201 PositionServo (with MVOB) Programming Manual
P94MOD01 Position Servo ModBus RTU over RS485 ; Modbus TCP/IP
P94CAN01 PositionServo CANopen Communications Reference Guide
P94DVN01 PositionServo DeviceNet Communications Reference Guide
P94ETH01 PositionServo EtherNet/IP Communications Reference Guide
P94PFB01 PositionServo PROFIBUS Communications Reference Guide
