Parameters
5.2 Motor
The motor folder displays the data for the currently selected motor. A motor may be selected from the
database or a custom motor may be configured.
5.2.1 Motor Setup

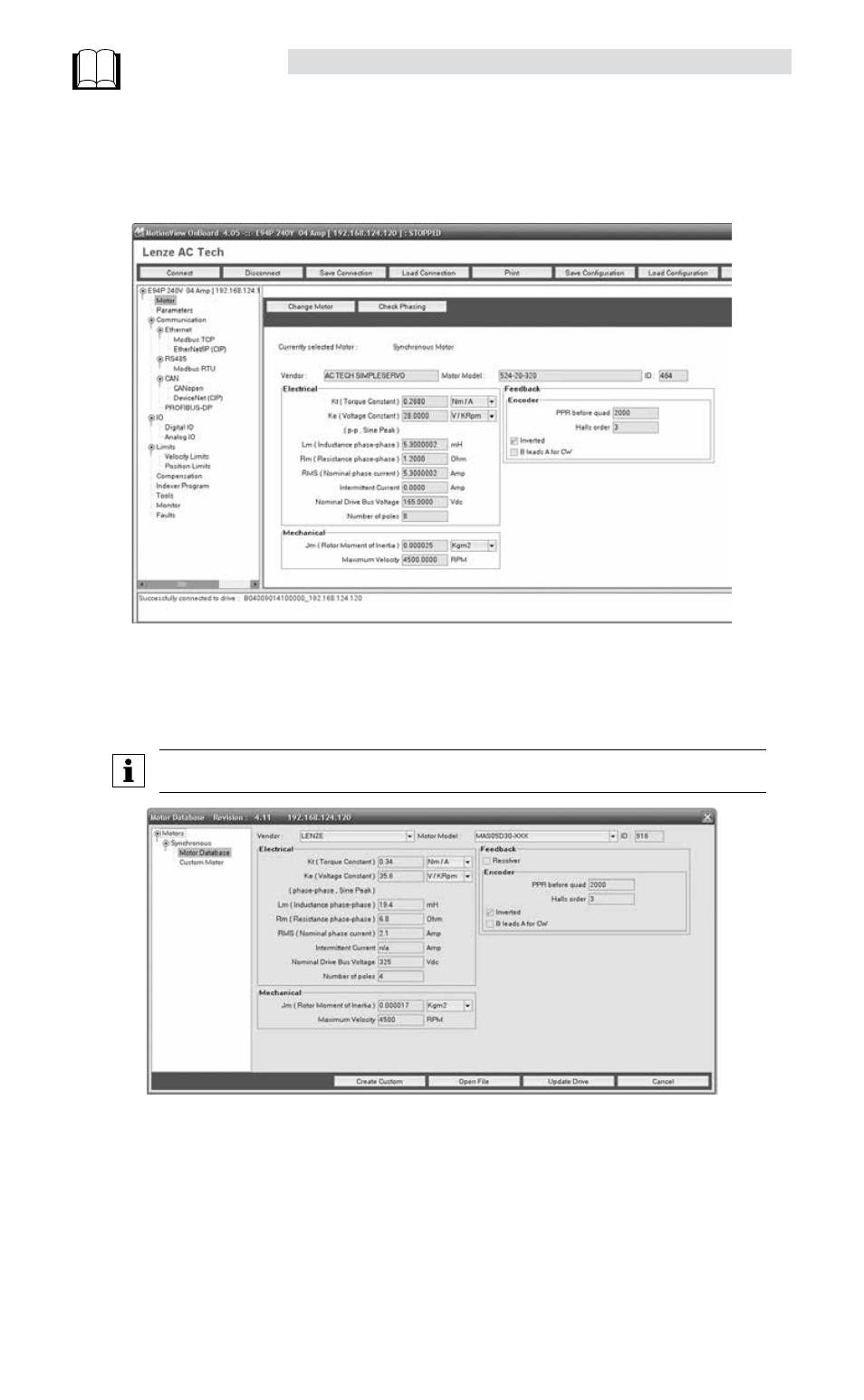

Select the [Motor] folder in the right-hand “Parameter View Window”. To select a new motor click the
[Change Motor] button. When [Change Motor] is selected, the Motor Database dialog box will open. Select
the Motor Type from the node tree in the left-hand window.
NOTE: The drive must be is DISABLED (display: “diS”) to setup a new motor.
To make a new motor selection:
• Click [Change Motor] in the Parameter View Window.
• Select motor Vendor and Motor Model from the pull down menus.
• Click [Update Drive] to complete the motor selection, dismiss the dialog box and return to MotionView
OnBoard’s main program.
• If using a motor not listed in the current motor database, select [Create Custom] and refer to section
5.2.2 “Using a Custom Motor”.
