Installation

Electrical installation

Communication via CAN

5

l

21

EDSMF2181IB EN 3.0

5.2.2

Communication via CAN

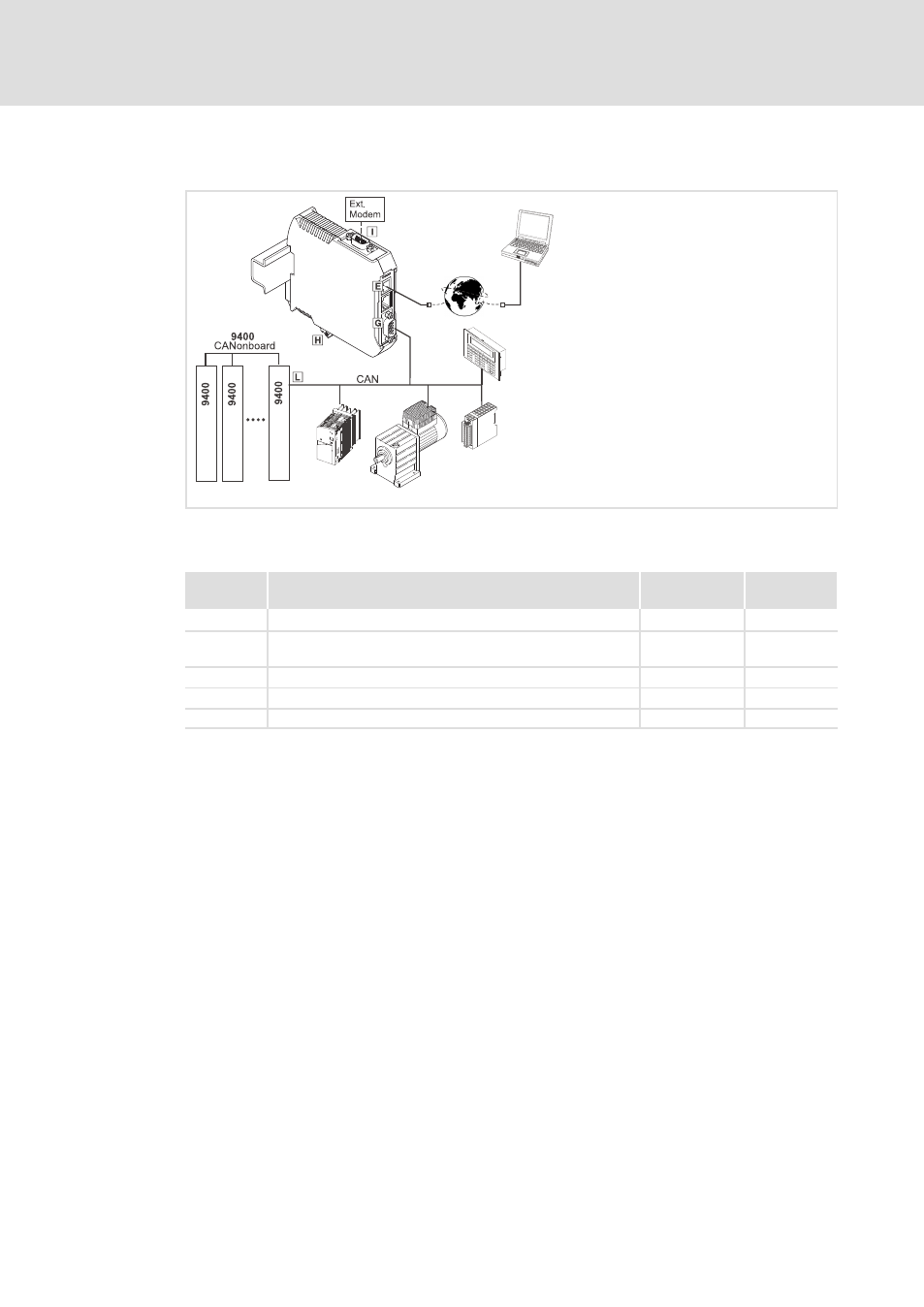

2181FEW008

Fig. 5−3

Communication via the CAN bus

Installation steps

Step

Description

Connection

(see graphics)

Additional
information

1.

Plug the Sub−D plug (EWZ0046) into the ModemCAN 2181.

6

^ 24

2.

If it’s not possible to use the internal modem, connect an
external modem.

8

^ 28

3.

Connect the inverter to the CAN bus.

;

−

4.

Connect the ModemCAN 2181 to the telephone network.

4

^ 29

5.

Connect the voltage supply to the plug connector.

7

^ 23
