Communication manual 8400 motec PROFINET

Commissioning

Setting the IP configuration

EDS84DMOTPNET EN 2.0 - 11/2011

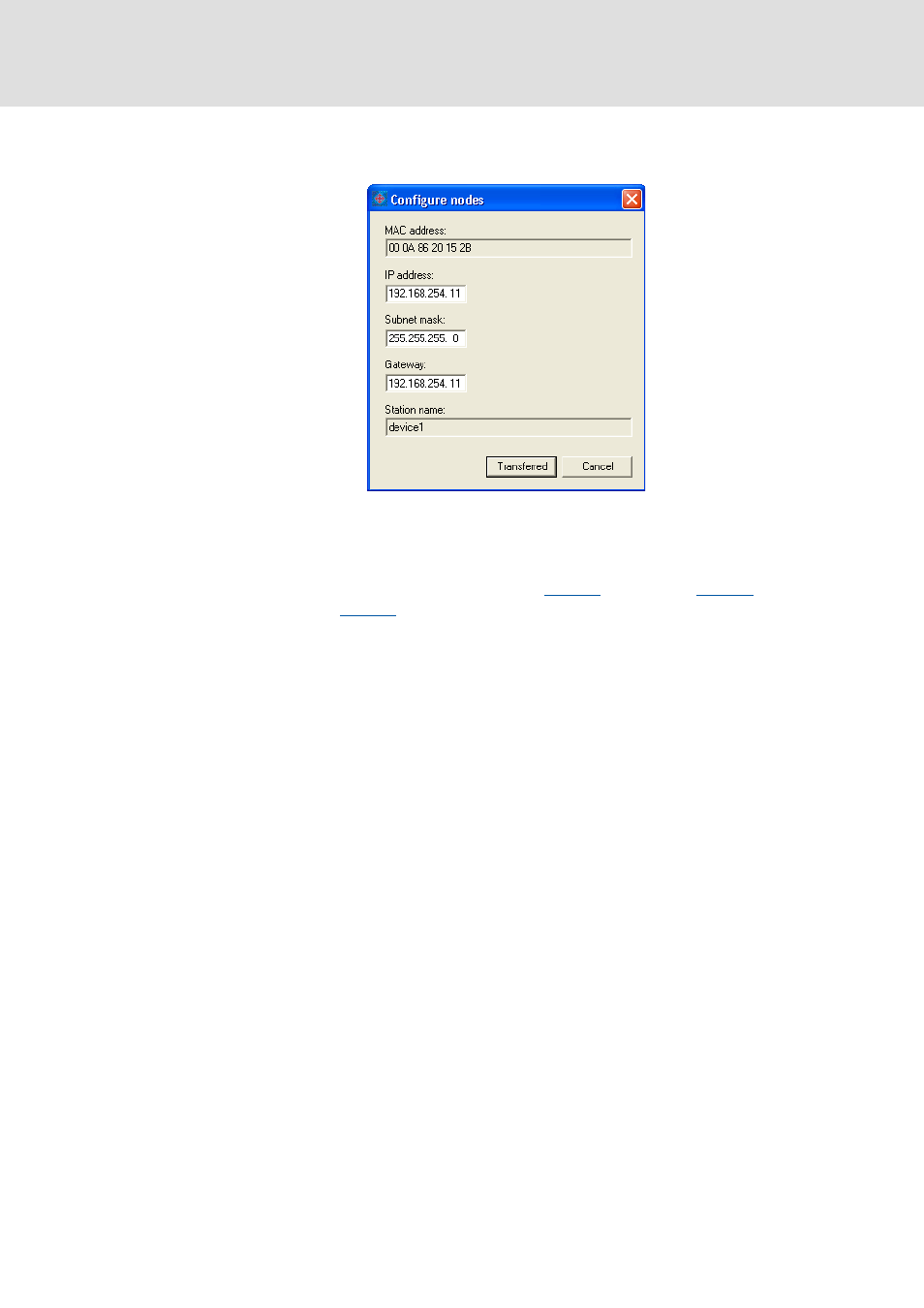

2. By double-clicking on the individual IP parameters, you can set the IP configuration

for each PROFINET node in the Configure nodes dialog window.

3. Click Transferred.

• The IP configuration is transferred to the corresponding PROFINET node.
• Changes in the IP parameters will become effective immediately.
• The IP parameters are written to codes

C13000

(IP address),

C13001

(subnet

mask), and

C13002

(gateway address) of the Communication Unit.



Tip!
By clicking the Find device button in the Assign IP addresses dialog window (see

step 1), you can check whether the configuration was transferred successfully.
With device command C00002 = "11: Save all parameter sets", the current IP

configuration is saved non-volatilely in the memory module.
