11.3 Diagnostic data
 Pending diagnostic data are signalised by the master via an alarm message to the slave.
 Errors and warnings in the standard device and the plugged-in module are transmitted
to the master as extended diagnostic messages.
 The diagnostic data can be viewed via the hexadecimal representation of the
Engineering tool.
Error code of the Inverter Drive 8400

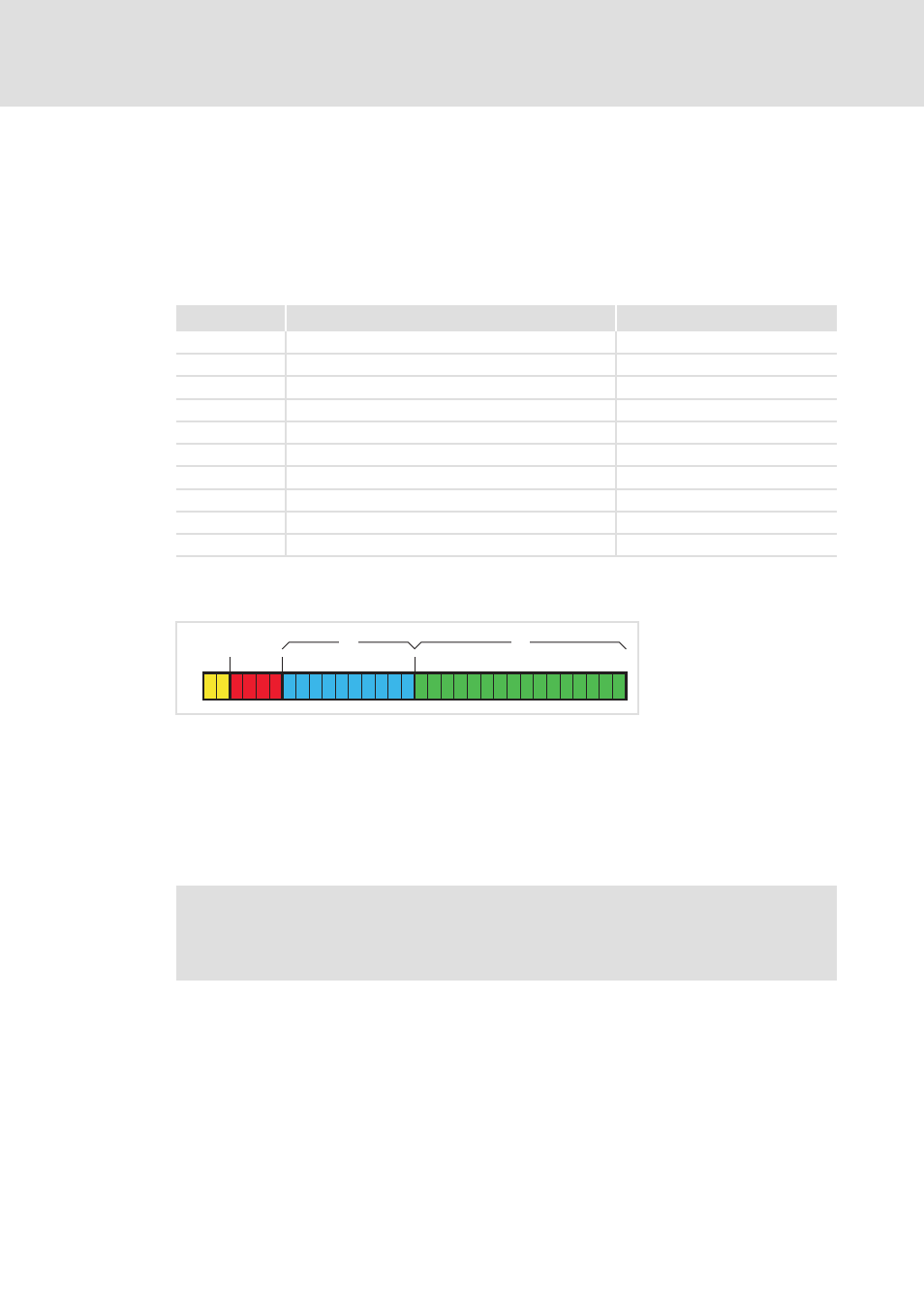

[11-1] Structure of the error number
 Bytes 29 ... 32 of the diagnostic message contain the error code of the Inverter Drive
8400.
 The logbook and standard device code C00165 show the error number in the following
syntax to improve the legibility:
[error type].[error subject area no.].[error ID]
Bytes Meaning Value [hex]
1 ... 6 Diagnostics block header 0x0010 001C 0100
7 ... 8 Alarm type 0x0001 (Diagnosis)
9 ... 12 API 0x0000 0000
13, 14 Slot number 0x0001 / 0x0002
15, 16 Subslot number 0x0001
17 ... 20 Module ID number ID according to module
21 ... 24 Submodule number ID according to module
25, 26 Alarm specifier 0xB000
27, 28 User structure identifier 0x0001
29 ... 32 Error code of the Inverter Drive 8400
A Reserved
B Error type
C Error subject area
D Error ID
2 1 0 3
Bit 16 25 26 31 0 15 29 30

Software manual/»Engineer« online help for the Inverter Drive 8400
Here you'll find detailed information on the structure and the contents of the
error codes.
